ATN TICO 6 640x512 Thermal Clip-On Monocular - 6th Gen, 3500m Detection
FREE Shipping!
Pairs well with

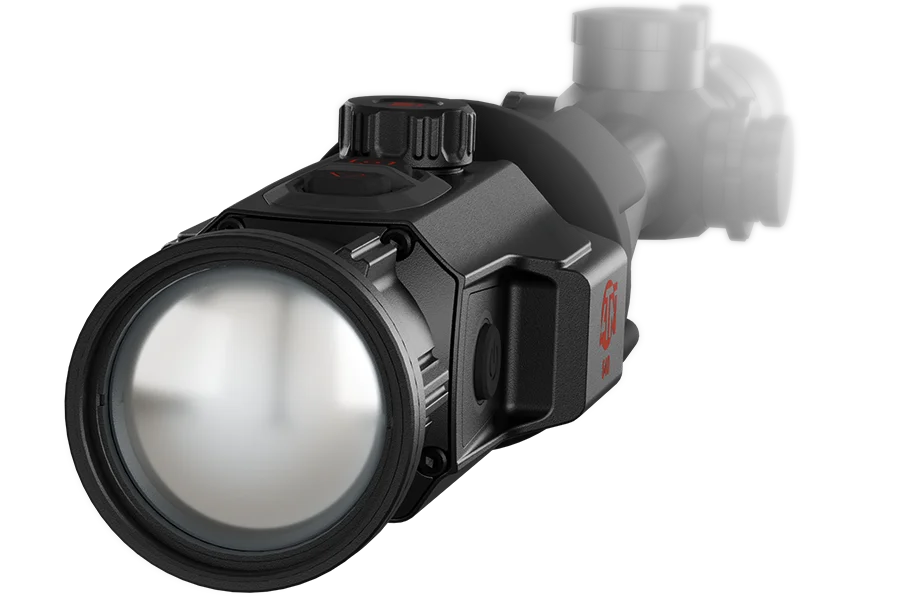

ATN TICO 6 640x512 Thermal Clip-On Monocular
Description
The ATN TICO 6 640x512 is a professional-grade thermal imaging clip-on system built around ATN's 6th Generation thermal engine, delivering elite detection capability up to 3,500 meters. Designed for hunters, law enforcement, SAR teams, and tactical operators, this device clips directly onto your existing daytime scope and instantly transforms it into a powerful night-vision thermal setup. With a 640x512 VOx uncooled focal plane array and a thermal sensitivity of 18mK NETD, it resolves the finest heat signatures through darkness, smoke, fog, and dense cover.
Beyond the clip-on role, the TICO 6 doubles as a standalone thermal monocular when paired with the optional eyepiece adapter - giving you two capable tools in one compact, field-ready package. Built-in Wi-Fi, 64 GB of internal storage, onboard video and audio recording, and ATN's SharpIR AI image enhancement round out a feature set that few thermal optics at any price can match.
Key Features
- 6th Generation Thermal Engine: ATN's most advanced thermal core delivers sharp, fast 50 Hz imaging with unmatched detail in total darkness or adverse conditions.
- 640x512 Sensor Resolution: High-resolution 12um VOx uncooled focal plane array with 18mK NETD thermal sensitivity for precise target identification at distance.
- 3,500m Detection Range: Identifies heat signatures at distances up to 3,500 meters - ideal for long-range hunting, border patrol, and perimeter security.
- SharpIR AI Image Enhancement: Real-time AI processing sharpens edges, boosts contrast, and refines detail in every frame so you can clearly identify game or threats before acting.
- Dual-Role: Clip-On and Monocular: Attaches to any daytime scope via QDM (Quick Detach Mount) or scope thread adapter; converts to a handheld thermal monocular with the optional eyepiece.
- 0.49" OLED Display, 1920x1080: Large, high-resolution OLED for crisp, vibrant imaging with smooth target tracking from dusk to dawn.
- 64 GB Internal Storage + RAV Recording: Records video and audio onboard with Recoil Activated Video (RAV) that automatically captures seconds before, during, and after the shot.
- Six Color Palettes: White Hot, Black Hot, Iron Red, Alarm, Green Hot, and Sepia - choose the best view for any terrain or mission environment.
- Hot Point Tracking: Automatically highlights the hottest object in the frame so you never lose focus on your target in cluttered or complex backgrounds.
- Built-in Wi-Fi and ATN Connect 6 App: Stream live video, manage your gallery, and transfer recordings to a phone or tablet instantly in the field.
- Replaceable 18650 Batteries + USB-C: Up to approximately 7 hours runtime on the 640x512 model using two included batteries; USB-C port for external power and data transfer.
Shipping
Ships free! Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.
What's Included
- ATN TICO 6 640x512 Thermal Clip-On Unit
- Quick Detach Mount (QDM)
- Wireless Remote Control
- Two 18650 Batteries
- Battery Charger
- USB-C Cable
- Carrying Pouch
- Rubber Scope Adapter
- Adhesive Tape
- Wrench
- TICO 6 User Manual
- Heating Target
Why You'll Love It
The ATN TICO 6 640x512 is engineered for hunters, professionals, and operators who demand the absolute best in thermal performance without replacing their existing optics. ATN has built a reputation trusted by serious sportsmen and field professionals nationwide, and the 6th Generation TICO 6 represents the pinnacle of that legacy. Whether you're glassing open fields for hogs before first light, running a search-and-rescue sweep across difficult terrain, or securing a perimeter at night, the TICO 6 delivers the clarity and confidence you need to act decisively. The combination of AI-enhanced imagery, long-range detection, onboard recording, and seamless app connectivity means you're not just buying a thermal optic - you're getting a complete situational awareness system. Lightweight and compact at just over a pound, it won't throw off your rifle's balance, and the intuitive 3-button control keeps you focused on the mission even in gloves or total darkness. Built for years of dependable use in the harshest conditions, the TICO 6 640x512 is a purchase you'll never second-guess.
Product Specifications
View Spec Chart
| SKU | TICO6650A |
|---|---|
| Detector Type | 12um VOx Uncooled Focal Plane Array |
| Sensor Resolution | 640x512 |
| Refresh Rate | 50 Hz |
| Thermal Sensitivity (NETD) | 18mK |
| SharpIR AI Enhancement | Yes |
| Non-Uniformity Correction (NUC) | Auto / Semi Auto / Manual |
| Lens System | 50 mm (Ge); F/1.0 |
| Field of View (HxV) | 8.8 x 7.0 degrees |
| Focus Mechanism | Manual, Front Lens Adjustment |
| Optical Magnification | 1x |
| Detection Range | 3500 m |
| Optimal Day Scope Magnification | 1-15x |
| Display | 0.49" OLED, 1920x1080 Resolution |
| Color Palettes | White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia |
| Internal Storage | 64 GB |
| Video / Audio Recording | Yes |
| Monocular Mode | Yes |
| Hot Point Tracking | Yes |
| Geomagnetic + Gyroscope | Yes |
| Recoil Activated Video (RAV) | Yes |
| Internal Gallery | Yes |
| Standby / Sleep Mode | Yes |
| Startup Time | Less than 7 seconds (instant from Standby) |
| Media Output | USB Type-C |
| Built-in Wi-Fi (Hotspot) | Yes |
| Wireless Remote Control | Yes (Included) |
| Battery Runtime | Approximately 7 hours total (two 18650 batteries) |
| Battery Type | Replaceable 18650 (x2 included) |
| Charging / Data Port | USB Type-C |
Manuals & Guides
FAQ
What is a thermal clip-on and how does it work?
A thermal clip-on mounts in front of your existing daytime rifle scope, converting it into a thermal night-vision optic without replacing or re-zeroing your scope. The TICO 6 attaches using the included Quick Detach Mount (QDM) and passes the thermal image through your scope's eyepiece. When you remove it, your scope returns to its normal daytime zero instantly.
Does the TICO 6 640x512 work as a standalone monocular?
Yes. With the optional eyepiece adapter, the TICO 6 converts from a clip-on into a fully functional handheld thermal monocular. This makes it a highly versatile dual-purpose tool - use it on your scope for precision shooting and detach it for scouting, scanning terrain, or reconnaissance on the move.
What scopes is the TICO 6 compatible with?
The TICO 6 is compatible with most standard day scopes. ATN recommends pairing it with scopes in the 1-15x magnification range for optimal performance. It attaches via the included QDM or via optional scope mounting systems available in 40mm, 44mm, and 50mm sizes to fit a wide variety of objective bell diameters.
How long does the battery last on the 640x512 model?
The TICO 6 640x512 provides approximately 7 hours of total runtime using the two included 18650 batteries (roughly 3.5 hours per battery). Batteries are field-swappable with no tools required, and you can also connect external power via the USB-C port for extended operations in the field.
What is Recoil Activated Video (RAV)?
RAV is ATN's automatic recording trigger that detects the recoil impulse when you fire and saves footage from seconds before, during, and after the shot - all without you pressing a button. This ensures you never miss capturing a harvest or a mission-critical moment even when fully focused on your target.
Does the TICO 6 require re-zeroing my rifle when attached or removed?
No. The TICO 6 is designed to clip on and off without affecting your existing scope's zero. The Quick Detach Mount allows for repeatable, secure attachment so your daytime zero is preserved every time you remove and reattach the unit.
