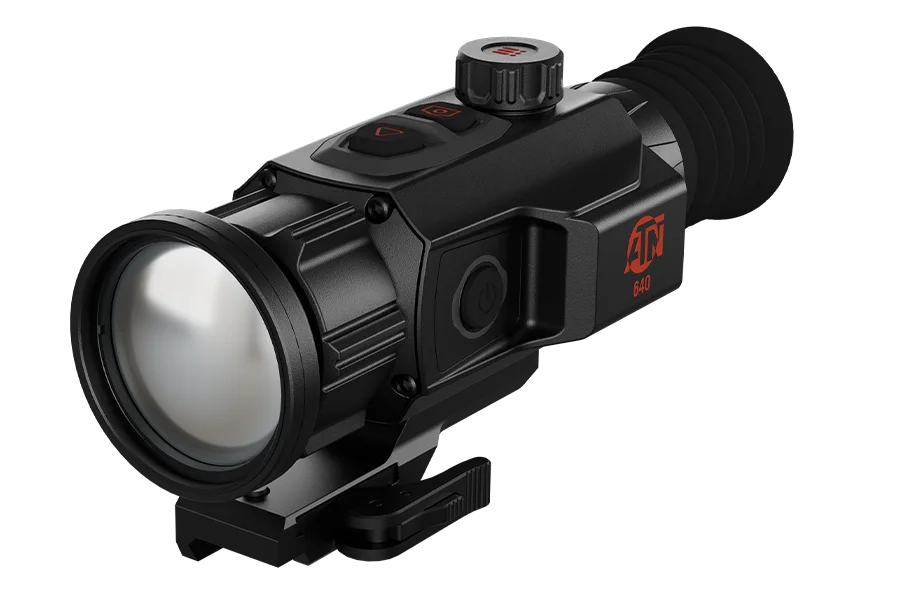

ATN ThOR 6 Mini 640x512 3-24x thermal scope front view
$3,495.00 USD
Guaranteed Lowest Price Online! - Find a lower price and we'll beat it!
Satisfaction Guaranteed | Need Help? Call (888)-884-2234

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

ATN ThOR 6 Mini Thermal Rifle Scope 640x512 | 3-24x


Description

The ATN ThOR 6 Mini 640x512 | 3-24x is a next-generation compact thermal rifle scope built for serious hunters who demand elite performance without the bulk. Powered by a high-sensitivity 12μm VOx uncooled focal plane array with a 640x512 resolution and thermal sensitivity of ≤18mK NETD, this scope delivers razor-sharp heat detection out to 3,500 meters - making it one of the most capable compact thermal optics on the market. Engineered from rugged magnesium alloy and weighing just 580g, it balances durability with a lightweight profile that won't fatigue you on long pursuits.

ATN's proprietary SharpIR© AI image enhancement processes every frame in real time, sharpening edges and maximizing target contrast so you can confidently ID hogs, coyotes, and predators in thick brush or open fields - day or night. With 64 GB of internal storage, built-in Wi-Fi, Recoil Activated Video (RAV), and a full Smart Precision Suite, the ThOR 6 Mini is as capable behind the trigger as it is in your hands.


Key Features

  • 640x512 Thermal Sensor: High-resolution detector with ≤18mK NETD thermal sensitivity for crisp target identification at up to 3,500 m detection range.
  • SharpIR© AI Image Enhancement: ATN's proprietary real-time AI processing sharpens edges and improves target contrast in cluttered, low-visibility environments.
  • 3-24x Magnification with 8x Digital Zoom: Wide-range zoom with step and smooth zoom modes - effective from close-range brush hunting to long-range precision shots.
  • 0.49" OLED Display (1920x1080): Full HD OLED screen delivers true blacks, vivid highlights, and fast response times to reduce eye fatigue on long hunts.
  • Recoil Activated Video (RAV): Automatically captures 10 seconds before and after every shot, saving kill footage without any button presses.
  • 64 GB Internal Storage + Wi-Fi: Record video and audio directly to the scope, then offload or stream live to a smartphone via the ATN Connect 6 app (iOS and Android).
  • 6 Color Palettes: White Hot, Black Hot, Iron Red, Alarm, Green Hot, and Sepia - each tuned for different terrain and lighting conditions.
  • Picture-in-Picture (PIP) Mode: Maintain a wide-view secondary window while zoomed in for precise targeting - never lose situational awareness.
  • Hot Point Tracking: Instantly highlights the hottest object in the field of view for faster target acquisition in dense or cluttered environments.
  • IP67 Waterproof / Magnesium Alloy Build: Fully weatherproof and built to handle 6,000 Joule recoil ratings across a wide -30°C to +55°C operating range.
  • Dual 18650 Batteries Included: ~7 hours of total runtime (approx. 3.5 hrs per battery) with hot-swap capability - no downtime in the field.
  • 5-Year Warranty: Backed by ATN's industry-leading 5-year warranty for long-term peace of mind.

Shipping

Ships free! Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.


What's Included

  • ATN ThOR 6 Mini 640x512 | 3-24x Thermal Scope
  • 2x 18650 Rechargeable Batteries
  • Charger
  • Picatinny Rail Mount
  • Carrying Pouch
  • USB Type-C Cable
  • Heating Target
  • User Manual

Why You'll Love It

The ATN ThOR 6 Mini 640x512 | 3-24x delivers professional-grade thermal imaging in a compact, field-ready package that serious hunters and predator control specialists can rely on night after night. With a detection range stretching to 3,500 meters and AI-powered SharpIR© clarity, you'll acquire targets faster and with more confidence than ever - whether you're on a guided hog hunt, running a predator call in open pasture, or tracking wounded game in dense timber. The fully sealed IP67 body and magnesium alloy frame ensure it holds up to whatever the field throws at it, season after season. Dual included batteries and a hot-swap design mean you never have to cut a hunt short over a dead scope. Backed by ATN's 5-year warranty and supported by the feature-rich ATN Connect 6 app, this scope is an investment in your success that keeps paying dividends. Trusted by hunters across North America, the ThOR 6 Mini is built for those who refuse to compromise.


Product Specifications

View Spec Chart
SKU TIWST6M650
Detector Type 12μm VOx Uncooled Focal Plane Array
Sensor Resolution 640x512
Refresh Rate 50 Hz
Thermal Sensitivity (NETD) ≤18mK
SharpIR© Yes
Non-Uniformity Correction (NUC) Auto / Semi Auto / Manual
Lens System 50 mm (Ge); F/1.0
Field of View (HxV) 8.8° x 7.0°
Focus Mechanism Manual, Front Lens Adjustment
Magnification 3-24x
Digital Zoom 1x, 2x, 4x, 8x
Zoom Type Step and Smooth Zoom
Detection Range 3500 m
Display 0.49" OLED, 1920x1080 Resolution
Picture-in-Picture (PIP) Yes
Reticle Types 10 Styles
Zeroing Freeze Yes
Color Palettes White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia
Eye Relief 50 mm
Diopter Range -5 to +5 D
Battery Type 18650 Rechargeable (qty 2 included)
Battery Life ~7 hrs total (~3.5 hr per battery)
External Power Yes, USB Type-C (5 VDC / 2A)
Internal Storage 64 GB
Video / Audio Recording Yes
Geomagnetic + Gyroscope Yes
Hot Point Tracking Yes
Reticle Transparency Control Yes
Internal Gallery Yes
Recoil Activated Video (RAV) Yes
Standby / Sleep Mode Yes
Startup Time Less than 7 seconds (instant from Standby)
Media Output USB Type-C
Built-in Wi-Fi Yes (Hotspot)
App ATN Connect 6 - iOS and Android
Material Magnesium Alloy
Mounting Picatinny Rail
Weight 580 g / 1.28 lbs
Dimensions (L x W x H) 200x65x65 mm (7.87x2.56x2.56 in)
Max Recoil Rating 6000 Joules / 1000g acceleration over 0.4 ms
Operating Temperature -30°C to +55°C (-22°F to 131°F)
Waterproof / IP Rating IP67
Warranty 5 Years
Assembly Required No - mounts to standard Picatinny rail
Shipping Method Ships in manufacturer box via standard parcel carrier

Manuals & Guides


FAQ

What makes the ATN ThOR 6 Mini 640x512 | 3-24x stand out for night hunting?

This scope combines a high-resolution 640x512 thermal sensor with ATN's SharpIR© AI image enhancement, delivering crisp, well-defined heat signatures even in complete darkness, heavy fog, or dense brush. The ≤18mK NETD thermal sensitivity means it picks up the faintest heat differential - like a coyote slipping through cover or a hog bedded in tall grass - well before you'd ever see it with a traditional night vision optic.

How does Recoil Activated Video (RAV) work?

RAV is an automatic recording feature that detects the recoil of your shot and saves a clip capturing up to 10 seconds before and 10 seconds after the moment of impact. You never need to press record - the scope does it for you. This means you'll always have footage of your most important shots without any distraction or fumbling with controls at the critical moment.

Can I use the ThOR 6 Mini with my smartphone?

Yes. The ThOR 6 Mini has a built-in Wi-Fi hotspot that connects directly to the free ATN Connect 6 app, available for both iOS and Android. No internet connection is required - just connect your phone to the scope's hotspot and use your device as a live viewfinder, replay footage, or let a hunting partner monitor the action in real time.

How long does the battery last and can I swap batteries in the field?

The 640x512 model delivers approximately 7 hours of total runtime using two included 18650 rechargeable batteries (roughly 3.5 hours per battery). The battery design is fully hot-swappable, so you can carry spares and replace them in seconds without heading back to camp. The scope also supports external power via USB Type-C (5V/2A) if you need to run it from a power bank.

What rifle platforms is this scope compatible with?

The ThOR 6 Mini mounts to any standard Picatinny rail and is rated to handle up to 6,000 Joules of recoil (1000g acceleration over 0.4 ms), making it compatible with everything from .223/5.56 varmint rifles to larger caliber hunting platforms. Always confirm your rifle's rail system and recoil characteristics before mounting any optic.

Is the ThOR 6 Mini waterproof?

Yes, the ThOR 6 Mini carries an IP67 waterproof rating, meaning it is fully protected against dust ingress and can withstand immersion in up to 1 meter of water for up to 30 minutes. Its magnesium alloy housing also operates reliably across an extreme temperature range of -30°C to +55°C (-22°F to 131°F), making it a true all-weather optic.
