ATN ThOR 6 Mini Thermal Rifle Scope 640x512 | 2-16x Magnification
FREE Shipping!
Pairs well with
ATN ThOR 6 Mini Thermal Rifle Scope 640x512 | 2-16x
Description

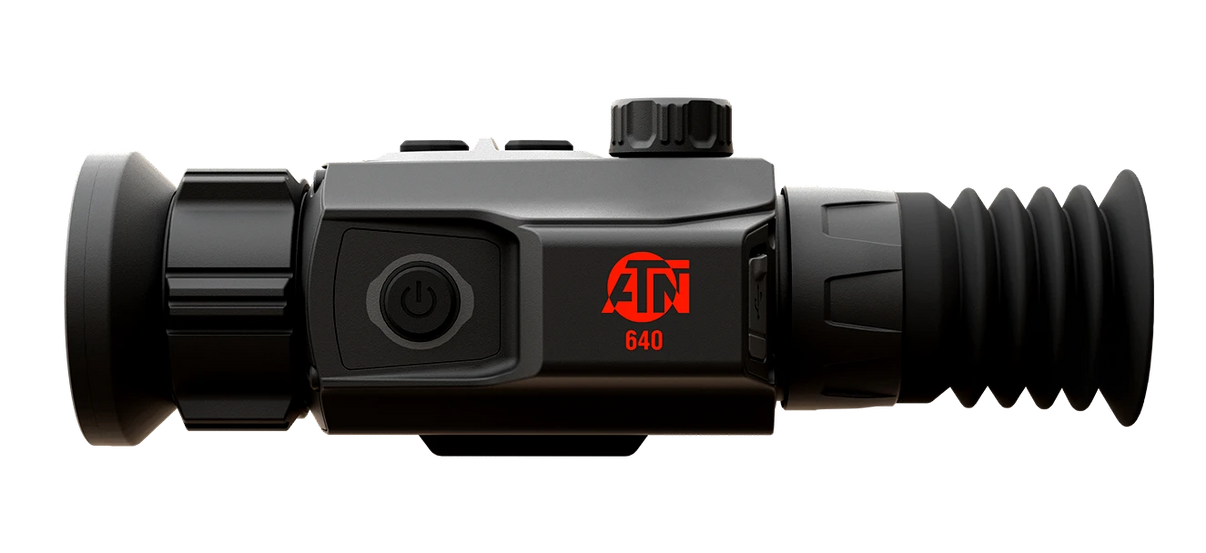

The ATN ThOR 6 Mini 640x512 is a next-generation compact thermal riflescope built for hunters who demand elite performance in a lightweight, field-ready package. Powered by a 12μm VOx uncooled focal plane array with a 640x512 sensor resolution and industry-leading thermal sensitivity of 18mK NETD, it delivers razor-sharp heat detection out to 3,000 meters. ATN's proprietary SharpIR AI image enhancement processes every frame in real time, sharpening edge definition and boosting target contrast so you can identify heat signatures in the most cluttered, low-visibility environments.
Built from rugged magnesium alloy and weighing just 540 grams, the ThOR 6 Mini packs a full suite of smart hunting features - including Recoil Activated Video, Picture-in-Picture mode, Hot Point Tracking, and built-in Wi-Fi - into one of the most compact thermal optics on the market. Whether you are running hogs at midnight, calling coyotes in dense brush, or scouting wide-open fields before dawn, this scope gives you the clarity, control, and confidence to own the night.
Key Features
- 640x512 Thermal Sensor: High-resolution VOx uncooled focal plane array with a 12μm pixel pitch delivers crisp, detailed thermal imagery at extended ranges up to 3,000 meters.
- 18mK NETD Thermal Sensitivity: Detects even the faintest heat signatures - like a bedded hog or a coyote slipping through fog - with exceptional contrast and definition.
- SharpIR AI Image Enhancement: ATN's proprietary AI algorithms sharpen edges and improve target contrast in real time for faster identification in cluttered or low-visibility terrain.
- 2-16x Magnification with 8x Digital Zoom: Step and smooth zoom with 1x, 2x, 4x, and 8x digital zoom steps for flexible close-range and long-range engagement.
- 0.49" OLED Display (1920x1080): True blacks, vibrant highlights, and fast response times reduce eye fatigue and help you lock onto targets faster in any condition.
- Recoil Activated Video (RAV): Automatically captures up to 10 seconds before and after the shot - no button presses required - with 64 GB of internal storage and a built-in microphone.
- Picture-in-Picture (PIP) Mode: Zoom in on a target with a secondary wide-view window active simultaneously, keeping situational awareness while lining up a precise shot.
- Hot Point Tracking: Instantly highlights the hottest object in the field of view for faster target acquisition in low-contrast or cluttered environments.
- 18650 Rechargeable Battery System: Two 18650 batteries included, delivering approximately 7 hours of total runtime with a quick-swap replaceable design ideal for all-night hunts.
- IP67 Waterproof / Magnesium Alloy Body: Fully weather-sealed and built from lightweight magnesium alloy, rated for operation from -30C to +55C and a max recoil of 6,000 joules.
- Built-in Wi-Fi + ATN Connect 6 App: Connects wirelessly to iOS or Android devices for live streaming, remote viewing, and footage review - no cables or internet required.
- 5-Year Warranty: Backed by ATN's industry-leading 5-year warranty for long-term confidence in the field.
Shipping
Ships free! Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.
What's Included
- ATN ThOR 6 Mini 640x512 | 2-16x Thermal Riflescope
- 2x 18650 Rechargeable Batteries
- Battery Charger
- Picatinny Rail Mount
- USB Type-C Cable
- Carrying Pouch
- Lens Cloth / Cleaning Accessories
- User Manual
- Heating Target (for zeroing)
Why You'll Love It
The ATN ThOR 6 Mini 640x512 brings flagship-grade thermal performance to a compact, carry-anywhere form factor that serious hunters will appreciate the moment they pick it up. Trusted by predator hunters and hog hunters across the country, it is engineered with the kind of cutting-edge ATN technology - SharpIR AI processing, RAV, PIP, and Hot Point Tracking - that was once reserved for much larger and more expensive optics. The lightweight magnesium alloy body and IP67 waterproof rating mean it can handle whatever the field throws at it, season after season. The intuitive 3-button control layout lets you navigate menus quickly even with gloves on in the dark, and the Wi-Fi connectivity opens up powerful options for coaching new hunters or reviewing footage at camp. With a 5-year warranty backing every unit, this is a thermal scope built for long-term investment and dependable performance on every hunt.
Product Specifications
View Spec Chart
| SKU | TIWST6M635 |
|---|---|
| Detector Type | 12μm VOx Uncooled Focal Plane Array |
| Sensor Resolution | 640x512 |
| Refresh Rate | 50 Hz |
| Thermal Sensitivity (NETD) | 18mK |
| SharpIR AI Enhancement | Yes |
| Non-Uniformity Correction (NUC) | Auto / Semi Auto / Manual |
| Lens System | 35 mm (Ge); F/1.0 |
| Field of View (HxV) | 12.5 x 10.0 degrees |
| Focus Mechanism | Manual, Front Lens Adjustment (Digital Focus Ring) |
| Magnification | 2-16x |
| Digital Zoom | 1x, 2x, 4x, 8x |
| Zoom Type | Step and Smooth Zoom |
| Detection Range | 3,000 m |
| Display | 0.49" OLED, 1920x1080 Resolution |
| Picture-in-Picture (PIP) | Yes |
| Reticle Types | 10 Styles |
| Zeroing Freeze | Yes |
| Color Palettes | White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia |
| Eye Relief | 50 mm |
| Diopter Range | -5 to +5 D |
| Battery Type | 18650 Rechargeable (qty 2 included) |
| Battery Life | ~7 hours total (~3.5 hr per battery) |
| External Power Supply | Yes, USB Type-C (5 VDC / 2A) |
| Internal Storage | 64 GB |
| Video / Audio Recording | Yes |
| Geomagnetic + Gyroscope | Yes |
| Hot Point Tracking | Yes |
| Reticle Transparency Control | Yes |
| Internal Gallery | Yes |
| Recoil Activated Video (RAV) | Yes |
| Standby / Sleep Mode | Yes |
| Startup Time | Under 7 seconds (instant from Standby) |
| Media Output | USB Type-C |
| Built-in Wi-Fi (Hotspot) | Yes |
| App Compatibility | ATN Connect 6 - iOS and Android |
| Material | Magnesium Alloy |
| Mounting | Picatinny Rail |
| Weight | 540 g / 1.19 lbs |
| Dimensions (L x W x H) | 190x65x65 mm (7.48x2.56x2.56 in) |
| Max Recoil Rating | 6,000 Joules / 1,000g acceleration over 0.4 ms |
| Operating Temperature | -30C to +55C (-22F to 131F) |
| Waterproof / IP Rating | IP67 |
| Warranty | 5 Years |
| Assembly Required | No - mounts to Picatinny rail; no tools required for setup |
| Shipping Method | Ships standard parcel (ground or expedited); no freight required |
Manuals & Guides
FAQ
What makes the ATN ThOR 6 Mini 640x512 | 2-16x different from lower-resolution thermal scopes?
The 640x512 sensor provides significantly more thermal detail than 256x192 or 384x288 configurations - roughly 6.9x more pixels than the 256 model. This means you get crisper target outlines, better edge definition, and the ability to confidently identify and engage targets at much longer distances. Combined with 18mK NETD thermal sensitivity and SharpIR AI enhancement, the 640x512 model represents the top tier of the ThOR 6 Mini lineup for serious hunters and shooters.
What is Recoil Activated Video (RAV) and how does it work?
RAV is a smart recording feature that detects the physical recoil event when you fire your rifle and automatically saves a clip of 10 seconds before and 10 seconds after the shot. You never have to manually start or stop recording to capture your kill shot. The footage is saved directly to the 64 GB internal storage and can be transferred via USB-C. It is one of the most popular features among hog and predator hunters who want documentary proof of their hunts.
How long does the battery last and can I use external power?
The 640x512 model delivers approximately 7 hours of total runtime across the two included 18650 rechargeable batteries - roughly 3.5 hours per battery. Because the batteries are hot-swappable, you can carry spares and extend your hunt indefinitely. You can also run the scope directly from an external USB Type-C power source (5V/2A), such as a USB power bank, if you prefer continuous power on a fixed position or blind setup.
Is the ThOR 6 Mini compatible with the ATN app, and what can I do with it?
Yes - the ThOR 6 Mini has built-in Wi-Fi that creates a direct hotspot connection to the free ATN Connect 6 app on iOS or Android. No internet connection is required. Through the app you can use your phone or tablet as a live viewfinder, replay footage, adjust settings, and even share the live feed with a hunting partner. It is also a great tool for coaching new hunters on shot placement and target acquisition without them needing to look through the scope themselves.
What calibers and platforms is this scope rated for?
The ThOR 6 Mini 640x512 | 2-16x is rated for up to 6,000 joules of recoil energy with 1,000g acceleration over 0.4 ms - which covers virtually all standard rifle calibers including large magnum cartridges. It mounts to any standard Picatinny rail and is compatible with bolt-action rifles, semi-automatic platforms, and AR-style rifles commonly used for hog, predator, and big game hunting.
Is this scope waterproof? Can I use it in rain or wet conditions?
Yes. The ThOR 6 Mini carries an IP67 rating, meaning it is fully dust-tight and can withstand temporary immersion in water up to 1 meter for 30 minutes. In practical hunting use, this means you can confidently use it in heavy rain, dense fog, and wet brush without worrying about damage to the optic or electronics.
