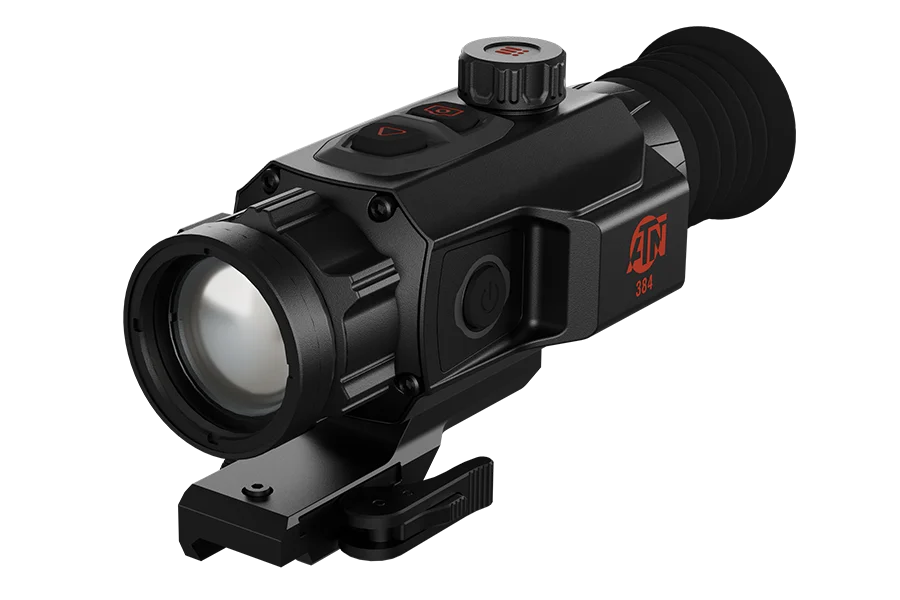

ATN ThOR 6 Mini Thermal Rifle Scope 384x288 | 3.5-28x
FREE Shipping!
Pairs well with
ATN ThOR 6 Mini Thermal Rifle Scope 384x288 | 3.5-28x
Description
The ATN ThOR 6 Mini 384x288 | 3.5-28x is a next-generation compact thermal rifle scope built for serious hunters who demand elite-level performance in a lightweight, field-ready package. Powered by a 12µm VOx Uncooled Focal Plane Array sensor with a thermal sensitivity of ≤18mK NETD, it reveals the faintest heat signatures - whether you're scanning wide-open fields for hogs or tracking coyotes through dense brush at last light. The 3.5-28x magnification range with 8x digital zoom gives you the flexibility to engage targets from close quarters all the way out to 2,710 meters detection range.
ATN's proprietary SharpIR© AI-image enhancement processes imagery in real time, delivering sharper edge definition, better target contrast, and faster identification - even in cluttered, low-visibility environments. Built from rugged magnesium alloy and rated IP67, the ThOR 6 Mini is engineered to perform in the harshest hunting conditions, night after night.
Key Features
- 384x288 Sensor Resolution: 12µm VOx Uncooled Focal Plane Array with ≤18mK NETD thermal sensitivity for crisp, high-contrast detection of even the faintest heat signatures.
- 3.5-28x Magnification with 8x Digital Zoom: Step and smooth zoom options cover engagements from close range to a 2,710 m detection range with no loss of situational awareness.
- SharpIR© AI-Image Enhancement: ATN's proprietary real-time AI processing sharpens edges and boosts target contrast for faster identification in brush, fog, or cluttered terrain.
- 0.49" OLED Display (1920x1080): High-resolution OLED delivers true blacks, vibrant highlights, and fast response times to reduce eye fatigue and accelerate target acquisition.
- Recoil Activated Video (RAV): Automatically records 10 seconds before and after recoil - capturing your kill shot hands-free without ever lifting an eye from the target.
- 64 GB Internal Storage + Wi-Fi: Save photos and video directly to the scope and stream live footage to a smartphone or tablet via the ATN Connect 6 app (iOS & Android), no internet required.
- 6 Color Palettes: White Hot, Black Hot, Iron Red, Alarm, Green Hot, and Sepia modes let you tailor thermal contrast to match any terrain or lighting condition.
- Picture-in-Picture (PIP) & Hot Point Tracking: Zoom in for precision while keeping a wide-view window active; instantly highlights the hottest object in your field of view for rapid target acquisition.
- 18650 Rechargeable Battery System (x2 included): Approximately 7 hours of total runtime with two swappable 18650 batteries - ideal for long hunts or extended overnight setups.
- IP67 Waterproof | Magnesium Alloy Body | 540 g: Rugged, lightweight construction rated for full water submersion and a max recoil rating of 6,000 Joules.
- 5-Year Warranty: Backed by ATN's industry-leading 5-year warranty for long-term confidence in the field.
Shipping
Ships free! Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.
What's Included
- ATN ThOR 6 Mini 384x288 | 3.5-28x Thermal Scope
- 2x 18650 Rechargeable Batteries
- Generation 6 Charger
- Picatinny Rail Mount
- BH Cable
- Heating Target
- ThOR 6 Carrying Pouch
- User Manual
Why You'll Love It
The ATN ThOR 6 Mini punches far above its weight class, delivering professional-grade thermal imaging in a compact form factor that won't slow you down in the field. Trusted by hunters and sportsmen across the country, ATN's 6th-generation thermal platform brings military-inspired technology to the hands of everyday hunters at a price that makes sense. The combination of SharpIR© AI enhancement, RAV automatic video capture, and built-in Wi-Fi means you're not just hunting smarter - you're documenting every moment without missing a beat. The lightweight magnesium alloy housing keeps your rifle balanced and maneuverable, whether you're hiking into a hog-infested creek bottom or holding still in a deer stand for hours. With a 5-year warranty and ATN's reputation for innovation, this scope is a long-term investment in your hunting success. Own the night, season after season.
Product Specifications
View Spec Chart
| SKU | TIWST6M335 |
|---|---|
| Detector Type | 12µm VOx Uncooled Focal Plane Array |
| Sensor Resolution | 384x288 |
| Refresh Rate | 50 Hz |
| Thermal Sensitivity (NETD) | ≤18mK |
| SharpIR© | Yes |
| Non-Uniformity Correction (NUC) | Auto / Semi Auto / Manual |
| Lens System | 35 mm (Ge); F/1.0 |
| Field of View (HxV) | 7.5° x 5.7° |
| Focus Mechanism | Manual, Front Lens Adjustment |
| Magnification | 3.5-28x |
| Digital Zoom | 1x, 2x, 4x, 8x |
| Zoom Type | Step & Smooth Zoom |
| Detection Range | 2710 m |
| Display | 0.49" OLED, 1920x1080 Resolution |
| Picture-in-Picture (PIP) | Yes |
| Reticle Types | 10 Styles |
| Zeroing Freeze | Yes |
| Color Palettes | White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia |
| Eye Relief | 50 mm |
| Diopter Range | -5 to +5 D |
| Battery Type | 18650 Rechargeable (qty 2 included) |
| Battery Life | ~7 hrs total (~3.5 hr per battery) |
| External Power | Yes, USB Type-C (5 VDC / 2A) |
| Internal Storage | 64 GB |
| Video / Audio Recording | Yes |
| Geomagnetic + Gyroscope | Yes |
| Hot Point Tracking | Yes |
| Reticle Transparency Control | Yes |
| Internal Gallery | Yes |
| Recoil Activated Video (RAV) | Yes |
| Standby / Sleep Mode | Yes |
| Startup Time | <7 seconds (instant from Standby) |
| Media Output | USB Type-C |
| Built-in Wi-Fi (Hotspot) | Yes |
| App Compatibility | ATN Connect 6 - iOS & Android |
| Material | Magnesium Alloy |
| Mounting | Picatinny Rail |
| Weight | 540 g / 1.19 lbs |
| Dimensions (L x W x H) | 190x65x65 mm (7.48x2.56x2.56 in) |
| Max Recoil Rating | 6000 Joules / 1000g acceleration over 0.4 ms |
| Operating Temperature | -30°C to +55°C (-22°F to 131°F) |
| Waterproof / IP Rating | IP67 |
| Warranty | 5 Year |
| Assembly Required | No - mounts directly to Picatinny rail |
| Shipping Method | Ships in standard box via ground or expedited carrier |
Manuals & Guides
FAQ
What is the difference between the 384x288 and 256x192 ThOR 6 Mini models?
The 384x288 sensor provides significantly higher resolution and better thermal sensitivity (≤18mK NETD vs. ≤20mK NETD) compared to the 256x192 model. In practical terms, you'll see more detail, better target contrast, and a longer detection range (2,710 m vs. up to 1,500 m). The 384x288 also features a larger 0.49" OLED display at 1920x1080 resolution, compared to the 0.32" 800x600 display on the 256 model.
Does the ATN ThOR 6 Mini 384x288 | 3.5-28x work on any rifle?
Yes - it mounts to any standard Picatinny rail, which is the most common mounting system on modern rifles. It is rated for recoil up to 6,000 Joules, making it compatible with most hunting calibers including high-powered centerfire rifles. Always verify your specific rifle's rail compatibility before mounting.
How does the Recoil Activated Video (RAV) feature work?
RAV uses the scope's built-in sensors to detect the moment of recoil and automatically saves a clip that includes up to 10 seconds before and 10 seconds after the shot. You don't need to press any button - the scope captures the critical moment hands-free, so you stay focused on the hunt. Footage is saved directly to the 64 GB internal storage.
Can I use the ATN ThOR 6 Mini with my smartphone?
Yes. The ThOR 6 Mini has built-in Wi-Fi that creates a direct hotspot connection to your smartphone or tablet - no internet required. Using the ATN Connect 6 app (available for iOS and Android), you can use your phone as a live viewfinder, review footage, and share content. It's also a great tool for coaching new hunters without them needing to be behind the gun.
How long does the battery last, and can I swap batteries in the field?
The 384x288 model delivers approximately 7 hours of total runtime across two included 18650 rechargeable batteries (roughly 3.5 hours per battery). The battery design allows for fast field swaps in seconds, so you can carry spares for all-night hunts or extended setups. The scope also supports USB Type-C external power (5V/2A) if you prefer to run off a power bank.
Is the ThOR 6 Mini waterproof?
Yes. The ATN ThOR 6 Mini carries an IP67 waterproof rating, meaning it is fully protected against dust and can withstand submersion in up to 1 meter of water for 30 minutes. It is also rated for operation in temperatures from -30°C to +55°C (-22°F to 131°F), making it suitable for hunting in rain, snow, fog, and extreme cold.
