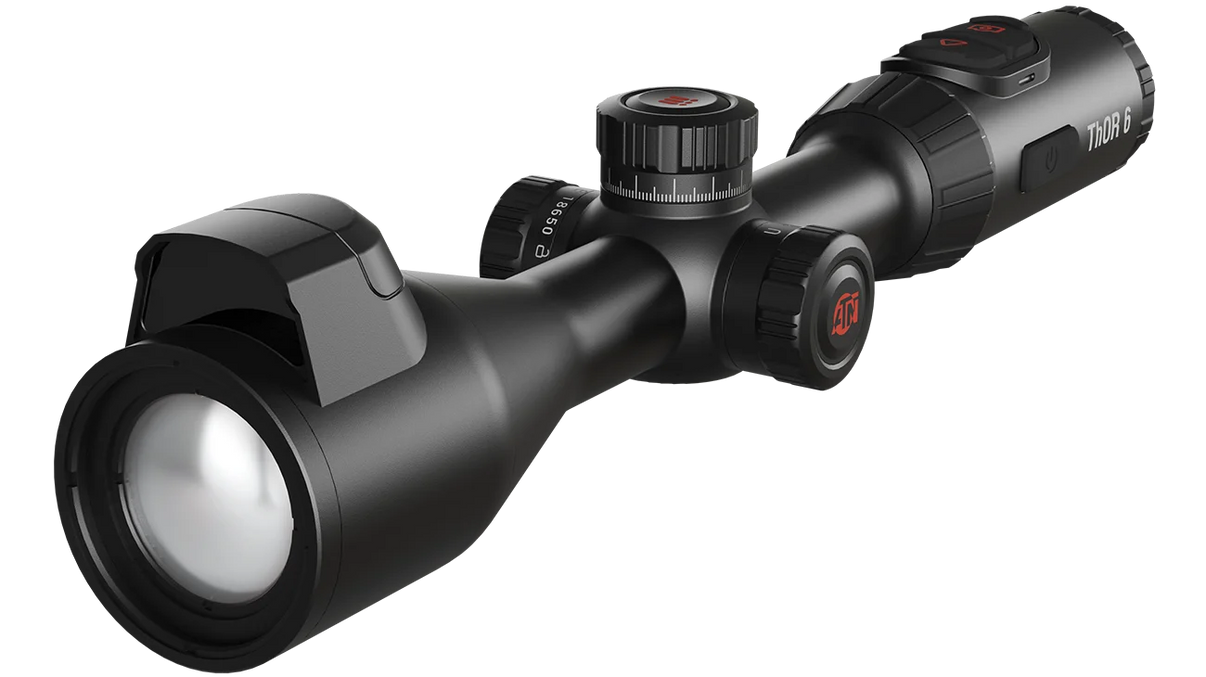

ATN ThOR 6 LRF Thermal Rifle Scope 384x288 3.5-28x with Laser Rangefinder
FREE Shipping!
Pairs well with
ATN ThOR 6 LRF Thermal Rifle Scope 384x288 3.5-28x with Laser Rangefinder
Description
The ATN ThOR 6 LRF is a 6th Generation elite thermal rifle scope engineered for hunters and shooters who demand the sharpest edge in the field. Built around a 384x288 VOx uncooled focal plane array with ultra-sensitive 15mK NETD and a 12-micron pixel pitch, this scope captures heat signatures others simply miss - whether you're glassing coyotes at last light or tracking hogs through heavy cover. The built-in laser rangefinder delivers instant, accurate distance readings to 1,000 meters without any extra gear, and the integrated ballistic calculator automatically compensates for range and angle so your shot is always dialed in.
ATN's proprietary SharpIR AI image enhancement processes every frame in real time, delivering defined edges and high-contrast targets even in dense brush, fog, or total darkness. The 0.49-inch Full-HD OLED display, 64 GB of internal storage, built-in Wi-Fi, and Recoil Activated Video make this scope as capable behind a screen as it is behind a trigger. At under 2 lbs in a magnesium alloy housing rated IP67, the ThOR 6 LRF is built for the long haul.
Key Features
- 6th Gen 384x288 Thermal Sensor: 12-micron VOx uncooled focal plane array with 15mK NETD ultra-sensitive thermal sensitivity for detecting faint heat signatures through brush, fog, and darkness.
- Built-In Laser Rangefinder (LRF): Integrated 905 nm Class 1 eye-safe laser rangefinder measures distance to 1,000 m with +/-1 m accuracy - no external devices needed.
- SharpIR AI Image Enhancement: ATN's proprietary AI-powered processing improves edge definition and target contrast in real time for sharper, more identifiable heat signatures.
- Ballistic Calculator with 6 Profiles: Automatically adjusts reticle for range and angle; store up to 6 custom profiles and swap between rifles without re-zeroing (LRF models only).
- 3.5-28x Magnification with 8x Digital Zoom: Step and smooth zoom with 1x, 2x, 4x, and 8x digital zoom stages for flexible target acquisition from close brush to 2,750 m detection range.
- Full-HD OLED Display: 0.49-inch 1920x1080 OLED screen with deep blacks, bright highlights, and fast refresh rates for a clear, immersive viewing experience.
- Recoil Activated Video (RAV) + 64 GB Storage: Automatically captures 10 seconds before and after the shot; 64 GB internal storage with built-in microphone records video and audio with no SD card required.
- Built-In Wi-Fi + ATN Connect 6 App: Pairs with iOS and Android via the ATN Connect 6 app for live view, shot replay, media management, and AI-powered device guidance.
- Hot Point Tracking & Picture-in-Picture (PIP): Instantly highlights the hottest object in the field of view; PIP mode keeps wide awareness while zooming in for precise target lock.
- ~9-Hour Battery Life, IP67 Waterproof, 5-Year Warranty: Dual replaceable 18650 batteries, magnesium alloy housing, IP67 waterproof rating, and 6,000-joule recoil rating for all-weather, all-platform durability.
Shipping
Ships free! Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.
What's Included
- ATN ThOR 6 LRF 384x288 | 3.5-28x Thermal Scope
- 2 x 18650 Rechargeable Batteries
- Battery Charger
- USB-C Cable
- Carrying Pouch
- Heating Target
- ThOR 6 User Manual
Why You'll Love It
The ATN ThOR 6 LRF represents the pinnacle of American-engineered thermal optics, trusted by hunters, guides, and professionals who won't compromise on performance. Whether you're running predator calls at 2 AM or managing a hog population on a large property, this scope gives you the decisive advantage - seeing clearly when nothing else can. The all-in-one design means no extra rangefinder clipped to your belt, no ballistic app to fumble with in the dark, and no missed shot because of equipment complexity. With five years of warranty coverage and a magnesium alloy chassis rated for 6,000 joules of recoil, this optic is engineered to outlast seasons and platforms. The ATN Connect 6 app with its built-in AI assistant means you're never without expert guidance, even deep in the field. For serious hunters and tactical shooters who demand elite performance in one compact, rugged package, the ThOR 6 LRF is the definitive choice.
Product Specifications
View Spec Chart
| SKU | TIWST6335LRF |
|---|---|
| Detector Type | 12-micron VOx Uncooled Focal Plane Array |
| Sensor Resolution | 384x288 |
| Refresh Rate | 50 Hz |
| Thermal Sensitivity (NETD) | 15mK |
| SharpIR AI Enhancement | Yes |
| Non-Uniformity Correction (NUC) | Auto / Semi Auto / Manual |
| Lens System | 35 mm (Ge); F/1.0 |
| Field of View (H x V) | 7.53 x 5.65 degrees |
| Focus Mechanism | Manual, Central Knob Control |
| Magnification | 3.5-28x |
| Digital Zoom | 1x, 2x, 4x, 8x |
| Zoom Type | Step and Smooth Zoom |
| Detection Range | 2,750 m |
| Display | 0.49" OLED, 1920x1080 Resolution |
| Eye Relief | 50 mm |
| Diopter Range | -5 to +5 D |
| Picture-in-Picture (PIP) | Yes |
| Reticle Types | 10 Styles |
| Reticle Transparency Control | Yes |
| Zeroing Freeze | Yes |
| Color Palettes | White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia |
| Battery Type | 1 x 18650 Internal + 1 x 18650 Rechargeable Replaceable |
| Battery Life | ~9 hours |
| External Power | Yes, USB Type-C (5 VDC / 2A) |
| Startup Time | Under 7 seconds (instant from Standby) |
| Internal Storage | 64 GB |
| Video / Audio Recording | Yes |
| Recoil Activated Video (RAV) | Yes |
| Media Output | USB Type-C |
| Built-in Wi-Fi (Hotspot) | Yes |
| App Compatibility | ATN Connect 6 - iOS and Android |
| Built-in Laser Rangefinder | Yes |
| LRF Range | 1,000 m |
| LRF Accuracy | +/-1 m |
| LRF Laser | 905 nm, Class 1 Eye-Safe |
| Ballistic Calculator | Yes (up to 6 profiles) |
| Hot Point Tracking | Yes |
| Geomagnetic + Gyroscope | Yes |
| Material | Magnesium Alloy |
| Mounting | 30 mm Rings (not included) |
| Weight | 830 g / 1.83 lbs |
| Dimensions (L x W x H) | 430 x 85 x 72 mm (16.93 x 3.35 x 2.83 in) |
| Max Recoil Rating | 6,000 Joules / 1,000g acceleration over 0.4 ms |
| Operating Temperature | -30C to 55C (-22F to 131F) |
| Waterproof / IP Rating | IP67 |
| Assembly Required | No - mounts to standard 30 mm rings (not included) |
| Shipping Method | Standard parcel shipping |
| Warranty | 5 Year |
Manuals & Guides
FAQ
What is the difference between the ThOR 6 LRF and the standard ThOR 6?
The ThOR 6 LRF adds a built-in 905 nm Class 1 eye-safe laser rangefinder that measures distance up to 1,000 m with +/-1 m accuracy. It also includes the integrated ballistic calculator with up to 6 custom profiles, which is only available on LRF models. These features allow for instant range-compensated shots without any external devices or apps.
What is the detection range of the 384x288 model?
The ATN ThOR 6 LRF 384x288 | 3.5-28x has a detection range of 2,750 meters. This is the maximum range at which the sensor can detect a heat signature under ideal conditions. Identification and engagement ranges will vary based on target size, environmental conditions, and magnification used.
Can I record video and share footage from this scope?
Yes. The ThOR 6 LRF features 64 GB of internal storage with built-in video and audio recording, including Recoil Activated Video (RAV) that automatically captures 10 seconds before and after each shot. You can review footage on the internal gallery, transfer files via USB-C, or connect to the ATN Connect 6 app via Wi-Fi to view a live feed or share clips from your smartphone.
Does the ballistic calculator work automatically with the rangefinder?
Yes. When using the built-in LRF, the ballistic calculator automatically receives the range data and adjusts your reticle holdover for the shot. You can store up to 6 custom ballistic profiles for different rifles or loads, and the system also accounts for angle shooting. This eliminates manual calculations and lets you focus entirely on the hunt.
What batteries does the ThOR 6 LRF use, and how long do they last?
The scope runs on two 18650 rechargeable batteries - one internal and one user-replaceable. Runtime is approximately 9 hours of continuous use. The replaceable battery design means you can carry spare 18650 cells and hot-swap in the field during long hunts or overnight setups. The scope also supports external power via the USB Type-C port (5 VDC / 2A).
Is the ThOR 6 LRF waterproof?
Yes. The ATN ThOR 6 LRF carries an IP67 waterproof rating, meaning it is fully protected against dust ingress and can withstand temporary immersion in water. It is also rated for operation from -30 degrees C to 55 degrees C, making it suitable for hunting in harsh cold-weather conditions as well as hot summer nights.
What rings or mounts does the ThOR 6 LRF require?
The ThOR 6 LRF uses standard 30 mm scope rings, which are not included with the scope. Any quality 30 mm rings rated for your caliber's recoil level will work. ATN rates this scope to handle up to 6,000 joules of recoil, so it is compatible with a wide range of centerfire platforms from AR-style rifles to heavy bolt-actions.
