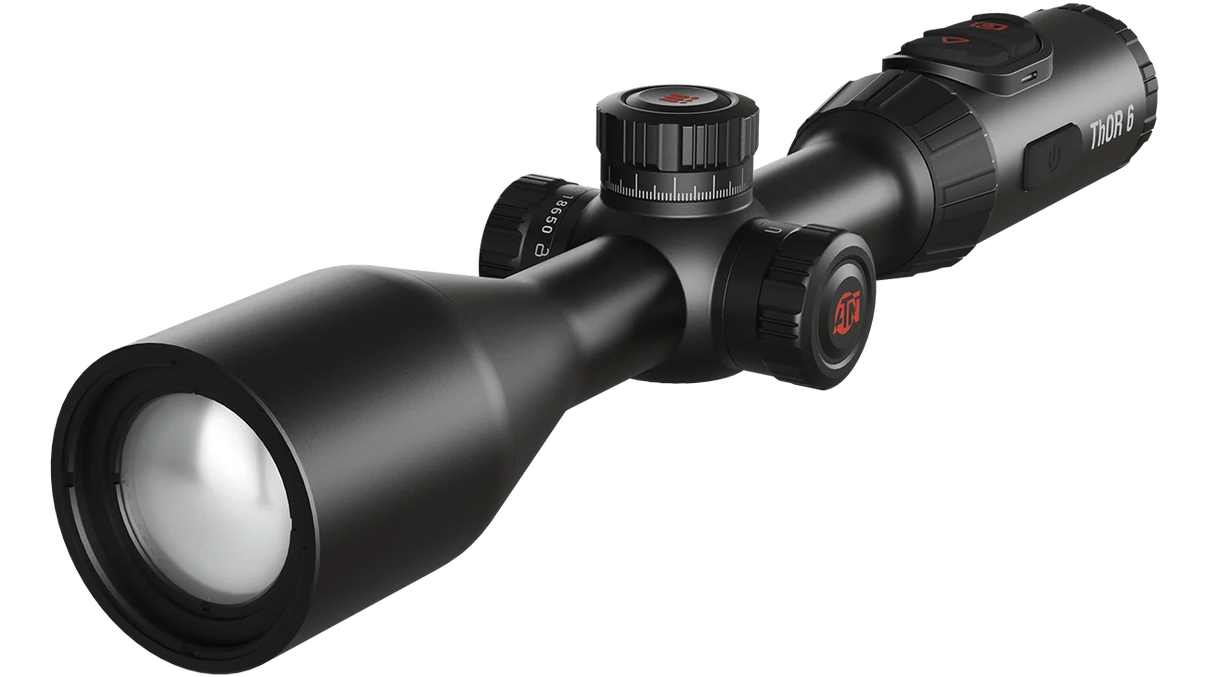

ATN ThOR 6 Elite Thermal Rifle Scope 640x512 | 2-16x
FREE Shipping!
Pairs well with
ATN ThOR 6 Elite Thermal Rifle Scope 640x512 | 2-16x
Description
The ATN ThOR 6 640x512 | 2-16x is a 6th Generation elite thermal rifle scope engineered for hunters and shooters who demand the highest level of performance in the field. Built around a 640x512 resolution VOx uncooled focal plane array with an ultra-sensitive thermal sensitivity of 15mK NETD and a 12-micron pixel pitch, this scope captures the faintest heat signatures through total darkness, dense brush, and foggy conditions. ATN's proprietary SharpIR AI-image enhancement processes the thermal feed in real time, delivering sharper edges, greater target contrast, and faster identification even in cluttered environments.
Packed with smart hunting tools including Picture-in-Picture zoom, Hot Point Tracking, Zeroing Freeze, Recoil Activated Video, and built-in Wi-Fi via the ATN Connect 6 app, the ThOR 6 is a complete digital hunting system in a single, lightweight magnesium alloy package. Whether you are running hogs on a Texas ranch, calling coyotes in the dead of winter, or glassing open terrain at last light, the ThOR 6 gives you the clarity, confidence, and control to make every shot count.
Key Features
- 640x512 Sensor Resolution: 6th Gen 12-micron VOx uncooled focal plane array delivers exceptional thermal detail and long-range target detection up to 3,100 meters.
- Ultra-Sensitive NETD (15mK): Detects the faintest heat signatures through brush, fog, and total darkness - ideal for coyote, hog, and predator hunting.
- SharpIR AI-Image Enhancement: ATN's proprietary real-time AI processing sharpens edges and improves target contrast for faster, more confident identification.
- 2-16x Magnification with 8x Digital Zoom: Step and smooth zoom lets you range from wide situational awareness to pinpoint target engagement without repositioning.
- 0.49" Full-HD OLED Display (1920x1080): Premium OLED delivers deeper blacks, brighter highlights, and faster response times for an immersive, low-fatigue viewing experience.
- Recoil Activated Video (RAV): Automatically saves up to 10 seconds before and after recoil so you never miss a shot - hands-free and built into the scope.
- Picture-in-Picture (PIP) Mode: Zoom in on a target while maintaining a full-field wide-angle view, giving you precision and situational awareness simultaneously.
- Hot Point Tracking: Instantly highlights the hottest object in your field of view for rapid target acquisition - critical when every second counts.
- 64 GB Internal Storage with Wi-Fi & ATN Connect 6 App: Record video and audio onboard, then stream live to your phone or tablet with no cables or internet needed.
- Replaceable 18650 Battery System (~9 hrs): Dual 18650 batteries deliver all-day runtime with a field-swappable design - no hunt cut short by a dead battery.
- IP67 Waterproof | Magnesium Alloy Housing: Built to survive the worst weather with a rugged, lightweight chassis weighing only 1.83 lbs and rated to 6,000 Joules recoil.
- 5-Year Warranty: ATN backs the ThOR 6 with an industry-leading 5-year warranty for long-term peace of mind.
Shipping
Ships free! Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.
What's Included
- ATN ThOR 6 640x512 | 2-16x Thermal Scope
- 2 x 18650 Rechargeable Batteries
- Generation 6 Charger
- USB Type-C Cable
- Thor 6 Carrying Pouch
- Heating Target (for zeroing)
- Thor 6 User Manual
Why You'll Love It
The ATN ThOR 6 640x512 | 2-16x represents the pinnacle of modern thermal optics - trusted by serious hunters, predator callers, and professional shooters who refuse to compromise on performance. Built in the USA with 6th Generation thermal sensor technology, it's engineered for years of dependable use across the toughest field conditions imaginable. The combination of AI-driven image sharpening, instant shot recording, and seamless smartphone connectivity means you get more than just a scope - you get a complete digital hunting platform that grows smarter with every use. Whether you're guiding a new hunter through proper shot placement via the live Wi-Fi feed or reviewing herd behavior on the internal gallery after a long night in the stand, the ThOR 6 delivers value that goes far beyond the trigger pull. With a 5-year warranty, IP67 weatherproofing, and a magnesium alloy housing rated for 6,000 Joules of recoil, this scope is built to handle the demands of daily field use season after season. If you're serious about thermal hunting, the ATN ThOR 6 is the optic that matches your ambition.
Product Specifications
View Spec Chart
| SKU | TIWST6635A |
|---|---|
| Detector Type | 12-micron VOx Uncooled Focal Plane Array |
| Sensor Resolution | 640x512 |
| Refresh Rate | 50 Hz |
| Thermal Sensitivity (NETD) | 15mK |
| SharpIR AI Enhancement | Yes |
| Non-Uniformity Correction (NUC) | Auto / Semi Auto / Manual |
| Lens System | 35 mm (Ge); F/1.0 |
| Field of View (H x V) | 12.52 x 9.41 degrees |
| Focus Mechanism | Manual, Central Knob Control |
| Magnification | 2-16x |
| Digital Zoom | 1x, 2x, 4x, 8x (Step and Smooth) |
| Detection Range | 3,100 m |
| Display | 0.49" OLED, 1920x1080 Resolution |
| Eye Relief | 50 mm |
| Diopter Range | -5 to +5 D |
| Picture-in-Picture (PIP) | Yes |
| Reticle Types | 10 Styles |
| Reticle Transparency Control | Yes |
| Zeroing Freeze | Yes |
| Color Palettes | White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia |
| Battery Type | 1 x 18650 (Internal) + 1 x 18650 Rechargeable (Replaceable) |
| Battery Life | ~9 hours |
| External Power | Yes - USB Type-C (5 VDC / 2A) |
| Startup Time | Under 7 seconds (instant from Standby) |
| Internal Storage | 64 GB |
| Video / Audio Recording | Yes |
| Recoil Activated Video (RAV) | Yes |
| Media Output | USB Type-C |
| Built-in Wi-Fi (Hotspot) | Yes |
| App Compatibility | ATN Connect 6 - iOS and Android |
| Hot Point Tracking | Yes |
| Sensors | Geomagnetic + Gyroscope |
| Material | Magnesium Alloy |
| Mounting | 30 mm Rings (not included) |
| Weight | 830 g / 1.83 lbs |
| Dimensions (L x W x H) | 430 x 85 x 72 mm (16.93 x 3.35 x 2.83 in) |
| Max Recoil Rating | 6,000 Joules / 1,000g acceleration over 0.4 ms |
| Operating Temperature | -30°C to 55°C (-22°F to 131°F) |
| Waterproof / IP Rating | IP67 |
| Warranty | 5 Years |
| Assembly Required | No - mounts to standard 30 mm rings (not included); no tools required for scope itself |
| Shipping Method | Ships standard parcel - no freight or pallet required |
Manuals & Guides
FAQ
What is the difference between the ATN ThOR 6 and the ATN ThOR 6 LRF?
The ATN ThOR 6 LRF adds a built-in Laser Rangefinder directly integrated into the scope body, which enables the ballistic calculator feature. The standard ThOR 6 640x512 | 2-16x does not include the LRF or ballistic calculator, but includes all other smart features: SharpIR AI, RAV, PIP, Hot Point Tracking, Wi-Fi, and full video/audio recording. If you need range-compensated ballistic data automatically applied to your reticle, the LRF version is the upgrade. For most hunters using the scope within its natural engagement distances, the standard ThOR 6 is an exceptional value.
Does the ThOR 6 work in complete darkness?
Yes - thermal scopes like the ThOR 6 detect heat, not light, so they operate in total darkness with no degradation in performance. There is no need for infrared illuminators or ambient light. The 640x512 sensor with 15mK NETD sensitivity can pick up heat signatures from animals and targets even through heavy brush, fog, or overcast skies at night.
What rings or mounts does the ThOR 6 require?
The ATN ThOR 6 uses standard 30 mm mounting rings, which are not included. Any quality 30 mm scope rings compatible with your rifle platform (Picatinny, Weaver, etc.) will work. ATN also offers their own quick-detach mounts if you need to swap the scope between platforms.
Can I record video through the ThOR 6?
Absolutely. The ThOR 6 has built-in video and audio recording with 64 GB of internal storage - no SD card needed. It also features Recoil Activated Video (RAV), which automatically saves footage 10 seconds before and after each shot. You can review footage directly on the scope's OLED display via the internal gallery, or transfer files via USB-C. The ATN Connect 6 app also allows live streaming to your smartphone.
How long does the battery last and can I replace it in the field?
The ThOR 6 runs on two 18650 batteries and delivers approximately 9 hours of continuous use. The battery system is designed for field replacement - one battery is fixed internally while the other is a replaceable 18650 that you can swap on the fly. Carrying spare 18650 cells means you can extend your hunt indefinitely without returning to camp.
Is the ATN ThOR 6 good for coyote and hog hunting?
The ThOR 6 640x512 is an outstanding choice for both coyote and hog hunting. Its ultra-sensitive 15mK thermal sensor picks out animals through heavy cover and at long range, while Hot Point Tracking instantly highlights the warmest object in your field of view. PIP mode lets you zoom in for a precise shot without losing situational awareness, and RAV captures every kill automatically. The 2-16x magnification range is well-suited for both close-quarters hog work and longer coyote shots across open fields.
