ATN ThOR 5 320 Thermal Riflescope - 3-12x, 10hr Battery, Made in USA
FREE Shipping!
Pairs well with

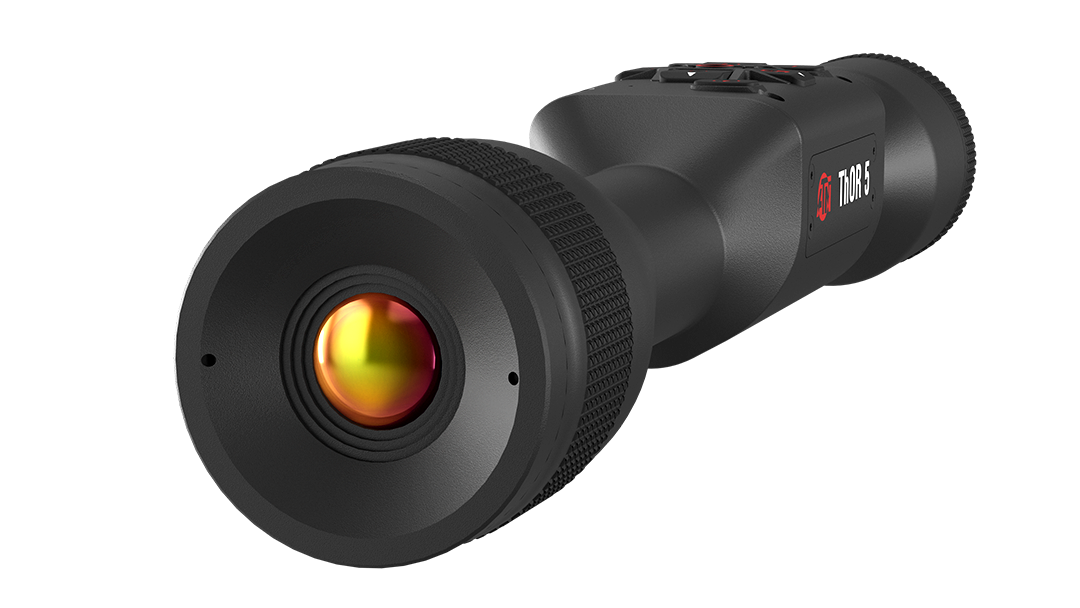

ATN ThOR 5 320 Thermal Riflescope - 3-12x
Description
The ATN ThOR 5 320 3-12x is a 5th Generation thermal riflescope built for serious hunters and shooters who demand precision detection at range. Powered by ATN's Gen V Quad Core processor and a 320x240 12µm sensor running at 60 fps, it delivers clear thermal imaging up to 2,200 yards of detection range. The proprietary SharpIR AI enhancement technology optimizes image clarity in challenging environments - hot, humid, or low-contrast conditions that would defeat lesser optics.
Beyond raw thermal performance, the ThOR 5 is a fully connected smart optic. It integrates a ballistic calculator, Recoil Activated Video (RAV), dual-stream video recording, and full iOS and Android WiFi connectivity into a rugged, weather-resistant package built and designed in the USA. Whether you're on a pre-dawn coyote hunt or a long-range scouting mission, the ThOR 5 gives you the edge to see, record, and connect every critical moment.
Key Features
- 5th Gen 320x240 Thermal Sensor (12µm, 60 fps): Next-generation sensor delivers smooth, responsive thermal imaging with detection range out to 2,200 yards.
- SharpIR AI Enhancement: ATN's proprietary artificial intelligence image processing dramatically sharpens thermal detail, even in difficult low-contrast environments.
- ATN Gen V Quad Core Processor: Powers fast UI response, smart features, and advanced imaging algorithms without lag.
- Ballistic Calculator: Integrated ballistics calculator accounts for load-specific variables, giving you precise holdover data in the field.
- Recoil Activated Video (RAV): Automatically starts recording on trigger pull so you never miss a shot - no button press required.
- Dual-Stream Video Recording: Stream HD video to a connected device via WiFi while simultaneously recording to a MicroSD card (up to 64GB).
- 10-Hour Battery Life: Integrated Li-ion battery powers the scope through full-night hunts and extended field sessions.
- Custom Reticle Editor: Design, save, and share your own reticle patterns at reticle.atncorp.com. Includes Smart Mil Dot reticle that adjusts dynamically with magnification.
- WiFi, Bluetooth & Electronic Compass: Full iOS and Android connectivity for streaming, gallery access, and remote control, plus onboard 3D gyroscope and accelerometer.
- 30mm HP QDM Mount Included: Ships with a high-performance quick-detach mount for fast, repeatable installation on any standard rail.
- Made in the USA: Designed and built in America with a 5-year warranty and operating range of -20°F to +120°F.
Shipping
Ships free! Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.
What's Included
- ATN ThOR 5 320 3-12x Thermal Riflescope
- Lens Tissue
- Eyecup
- Standard Rings (2 pcs.)
- USB-C Cable
- Scope Cover
- Flip Open Cap
- ATN Thermal Targets (Set of 3)
Why You'll Love It
The ThOR 5 320 3-12x is trusted by hunters, law enforcement, and sport shooters who rely on their optics when conditions are at their worst. ATN has built this scope to handle the demands of daily field use, from cold pre-dawn setups to hot summer varmint hunts, with a weather-resistant body and an operating range that covers nearly any real-world environment. The 10-hour battery life means you won't be cutting hunts short, and the smart feature stack - ballistics, RAV, live streaming - means you're bringing a capable optics system, not just a scope. Built in the USA and backed by a 5-year warranty, this is an investment in performance that will pay off season after season. If you've been hunting with traditional night vision or a basic thermal and want a meaningful upgrade, the ThOR 5 delivers it with every feature serious hunters actually use.
Product Specifications
View Spec Chart
| SKU | TIWST5319A |
|---|---|
| Sensor | 320x240, 60 fps, 12µm |
| Magnification | 3-12x |
| Field of View | 11.6 x 8.7 degrees |
| Core | ATN Gen V Quad Core |
| Micro Display | OLED 1024x768 |
| Eye Relief | 90 mm |
| Video Record Resolution | 1280 @ 60 fps |
| Ballistic Calculator | Yes |
| WiFi (Streaming, Gallery & Controls) | iOS & Android |
| Bluetooth | Yes |
| 3D Gyroscope | Yes |
| 3D Accelerometer | Yes |
| RAV (Recoil Activated Video) | Yes |
| Electronic Compass | Yes |
| Smooth Zoom | Yes |
| Radar | Yes |
| Reticles | Multiple Patterns & Color Options, User Custom Reticles |
| Reticle Editor | Yes |
| Microphone | Yes |
| MicroSD Card | 4 to 64 GB |
| USB | Type-C |
| Mount | 30 mm HP QDM |
| Battery Life (Li-ion) | 10 hours |
| Waterproof / IP Rating | Weather Resistant |
| Detection Range | 2,200 yd |
| Operating Temperature | -20°F to +120°F / -28°C to 48°C |
| Dimensions | 316 x 56 x 54 mm |
| Weight | 1.88 lb / 0.85 kg |
| Warranty | 5 years |
| Country of Origin | USA |
| Laser Rangefinder | No (see ThOR 5 LRF for LRF model) |
| Assembly Required | No - ships ready to mount; standard rings and USB-C cable included |
| Shipping Method | Ships standard parcel (no freight/pallet required) |
Manuals & Guides
FAQ
What is the difference between the ThOR 5 320 and the ThOR 5 640?
The key difference is sensor resolution. The 320 model uses a 320x240 sensor, while the 640 model uses a 640x480 sensor for greater image detail and longer detection ranges. The 640 series is better suited for extreme long-range detection and identification, while the 320 3-12x is an excellent, cost-effective choice for hunting ranges out to 2,200 yards.
Does the ThOR 5 320 3-12x have a built-in laser rangefinder?
No - this model does not include a laser rangefinder. ATN offers the ThOR 5 LRF series if you need a built-in rangefinder that automatically feeds distance data to the ballistic calculator. The standard ThOR 5 still includes a full ballistic calculator that you can populate manually with your target distance.
Can I stream live video from the ThOR 5 to my phone?
Yes. The ThOR 5 supports WiFi connectivity for both iOS and Android devices. Using the ATN app, you can stream live video, access the image gallery, and even control certain scope functions remotely - great for reviewing footage in the field or sharing your hunt in real time.
How long does the battery last, and can I extend it?
The internal Li-ion battery provides up to 10 hours of continuous use. For extended hunts or overnight operations, ATN also offers external power accessories like the ATN Power Weapon Kit that can significantly extend runtime. Battery life may vary based on temperature and WiFi/Bluetooth usage.
Is this scope legal to use for hunting in my state?
Thermal optic regulations vary by state and by game species. Most states permit thermal optics for predator and varmint hunting (coyotes, hogs, etc.), but some restrict thermal use for deer and other big game. Always check your local and state wildlife regulations before using any thermal optic for hunting.
What MicroSD card size do I need?
The ThOR 5 supports MicroSD cards from 4GB up to 64GB. For video recording at 1280x720 @ 60 fps, a 64GB card is recommended to ensure you have plenty of storage for extended sessions. ATN recommends using a high-speed card (Class 10 or UHS-I) for best performance.
