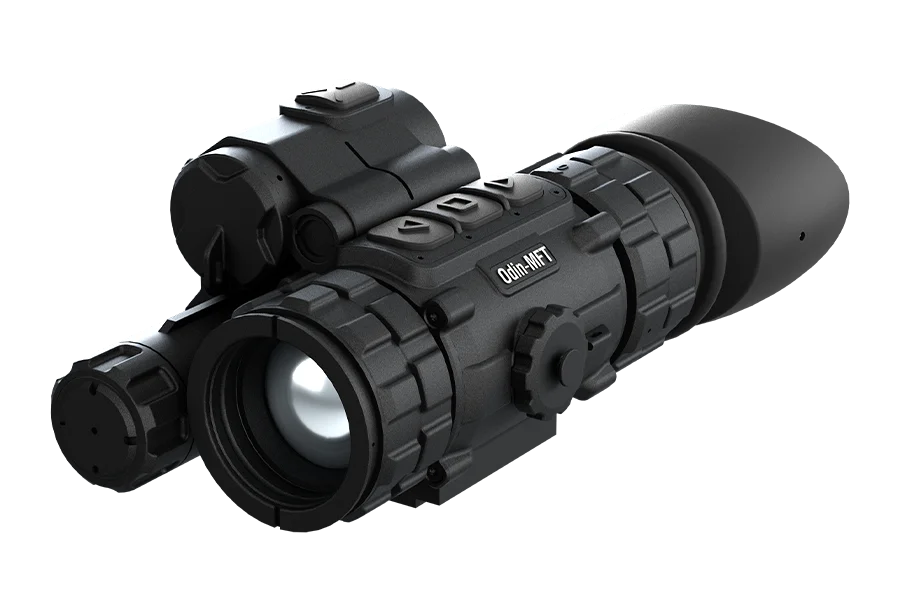

ATN Odin 6 MFT 640x480 Multi-Function Thermal Optic - 1-8x
FREE Shipping!
Pairs well with
ATN Odin 6 MFT 640x480 Multi-Function Thermal Optic - 1-8x
Description
The ATN Odin 6 MFT is a next-generation multi-function thermal optic built for hunters, predator control specialists, and tactical operators who demand the best. At its core is ATN's proprietary 6th Generation thermal engine featuring a 640x480 resolution 12um VOx uncooled focal plane array with a class-leading <=15mK NETD sensitivity rating - delivering razor-sharp thermal contrast and smooth 50Hz imaging out to 1,700 meters. Powered by ATN's exclusive SharpIR AI image enhancement, the Odin 6 MFT processes thermal data in real time to sharpen edge definition and target contrast in dense cover, open terrain, or low-visibility environments.
What truly sets the Odin 6 MFT apart is its four-in-one versatility: it operates as a handheld monocular, helmet-mounted device, clip-on thermal for your existing optic, or a dedicated weapon sight - all from a single compact unit. The 0.37-inch OLED display with 1280x1024 resolution brings your thermal view to life with vivid clarity, while onboard features like a ballistic calculator, RAV (Recoil Activated Video), hot point tracking, and 64GB internal storage make this one of the most complete thermal optics on the market.
Key Features
- 6th Generation 640x480 Thermal Sensor: 12um VOx uncooled focal plane array with <=15mK NETD sensitivity - detects heat signatures at up to 1,700 meters.
- SharpIR AI Image Enhancement: ATN's proprietary AI processing sharpens edges and improves target contrast in real time for faster, more confident identification.
- Four Modes of Operation: Functions as a clip-on thermal, weapon sight, helmet-mounted monocular, or handheld monocular - one device for every mission.
- High-Resolution OLED Display: 0.37-inch OLED with 1280x1024 HD resolution delivers vivid, high-contrast thermal images with fast response times.
- 1-8x Magnification with 4-Step Digital Zoom: Variable 1-8x optical magnification plus 1x, 2x, 4x, 8x digital zoom for close-in awareness or long-range identification.
- Ballistic Calculator with 9 Profiles: Auto-adjusts reticle for range and angle; supports up to 9 custom profiles for seamless platform switching.
- RAV - Recoil Activated Video: Automatically records 10 seconds before and after each shot - no button presses required.
- 64GB Internal Storage + Video/Audio Recording: Built-in microphone and 64GB onboard memory record directly to the device; transfer via USB-C.
- Hot Point Tracking: Instantly highlights the hottest object in the field of view for rapid target acquisition.
- Six Color Palettes: White Hot, Black Hot, High Red, Green Hot, Sepia, and Ironbow - adapt your thermal view to any environment.
- IP67 Waterproof Rating: Fully protected against dust and water immersion for all-weather reliability.
- 5-Year Warranty: ATN backs the Odin 6 MFT with an industry-leading 5-year warranty for long-term peace of mind.
Shipping
Ships free! Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.
What's Included
- ATN Odin 6 MFT 640x480 Thermal Optic
- 2x 18650 Batteries
- Battery Charger
- USB-C Cable
- Lens Tissue
- Portable Carrying Bag
- User Manual
Why You'll Love It
The ATN Odin 6 MFT represents the pinnacle of multi-role thermal technology, trusted by serious hunters and professionals who refuse to compromise on performance. Whether you're running hogs at night, scouting whitetail before first light, or conducting predator control across open fields, this optic delivers the detection range and image clarity to give you a decisive edge. The ability to switch from handheld spotter to helmet-mounted goggle to clip-on or weapon sight means one device covers your entire operation - no need to carry multiple units into the field. Built from magnesium alloy and rated to handle recoil up to 4,500 joules, the Odin 6 MFT is engineered to withstand the punishment of hard-use hunting and tactical environments season after season. With ATN's 5-year warranty and a feature set that rivals optics costing significantly more, this is a long-term investment that pays dividends every time you head into the field.
Product Specifications
View Spec Chart
| SKU | TIMFOD6625 |
|---|---|
| Modes of Operation | Clip-on, Weapon Sight, Helmet Monocular, Handheld Monocular |
| Detector Type | 12um VOx Uncooled Focal Plane Array |
| Sensor Resolution | 640x480 |
| Refresh Rate | 50 Hz |
| Thermal Sensitivity (NETD) | <=15mK |
| SharpIR AI Enhancement | Yes |
| Non-Uniformity Correction (NUC) | Auto / Manual |
| Lens System | 25mm Germanium, F/1.0 |
| Field of View (HxV) | 17.5 x 13.2 degrees |
| Focus Mechanism | Manual Focus via Lens Adjustment |
| Magnification | 1-8x |
| Digital Zoom | 1x, 2x, 4x, 8x |
| Detection Range | 1700 m |
| Display | 0.37" OLED, 1280x1024 HD Resolution |
| Picture-in-Picture (PIP) | Yes |
| Reticle Styles | 7 Styles (ballistic reticle optimized for 5.56x45mm and 7.62x51mm; user-defined supported) |
| Color Palettes | White Hot, Black Hot, High Red, Green Hot, Sepia, Ironbow |
| Eye Relief | Unlimited |
| Diopter Range | -3 to +3D |
| Ballistic Calculator | Yes - 9 Customizable Profiles |
| Manual Range Finder | Yes |
| Hot Point Tracking | Yes |
| Recoil Activated Video (RAV) | Yes |
| Video / Audio Recording | Yes |
| Internal Storage | 64 GB |
| Media Output | USB Type-C (Data Transfer and Power Supply) |
| Geomagnetic + Gyroscope | Yes (3-axis accelerometer and digital compass) |
| Standby / Sleep Mode | Yes - Shake-to-Wake function |
| Startup Time | Under 5 seconds |
| Battery Type | 1x 18650 or 1x CR123 or External USB-C (5V DC) |
| Battery Life | ~8 hrs (18650), ~1 hr (CR123) |
| External Power Supply | Yes, 5 VDC/2A, USB-C interface |
| Material | Magnesium Alloy |
| Mounting | Wilcox NVG Shoe / Picatinny (MIL-STD-1913) Rail Mount |
| Button Configuration | 5 functional buttons including power |
| Weight | 360g / 0.79 lbs (without battery or eyecup) |
| Dimensions (L x W x H) | 100x75x60 mm (3.94 x 2.95 x 2.36 in) |
| Max Recoil Rating | 4,500 Joules / 800g acceleration over 0.3 ms |
| Working Temperature | -46°C to +49°C (-51°F to +120°F) |
| Waterproof / IP Rating | IP67 |
| Warranty | 5 Years |
| Assembly Required | No - ready to use out of the box |
| Shipping Method | Ships standard parcel (no freight/pallet required) |
Manuals & Guides
FAQ
What makes the Odin 6 MFT different from a standard thermal monocular?
The Odin 6 MFT is a true multi-function thermal optic - it operates in four distinct roles: handheld monocular, helmet-mounted device, clip-on for existing day optics, and dedicated weapon sight. Most thermal monoculars are single-purpose. The Odin 6 MFT also adds advanced features like AI-powered SharpIR image enhancement, a built-in ballistic calculator with 9 profiles, Recoil Activated Video (RAV), and 64GB of onboard recording storage - features you typically only find in dedicated rifle-mounted thermal scopes.
Can I use the Odin 6 MFT as a clip-on with my existing daytime scope?
Yes. The Odin 6 MFT is designed to mount directly in front of your existing day optic, converting it into a thermal sight while preserving your familiar reticle and weapon balance. It is compatible with day optics up to 6x magnification, making it an excellent choice for hunters who want to extend their current setup into nighttime or low-visibility conditions without purchasing a dedicated thermal scope.
What is the detection range of the ATN Odin 6 MFT 640?
The Odin 6 MFT 640x480 has a rated detection range of 1,700 meters. This is made possible by its high-resolution 640x480 sensor, 25mm f/1.0 germanium objective lens, and ultra-sensitive <=15mK NETD thermal detector, which can resolve subtle temperature differences at extended distances - even through darkness, fog, or light vegetation.
What battery types does the Odin 6 MFT use, and how long does it last?
The Odin 6 MFT accepts a standard 18650 rechargeable lithium battery (approximately 8 hours of runtime) or a CR123 battery (approximately 1 hour). It also supports external power via USB-C at 5V/2A, so you can keep it running indefinitely from a power bank or vehicle power source during long hunts or extended operations.
Is the Odin 6 MFT waterproof?
Yes. The Odin 6 MFT carries an IP67 waterproof rating, meaning it is fully protected against dust ingress and can withstand temporary water immersion. It also has a working temperature range of -46°C to +49°C (-51°F to +120°F), making it suitable for extreme cold-weather hunts and hot summer predator control operations alike.
What is Recoil Activated Video (RAV) and how does it work?
RAV is ATN's hands-free video capture system. When the Odin 6 MFT is mounted as a weapon sight, it automatically detects the recoil from your shot and saves a clip that includes 10 seconds before and after the trigger pull - capturing the exact moment of impact without requiring you to press any button. It is ideal for documenting shots on game, reviewing misses, or sharing footage from the field.
What color palettes are available on the Odin 6 MFT?
The Odin 6 MFT offers six color palettes: White Hot, Black Hot, High Red, Green Hot, Sepia, and Ironbow. Each palette is designed to enhance heat signature contrast in specific environments and lighting conditions. White Hot and Black Hot are popular for general use, while Ironbow and High Red are favored in cluttered or dense environments where color differentiation helps with target identification.
