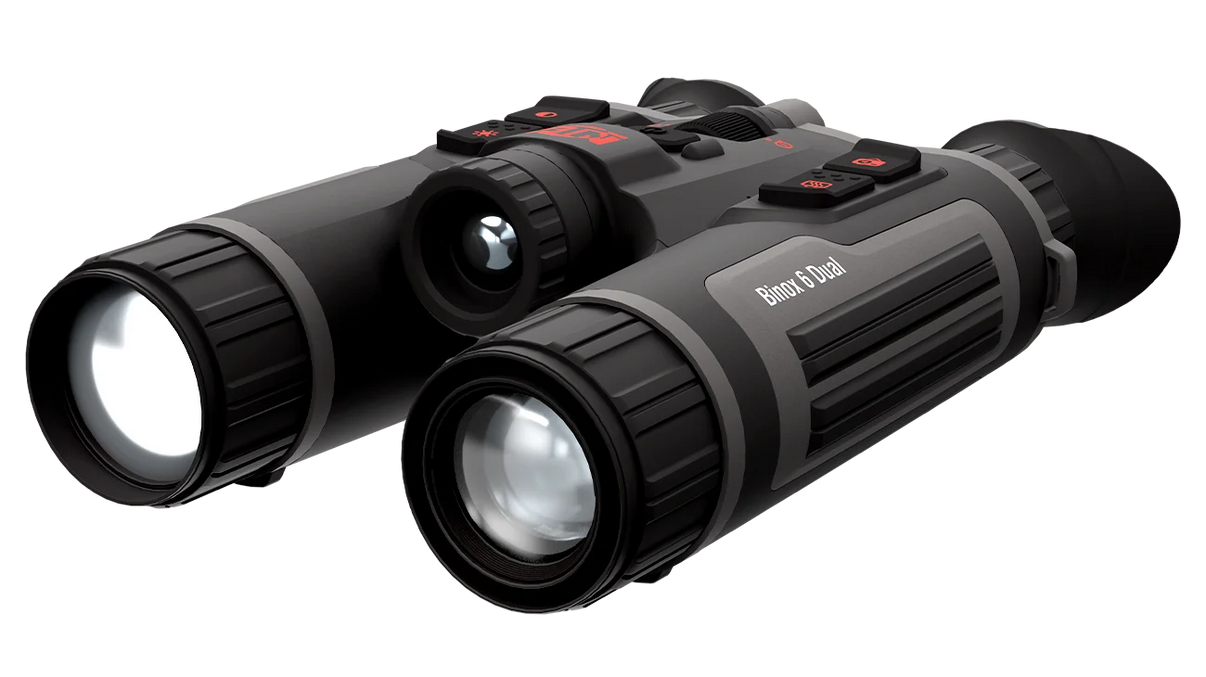

ATN Binox 6 Dual 384x288 Multispectral Thermal Binoculars 5.5-44x with LRF
FREE Shipping!
Pairs well with
ATN Binox 6 Dual 384x288 Multispectral Thermal Binoculars 5.5-44x with LRF
Description
The ATN Binox 6 Dual is a next-generation multispectral binocular system that combines Day, Night, Thermal, and Twilight vision into a single rugged optic - eliminating the need to carry multiple devices in the field. At its core is a 6th Generation 384x288 thermal sensor built on a 12 μm VOx uncooled focal plane array with ultra-sensitive ≤15 mK NETD, delivering detection ranges out to 2,750 meters. Paired with a 1.8" Ultra HD 4K CMOS sensor, this system produces rich, full-color daytime visuals and reliable night vision performance with IR illumination out to 350 meters.
Engineered for hunters, law enforcement, SAR teams, and outdoor professionals, the Binox 6 Dual brings advanced AI-powered image enhancement, a built-in laser rangefinder, GPS, Wi-Fi, and 64 GB of onboard recording into a lightweight IP67-rated magnesium alloy body. Whether you are tracking game at dawn, running surveillance in total darkness, or navigating difficult terrain, this optic is built to perform at the highest level in any condition.
Key Features
- 4-in-1 Vision Modes: Seamlessly switch between Day, Night, Thermal, and Twilight modes - one optic for every lighting condition.
- 384x288 6th Gen Thermal Sensor: 12 μm VOx uncooled focal plane array with ≤15 mK NETD sensitivity and 50 Hz refresh rate for smooth, detailed thermal imaging.
- 2,750 m Thermal Detection Range: Spot heat signatures at extreme distances - ideal for hunters, tactical teams, and land managers.
- 4K Ultra HD CMOS Sensor (3840x2160): Large 1.8" sensor delivers vibrant, true-color daytime visuals rivaling high-end optics and digital cameras.
- Built-In Laser Rangefinder (LRF): Measures distances up to 1,000 yards with ±1 m accuracy - no extra devices needed.
- SharpIR AI Image Enhancement: ATN's proprietary AI algorithms sharpen edge definition and improve target contrast in real time for faster identification.
- Dual View Switching: Display thermal and daytime/night/twilight images simultaneously on one screen for maximum situational awareness.
- 6 Thermal Color Palettes: White Hot, Black Hot, Iron Red, Alarm, Green Hot, and Sepia - choose the best palette for your environment and mission.
- IP67 Waterproof Magnesium Alloy Body: Lightweight yet impact-resistant, dustproof, and fully waterproof for reliable performance in rain, mud, and demanding terrain.
- 64 GB Onboard Storage + Wi-Fi: Record 4K day and 1080p thermal video internally; share footage live via the ATN Connect 6 app.
- Up to 8 Hours Battery Life: Powered by dual replaceable 18650 batteries; USB-C port supports external power banks for extended missions.
- Adjustable IPD & Eye Relief: Interpupillary distance range of 60-74 mm and 15 mm eye relief for comfortable, long-session use.
Shipping
Ships free! Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.
What's Included
- ATN Binox 6 Dual 384x288 Thermal Binoculars
- USB-C Charging Cable
- Neck Strap
- Body Strap
- 18650 Rechargeable Batteries
- Generation 6 Charger
- Portable Carry Bag
- Binox 6 User Manual
Why You'll Love It
The Binox 6 Dual is trusted by hunters, law enforcement professionals, and SAR teams who demand a single optic capable of handling every scenario without compromise. Its 6th Generation thermal engine paired with a full 4K CMOS sensor means you are never trading off day performance for night capability - you get both at the highest level. The SharpIR AI processing and Wide Dynamic Range features ensure that targets are clear and identifiable even in smoke, fog, dense brush, or cluttered thermal backgrounds. With GPS tracking, onboard recording, Wi-Fi streaming, and a built-in rangefinder all integrated into one IP67-rated body, this binocular replaces an entire bag of gear. For serious hunters, tactical operators, and outdoor professionals who need reliable, high-performance optics they can count on from pre-dawn to post-dusk, the ATN Binox 6 Dual delivers a level of versatility and capability that is simply unmatched at this price point.
Product Specifications
View Spec Chart
| Thermal Sensor Resolution | 384x288 |
|---|---|
| Thermal Detector Type | VOx Uncooled Focal Plane Array |
| Pixel Pitch | 12 μm |
| Thermal Sensitivity (NETD) | ≤15 mK |
| Thermal Refresh Rate | 50 Hz |
| Thermal Detection Range | 2,750 m |
| CMOS Sensor Resolution | 3840x2160 (4K Ultra HD) |
| CMOS Sensor Size | 1.8" |
| Night Vision IR Range | 350 m |
| CMOS Detection Range | 400 m |
| Magnification | 5.5-44x |
| Digital Zoom | 8x |
| Laser Rangefinder Range | Up to 1,000 yards |
| Laser Rangefinder Accuracy | ±1 m |
| Onboard Storage | 64 GB |
| Battery | 2x 18650 rechargeable (replaceable) |
| Battery Life | Up to 8 hours |
| Charging Port | USB-C |
| Interpupillary Distance | 60-74 mm (adjustable) |
| Eye Relief | 15 mm |
| Housing Material | Magnesium Alloy |
| Water Resistance | IP67 Waterproof |
| Connectivity | Built-in Wi-Fi (ATN Connect 6 app) |
| Video Recording | 4K daytime / 1080p thermal |
| Thermal Color Palettes | White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia |
Manuals & Guides
FAQ
What is the difference between the 256, 384, and 640 sensor versions?
The three sensor options differ in thermal resolution, sensitivity, and detection range. The 256x192 model offers ≤20 mK NETD and is a compact, power-efficient option for general-purpose use. The 384x288 (this model) steps up to ≤15 mK sensitivity and a 2,750 m detection range, making it the best all-around choice for hunters and tactical users. The 640x512 model delivers the highest thermal definition and a 3,100 m detection range, suited for professionals who need maximum clarity and long-range target identification.
Can I use the Binox 6 Dual during the day as well as at night?
Yes - the Binox 6 Dual is specifically designed as a 4-in-1 optic. During the day you use the 4K Ultra HD CMOS sensor for full-color, high-detail viewing. At night you can switch to Night Vision Mode (with IR illuminator) or Thermal Mode to detect heat signatures in total darkness. Twilight Mode is optimized for low-light conditions like dawn and dusk. All four modes are accessible from a single device with no gear swaps required.
Does the built-in laser rangefinder work in thermal mode?
Yes. The integrated laser rangefinder operates independently of the vision mode, allowing you to range targets in any mode - including thermal. It measures distances up to 1,000 yards with ±1 m accuracy, giving hunters and tactical operators precise distance data without carrying a separate rangefinder.
Is the ATN Binox 6 Dual waterproof?
Yes. The Binox 6 Dual carries an IP67 waterproof rating, meaning it is fully protected against dust and can withstand immersion in up to 1 meter of water for 30 minutes. Its magnesium alloy housing is also impact-resistant, making it suitable for use in rain, fog, mud, and other demanding field conditions.
How does the Wi-Fi and ATN Connect 6 app work?
The Binox 6 Dual has built-in Wi-Fi that allows you to connect directly to your smartphone or tablet running the ATN Connect 6 app. From the app you can stream live video, view and manage your onboard gallery, transfer recorded files, and share footage instantly. This is useful for spotting partners, guided hunts, or any scenario where sharing a real-time view is an advantage.
What batteries does it use and how long do they last?
The Binox 6 Dual is powered by two standard 18650 rechargeable batteries, which are user-replaceable - a significant advantage for multi-day use in the field. On a full charge, expect up to 8 hours of continuous operation. The USB-C port also supports external power banks for uninterrupted use during long hunts, patrols, or expeditions.
