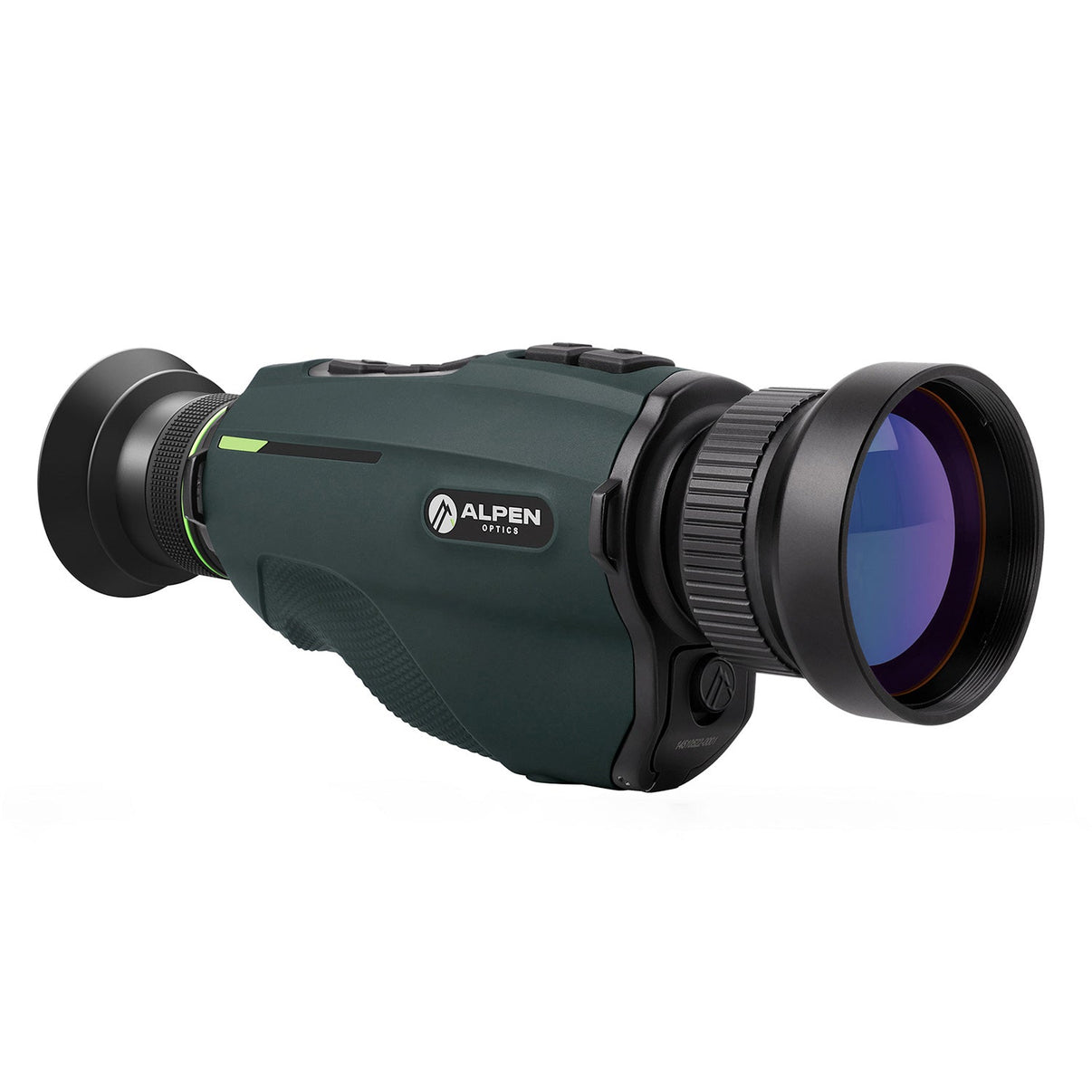

Apex Thermal Monocular 54mm
Description
The Alpen Optics Apex Thermal Monocular 54mm is a premium thermal imaging device engineered for hunters, wildlife observers, and outdoor professionals who demand sharp, reliable performance in any condition. Powered by a high-sensitivity 384x288 NETD <40 mK thermal imaging sensor and a 54mm germanium lens, this monocular delivers clear detection up to 1,800 meters - cutting through rain, fog, and total darkness with ease. The vivid HD AMOLED display renders thermal imagery in stunning color and detail, enhanced further by Alpen's proprietary Clear+ technology for sharper, more refined images.
With a 3x base magnification (expandable digitally to 6x and 12x), 16 GB of onboard memory, and built-in WiFi for live streaming and photo/video capture, the Apex 54mm is as versatile as it is powerful. Whether you're tracking game through dense woodland, conducting search and rescue operations, or observing wildlife at dawn, this monocular is built to perform where it counts most.
Key Features
- 54mm Germanium Lens: Large-aperture germanium optic maximizes thermal light collection for superior sensitivity and detection at range.
- 384x288 / 17 µm / <40 mK Thermal Sensor: High-resolution NETD sensor spots heat signatures - deer, wild boar, hare, and more - even through rain and fog.
- Detection Range up to 1,800 m: Reliably identifies targets at extreme distances, ideal for open terrain hunting and security applications.
- 3x Magnification with Digital Zoom (6x, 12x): Flexible zoom range lets you scan wide scenes or close in on distant targets without repositioning.
- HD AMOLED Display (1280x960): Colorful, high-contrast display delivers vivid thermal imagery with exceptional clarity in any lighting condition.
- Clear+ Technology: Alpen Optics' proprietary image enhancement produces sharper, more detailed thermal images compared to standard processing.
- 16 GB Internal Memory with Playback: Record and review photos (JPEG) and video directly on the device - no external device required.
- Built-in WiFi: Stream live footage and transfer photos/videos wirelessly; compatible with Apple and Android apps.
- IPX 6 Waterproof Rated: Withstands strong water jets, keeping you operational in harsh weather conditions.
- Dual Exchangeable Batteries with Power-Saving Mode: Two included Alpen Optics APP-3500 battery packs with a dedicated charger ensure extended field sessions.
- Tripod Connection Thread & "Display Off" Function: Supports stationary setups and discrete observation with the display-off option for added versatility.
What's Included
- Apex Thermal Monocular 54mm
- 2x Alpen Optics APP-3500 Battery Packs
- Battery Charger
- Storage Bag (900D Sail Fabric with Storage Compartment)
- Hand Strap
Why You'll Love It
The Alpen Optics Apex Thermal Monocular 54mm is trusted by serious hunters, wildlife professionals, and field operators who need a thermal device that genuinely delivers at long range and in punishing conditions. The combination of a premium germanium lens, high-sensitivity sensor, and Clear+ image processing puts this monocular in a class above consumer-grade alternatives. Built to handle the demands of daily field use, its IPX 6 waterproofing and rugged construction mean you're protected from the elements no matter the season. The integrated WiFi and app connectivity make it easy to share your sightings or document encounters for review - a feature that sets it apart from simpler thermal options. With two swappable batteries, 16 GB of onboard storage, and a compact form factor, this monocular is engineered for extended hunts and multi-day expeditions where reliability is non-negotiable.
Product Specifications
View Product Specs
| Item Number | ATM54 |
|---|---|
| Type | Monocular |
| Lens Diameter | 54mm |
| Lens Material | Germanium |
| Magnification | 3x (Digital Zoom up to 6x, 12x) |
| Thermal Sensor | 384 x 288 / 17 µm / <40 mK |
| Detection Distance | 1,800 m |
| Display | HD AMOLED |
| Resolution | 1280x960 |
| Internal Memory | 16 GB |
| Image File Format | JPEG |
| WiFi | Yes |
| App Compatibility | Apple and Android |
| Picture in Picture | Yes |
| Battery | Exclusive Alpen Optics APP-3500 Battery Pack (x2 included) |
| Temperature Range | -25°C to 50°C |
| Waterproof Rating | IPX 6 (Strong Water Jets) |
| Dimensions (L x W x H) | 185 x 53 x 80 mm |
| Weight | 511g |
| Tripod Connection Thread | Yes |
| Area of Application | Hunting, Fishing, Caving, Camping, Security, Wildlife Viewing, Search & Rescue |
FAQ
What is the difference between the 35mm and 54mm Apex Thermal Monocular?
The primary difference is lens size and detection capability. The 54mm model features a larger germanium lens that collects more thermal energy, resulting in a longer detection range of up to 1,800 meters and improved sensitivity in low-contrast thermal environments. It is best suited for hunters and professionals working in open terrain or at longer distances. The 35mm model is a more compact and budget-friendly option ideal for closer-range observation and easier carry in the field.
Can I use the Apex 54mm Thermal Monocular in rain or fog?
Yes. Thermal imaging detects heat rather than reflected light, so rain, fog, smoke, and low-light conditions have minimal impact on performance. The Apex 54mm is also IPX 6 waterproof rated, meaning it can withstand strong water jets, making it fully capable of use in wet and harsh weather conditions.
How does the WiFi feature work on this monocular?
The built-in WiFi allows you to connect the Apex 54mm to a smartphone or tablet running the companion app (available for both Apple and Android devices). From there, you can live stream what the monocular sees, capture photos and video remotely, and transfer files wirelessly without needing a USB connection.
How long do the batteries last in the field?
Battery life will vary depending on usage, zoom level, WiFi activity, and ambient temperature. The monocular includes two Alpen Optics APP-3500 battery packs that are hot-swappable, meaning you can replace one in the field without losing your session. A dedicated charger is also included. The power-saving mode helps extend runtime during stationary observation.
Does the Apex 54mm Thermal Monocular come with a warranty?
Yes. The Apex Thermal Monocular 54mm is backed by an Alpen Optics United States Limited Warranty. For full warranty details and terms, please refer to the Alpen Optics warranty information included with the product or available on their official website.
Is a tripod compatible with this monocular?
Yes. The Apex 54mm features a standard tripod connection thread, allowing you to mount it on any compatible tripod for stationary observation. This is especially useful during extended surveillance, security applications, or wildlife monitoring where handheld use over long periods would be fatiguing.
