AM 1/24 with Manual Override Screw Drive

Description

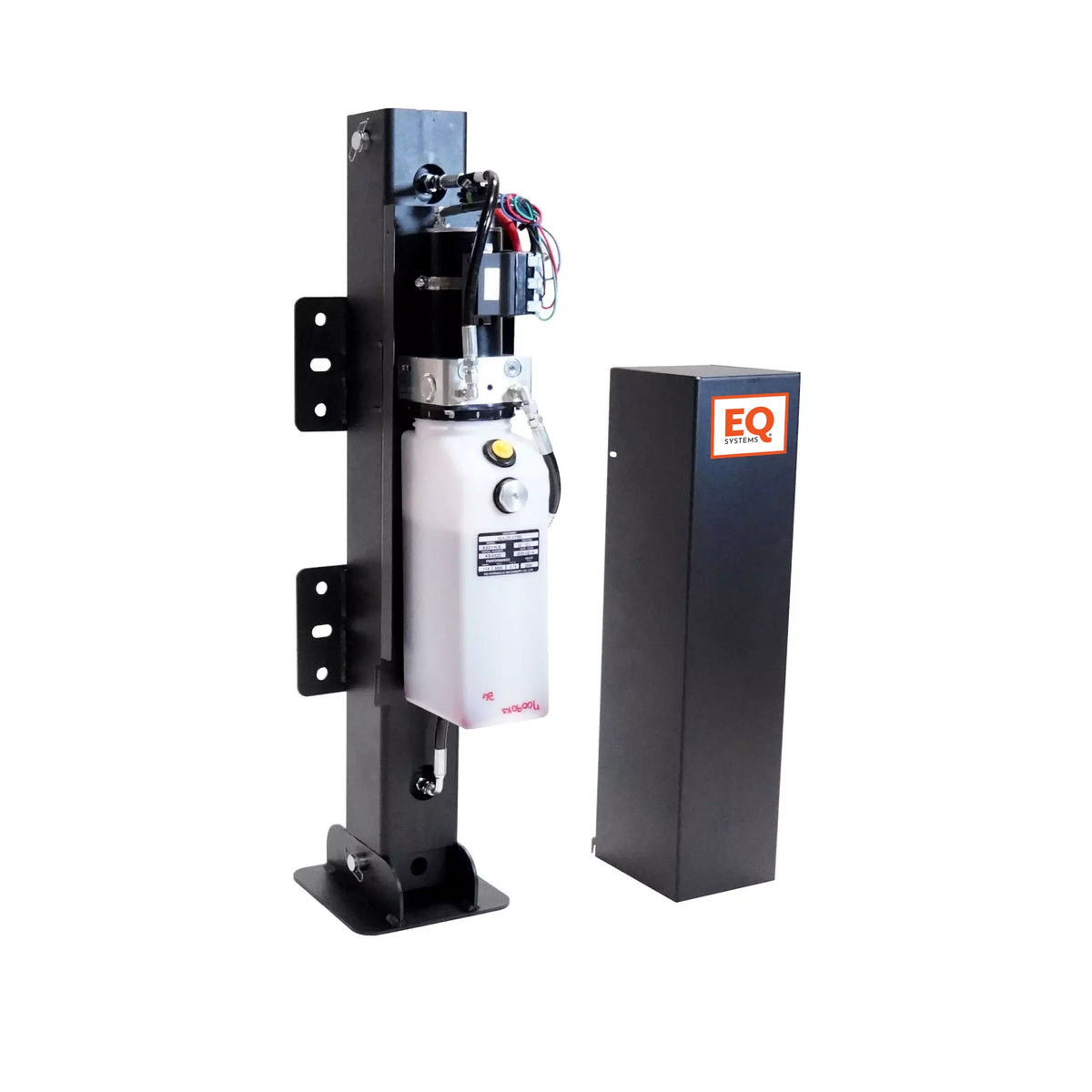

The EQ Systems AM 1/24 Hydraulic Trailer Jack with Manual Override Screw Drive is a heavy-duty, single-leg hydraulic lifting system designed for reliable operation on gooseneck trailers. Featuring a 12,000 lb lifting capacity and 24-inch stroke, this system provides powerful lifting performance for loaded horse trailers, motorsports trailers, and cargo trailers. Its rugged 4-inch x 4-inch square tube-in-tube construction delivers structural strength and stability while mounting directly to the center tube of compatible gooseneck trailers. A commercial-grade hydraulic pump and keyed rocker switch control eliminate the physical effort of traditional manual cranking, making trailer hookup and unhooking faster and more convenient. The integrated manual override screw drive allows the hydraulic pump to operate using a compatible electric drill if electrical power becomes unavailable. Universal mounting brackets, a protective pump cover, and wire harnesses with PVC high-temperature nylon braid provide dependable performance in demanding outdoor environments. Designed for operators who need strength, convenience, and long-term reliability, the AM 1/24 offers a practical hydraulic lifting solution for frequent trailer use.

Key Features

• 12,000 lb Lifting Capacity: Heavy-duty single-leg hydraulic lifting system designed for loaded gooseneck horse, motorsports, and cargo trailers.

• 24-Inch Hydraulic Stroke: Provides a 35.25-inch retracted length and 58.3125-inch extended length for versatile trailer height adjustment.

• Heavy-Duty Tube-in-Tube Construction: Features a 4-inch x 4-inch square tube design for structural strength, stability, and dependable lifting performance.

• Commercial-Grade Hydraulic Pump: Single-function hydraulic pump provides powered lifting and lowering, reducing the effort required for trailer hookup and positioning.

• Manual Override Screw Drive: Allows backup operation using a compatible electric drill rated for at least 2,000 RPM if electrical power is unavailable.

• Keyed Rocker Switch Control: Standard keyed switch and wire harness provide convenient powered operation while helping prevent unauthorized use.

• Protected Electrical Wiring: Wire harnesses feature PVC high-temperature nylon braid protection for improved resistance to heat and abrasion.

• Universal Mounting Brackets: Included brackets support installation onto the center tube of compatible gooseneck trailers.

• Wireless Remote Compatibility: Supports an optional wireless remote control, Part #7823, for convenient operation of single-function hydraulic jacks.

• Serviceable Hydraulic Components: Replacement hydraulic cylinder, Part #1179EQ, is available separately to support long-term maintenance and equipment service.

Shipping

Ships free! Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.

Installation Requirements: Installation is required. The hydraulic jack mounts to the center tube of a compatible gooseneck trailer using the included universal mounting brackets.

Important: This unit ships without hydraulic fluid or mounting bolts. Dexron III ATF hydraulic fluid and compatible mounting bolts must be purchased separately.

What's Included

• (1) EQ Systems AM Series Single-Leg Hydraulic Trailer Jack with 24-inch stroke

• (1) Commercial Single-Function Hydraulic Pump with Manual Override Screw Drive

• (1) Protective Hydraulic Pump Cover

• (1) Keyed Rocker Switch Control Assembly

• (1) Electrical Wire Harness with PVC High-Temperature Nylon Braid Protection

• Universal Mounting Brackets for Gooseneck Trailer Installation

Not Included:

• Dexron III ATF Hydraulic Fluid

• Mounting Bolts or Mounting Bolt Kit

• Optional Wireless Remote Control, Part #7823

• Electric Drill and Compatible Hex Driver for Manual Override Operation

Why You'll Love It

The EQ Systems AM 1/24 Hydraulic Trailer Jack takes the physical strain out of lifting and positioning heavy gooseneck trailers with dependable hydraulic power. Its impressive 12,000 lb lifting capacity and rugged square tube construction provide the strength and stability needed for demanding hauling applications. The keyed rocker switch makes everyday operation convenient while adding a practical level of security against unauthorized use. A built-in manual override screw drive provides valuable backup functionality, allowing the hydraulic system to operate with a compatible drill when electrical power is unavailable. With protected wiring, universal mounting brackets, and a commercial-grade hydraulic pump, this system is built for consistent performance and straightforward long-term maintenance. Whether you're hauling horses, transporting motorsports equipment, or managing heavy cargo trailers, the AM 1/24 delivers the reliability, lifting power, and convenience needed for regular use.

Product Specifications

• Manufacturer: EQ Systems

• Product Name: AM 1/24 with Manual Override Screw Drive

• SKU: 8107UPS

• Product Type: Hydraulic Gooseneck Trailer Jack

• Series: AM Series Tube-in-Tube

• Jack Configuration: Single Leg

• Lifting Capacity: 12,000 lbs

• Stroke Length: 24 inches

• Tube Dimensions: 4 x 4 inches

• Retracted Length: 35.25 inches

• Extended Length: 58.3125 inches

• Hydraulic Cylinder Bore: 2.5 inches

• Pump Type: Commercial Single-Function Hydraulic Pump

• Manual Override Type: Screw Drive Output Shaft

• Manual Override Drill Requirement: Electric Drill, Minimum 2,000 RPM

• Manual Override Driver Size: 7/16-inch Hex Driver or 1/4-inch (6mm) Allen Hex Key, Depending on Pump Model

• Control Type: Keyed Rocker Switch and Wire Harness

• Wire Harness Protection: PVC High-Temperature Nylon Braid

• Mounting Type: Bolt-On, Gooseneck Center Tube

• Mounting Brackets: Universal, Included

• Hydraulic Fluid Type: Dexron III ATF, Not Included

• Hydraulic Fluid Fill Level: Approximately 1 Inch Below Reservoir Top with Jack Fully Retracted

• Battery Performance Requirement: Minimum 150 Amperes at 10.5 VDC for at Least 30 Seconds

• Compatible Trailer Types: Gooseneck Horse Trailers, Motorsports Trailers, Cargo Trailers

• Optional Wireless Remote: Part #7823, Sold Separately

• Replacement Hydraulic Cylinder: Part #1179EQ

• Mounting Bolts: Not Included

• Installation Required: Yes

• Recommended Maintenance Interval: Every 12 Months
