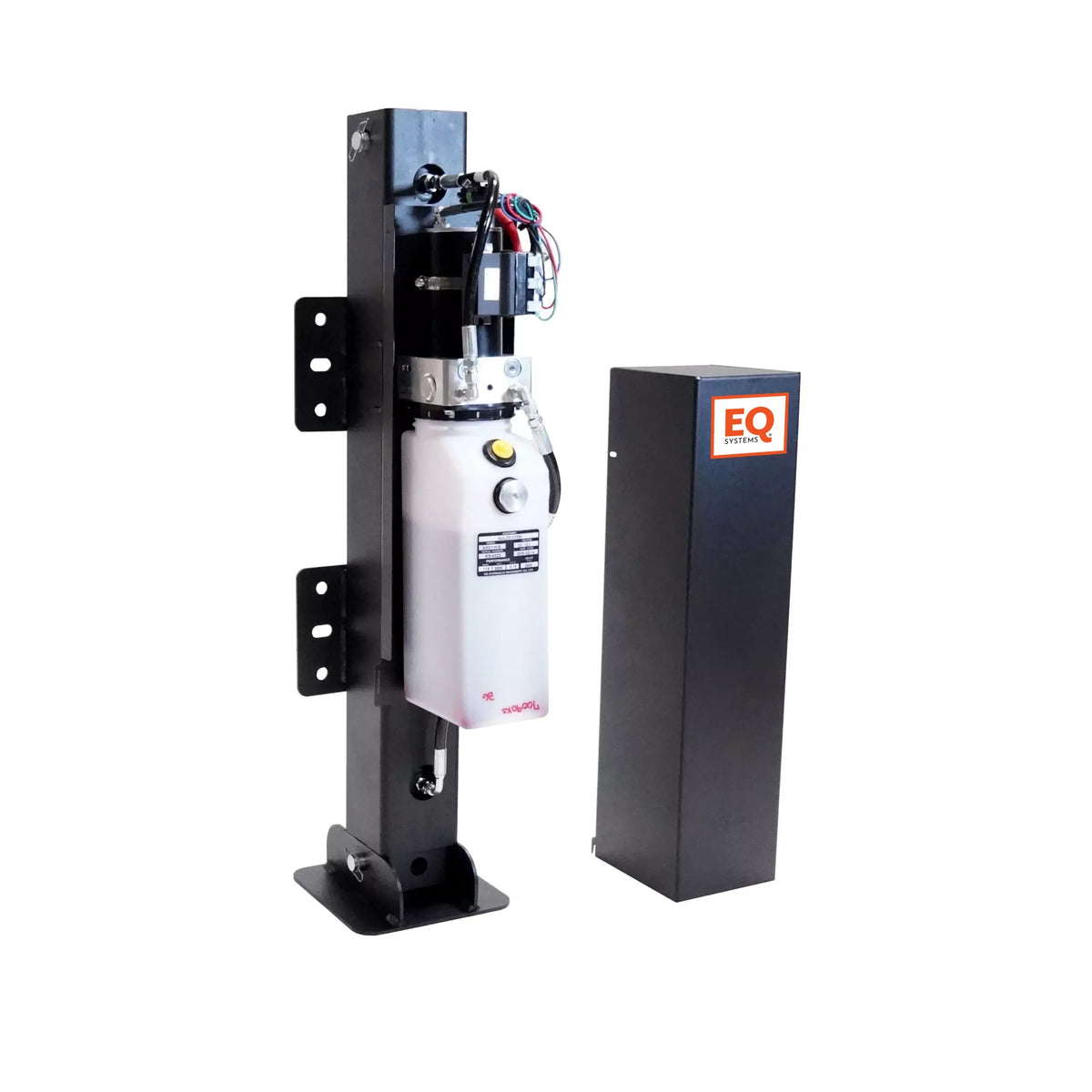

AM 1/24 with Manual Override Screw Drive
Description
The EQ Systems AM 1/24 is a complete heavy-duty single-leg hydraulic lifting system designed to bolt directly to the center tube of a gooseneck trailer. Built around the AM series 4" x 4" square tube-in-tube design, this system delivers a powerful 12,000 lb lifting capacity with a 24" stroke - making hookup and unhooking a loaded horse or motorsports trailer fast, safe, and effortless. The keyed rocker switch replaces the grueling effort of cranking a manual jack, turning what used to be a fight into a clean two-minute job.
What sets this unit apart is its built-in screw drive manual override, giving you a reliable backup option if power is ever lost - simply use an electric drill through the override shaft to keep the pump running. Wire harnesses feature a PVC high-temperature nylon braid for durability in demanding field environments, and universal mounting brackets are included for straightforward installation. This is the jack built for serious horse trailer and motorsports/cargo trailer owners who need dependable, commercial-grade performance every time.
Key Features
- 12,000 lb Lifting Capacity: Heavy-duty single-leg hydraulic system handles the demands of loaded horse and motorsports/cargo gooseneck trailers.
- 24" Stroke Length: Generous stroke range accommodates a wide variety of trailer heights and hookup situations.
- 4" x 4" Tube-in-Tube Design: AM series square tube-in-tube construction provides exceptional strength and stability under load.
- Screw Drive Manual Override: If the system loses power, an electric drill (min. 2000 RPM) drives the pump through the override shaft - keeping you operational in the field.
- Keyed Rocker Switch Control: Standard keyed switch and harness for simple one-touch operation, while also preventing unauthorized use of the system.
- PVC High-Temperature Nylon Braid Harness: Wire harnesses are built to handle tough environments, protecting against heat and abrasion.
- Universal Mounting Brackets Included: Bolts to the center tube of a gooseneck trailer with included universal brackets for straightforward installation.
- Commercial Single-Function Pump with Pump Cover: Heavy-duty pump is protected and rated for commercial-grade use cycle after cycle.
- Wireless Remote Option Available: Optional wireless remote (part 7823) sold separately for added convenience with single-function jacks.
- Replacement Cylinder Part 1179EQ: Identified service parts available for long-term ownership and easy maintenance.
Shipping
Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.
What's Included
- AM series single-leg hydraulic jack (24" stroke)
- Commercial single-function pump with manual override screw drive
- Pump cover
- Keyed rocker switch and wire harness
- Universal mounting brackets
Why You'll Love It
For horse trailer owners and motorsports haulers, the EQ Systems AM 1/24 is the upgrade that makes every hookup and departure faster and less physically demanding. Trusted by operators who rely on their equipment in demanding real-world conditions, this system is engineered to deliver consistent, powerful lifting performance trip after trip. The screw drive manual override means you're never truly stranded - a detail that experienced trailer owners genuinely appreciate when things don't go as planned. The keyed control adds a practical security layer, ensuring only authorized users can operate the system. Backed by EQ Systems' reputation for commercial-grade hydraulic lifting equipment, this jack is built to handle the demands of daily use and years of dependable service. If you're done wrestling with manual jacks on a loaded trailer, this is the solution built for you.
Product Specifications
View Product Specs
| SKU | 8107UPS |
|---|---|
| Series | AM series tube in tube |
| Legs | 1 |
| Lifting Capacity | 12,000 lbs |
| Stroke Length | 24" |
| Tube Size | 4" x 4" |
| Retracted Length | 35.25" |
| Extended Length | 58.3125" |
| Cylinder Bore | 2.5" |
| Manual Override | Screw drive output shaft |
| Control | Keyed rocker switch and harness, standard |
| Hydraulic Fluid | Dexron III ATF (ships without fluid) |
| Battery Requirement | Minimum 150A at 10.5 VDC for 30 seconds |
| Mounting Hardware | Ships without mounting bolts (bolt kits available separately) |
| Replacement Cylinder Part | 1179EQ |
FAQ
Does this unit ship with hydraulic fluid and mounting bolts?
No - the AM 1/24 ships without hydraulic fluid or mounting bolts. The system runs on Dexron III ATF, which you'll need to source separately and fill to about one inch below the top of the reservoir with the jacks fully retracted. Bolt kits are available for purchase online. Be sure to run the unit with the vented breather cap fitted - not the flush shipping plug - or the jack may operate erratically.
How does the manual override work if I lose power?
If the system loses power, you can drive the pump manually using an electric drill through the override shaft located on the end of the motor, under a plastic cap or foil seal. The drill must reach at least 2000 RPM for the pump to develop enough pressure to move the jack. Most pumps use a 7/16 inch hex driver, while others use a 1/4 inch (6mm) Allen hex key - check the AM Single Leg manual for your specific unit. Use care to keep the drill away from wires and hoses during operation.
What type of trailer is this jack designed for?
The AM 1/24 is designed to bolt to the center tube of a gooseneck trailer. It is ideal for horse trailers and motorsports or cargo trailers where a heavy-duty, high-capacity single-leg hydraulic lift is needed. The universal mounting brackets are included to simplify installation on compatible gooseneck trailer frames.
What battery specifications are required to run this system?
EQ Systems recommends load testing your battery before use - it should deliver a minimum of 150 amperes at a minimum of 10.5 VDC for at least 30 seconds. Keep terminals clean and tight, and maintain the battery per the manufacturer's requirements. If your trailer sits between trips, EQ Systems offers Stay Charge parts (8400 and 8427) that charge the trailer battery from the tow vehicle, as well as a solar kit (70486) to keep the jack battery topped up.
Is a wireless remote available for this jack?
Yes - an optional wireless remote is available as part 7823, compatible with single-function jacks like the AM 1/24. This is sold separately and can be a convenient upgrade if you prefer not to use the standard keyed rocker switch for every operation.
How often does this system require maintenance?
EQ Systems recommends inspecting the system every 12 months. During inspection, check that all connections are tight and free from corrosion - particularly the ground connection to the pump stud and the positive cable to the motor solenoid. Regular maintenance ensures reliable long-term performance and helps catch any issues before they become serious problems in the field.
