Description

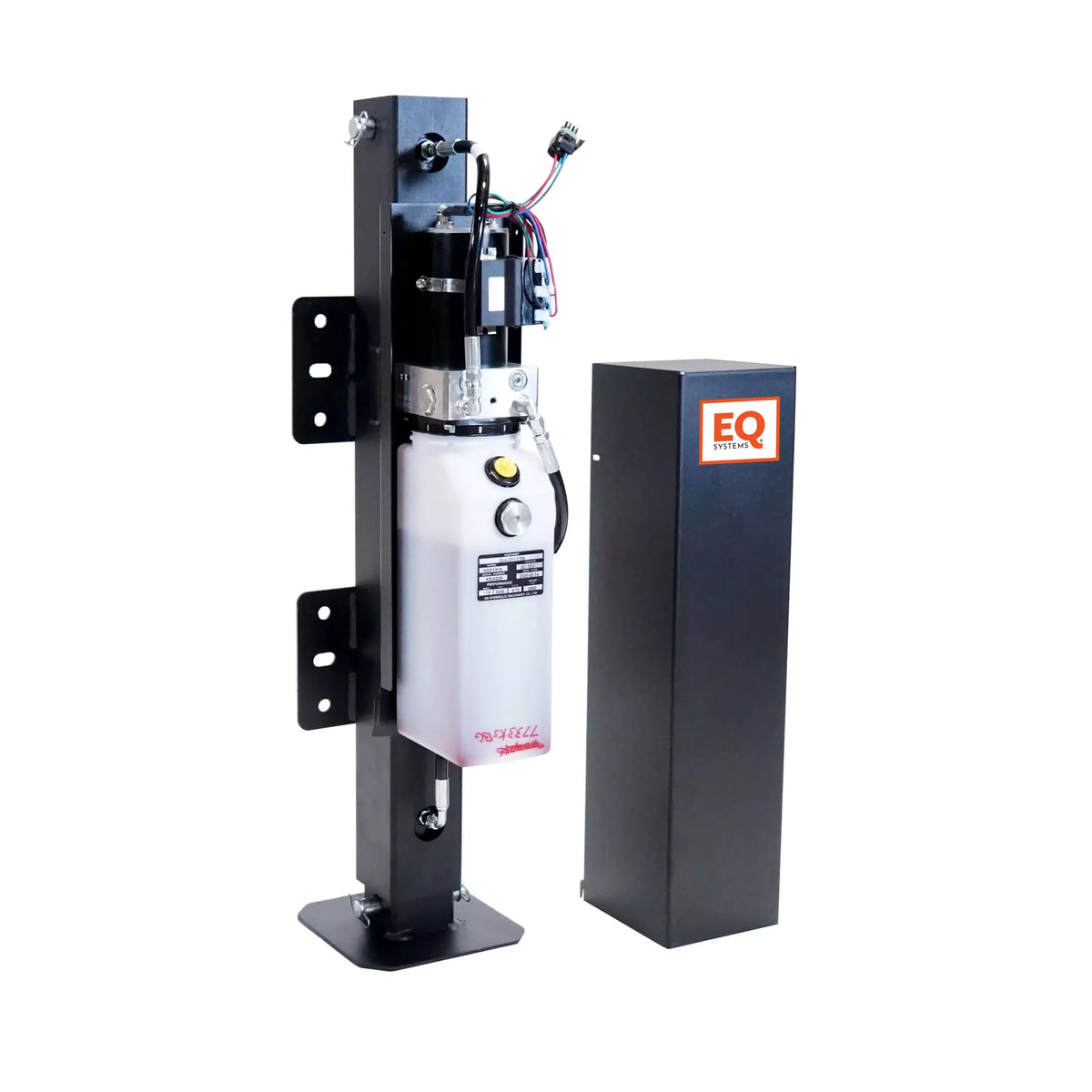

The EQ Systems AJ Hydraulic Trailer Jack 1/24 with Manual Override Screw Drive is a heavy-duty, single-leg hydraulic lifting system designed for dependable performance on gooseneck trailers. Engineered with an 8,000 lb lifting capacity and 24-inch stroke, this hydraulic trailer jack provides the strength and travel needed to raise and lower loaded trailers with minimal effort. Its rugged 3.5-inch x 3.5-inch square tube-in-tube construction provides a stable lifting platform and bolts directly to the center tube of compatible gooseneck trailers. The commercial-grade hydraulic pump and weatherproof rocker switch control eliminate the physical strain of traditional manual cranking, making trailer hookup and leveling more convenient. A built-in manual override screw drive allows operation with a compatible reversible drill if electrical power becomes unavailable. Designed for horse trailers, motorsports trailers, and cargo trailers with living quarters up to an 11-foot short wall, this system includes universal mounting brackets and durable electrical components for demanding environments. With weather-resistant controls, a protective steel pump cover, and reliable hydraulic performance, the AJ Hydraulic Trailer Jack offers a practical upgrade for frequent trailer use.
Key Features
• 8,000 lb Lifting Capacity: Heavy-duty hydraulic lifting system designed to handle loaded gooseneck trailers, including horse, motorsports, and cargo trailers.
• 24-Inch Hydraulic Stroke: Provides a 35.5-inch retracted length and 59.5-inch extended length for versatile trailer height adjustment.
• Heavy-Duty Tube-in-Tube Construction: Features a 3.5-inch x 3.5-inch square tube design for structural rigidity and dependable lifting performance.
• Commercial-Grade Hydraulic Pump: Single-function hydraulic pump provides powered lifting and lowering, reducing the effort required for trailer hookup and positioning.
• Manual Override Screw Drive: Allows emergency operation using a reversible drill capable of 2,000 RPM or greater and a 6mm (1/4-inch) Allen hex key if electrical power is unavailable.
• Weatherproof Rocker Switch Control: Includes a weather-resistant switchgear assembly with keyed ignition to provide convenient operation and help prevent unauthorized use.
• Durable Electrical Components: Wire harnesses feature PVC high-temperature nylon braid protection to resist heat and abrasion in demanding outdoor environments.
• Universal Mounting Brackets: Included mounting brackets simplify installation onto the center tube of compatible gooseneck trailers.
• Wireless Remote Compatibility: Supports an optional wireless remote control, Part #7823, for added convenience during trailer positioning and operation.
• Gooseneck Trailer Compatibility: Designed for single-leg applications, including trailers with living quarters measuring up to an 11-foot short wall.
Shipping
Ships free! Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.
Assembly and Installation: Installation is required. The hydraulic jack mounts to the center tube of a compatible gooseneck trailer using the included universal mounting brackets.
Important: This unit ships without hydraulic fluid or mounting bolts. Dexron III ATF hydraulic fluid and the appropriate mounting bolt kit must be purchased separately.
What's Included
• (1) EQ Systems AJ Series Single-Leg Hydraulic Trailer Jack with 24-inch stroke
• (1) Commercial Single-Function Hydraulic Pump with Manual Override Screw Drive
• (1) Protective Steel Hydraulic Pump Cover
• (1) Weatherproof Switchgear Control Assembly with Rocker Switch and Key
• Universal Mounting Brackets for Gooseneck Trailer Installation
• PVC High-Temperature Nylon Braid Protected Wire Harnesses
Not Included:
• Dexron III ATF Hydraulic Fluid
• Mounting Bolts or Mounting Bolt Kit
• Optional Wireless Remote Control, Part #7823
• Reversible Drill and 6mm (1/4-inch) Allen Hex Key for Manual Override Operation
Why You'll Love It
The EQ Systems AJ Hydraulic Trailer Jack makes lifting and positioning heavy gooseneck trailers easier by replacing time-consuming manual cranking with dependable hydraulic power. Its 8,000 lb lifting capacity and rugged square tube construction provide the strength and stability needed for demanding trailer applications. The weatherproof rocker switch and keyed control system offer convenient operation while helping protect against unauthorized use. A built-in manual override screw drive adds an important layer of reliability, allowing the jack to operate with a compatible drill if electrical power is lost. With universal mounting brackets, protected wiring, and a commercial-grade hydraulic pump, the system is designed for long-term performance in outdoor environments. Whether you're transporting horses, hauling motorsports equipment, or managing a trailer with living quarters, this hydraulic jack delivers practical convenience, durable construction, and dependable lifting performance.
Product Specifications
• Manufacturer: EQ Systems
• Product Name: AJ Hydraulic Trailer Jack 1/24 with Manual Override Screw Drive
• SKU: 8470UPS
• Product Type: Hydraulic Gooseneck Trailer Jack
• Series: AJ Series Tube-in-Tube
• Jack Configuration: Single Leg
• Lifting Capacity: 8,000 lbs
• Stroke Length: 24 inches
• Tube Dimensions: 3.5 x 3.5 inches
• Retracted Length: 35.5 inches
• Extended Length: 59.5 inches
• Hydraulic Cylinder Bore: 2 inches
• Pump Type: Commercial Single-Function Hydraulic Pump
• Manual Override Type: Screw Drive Output Shaft
• Manual Override Tool Requirement: 6mm (1/4-inch) Allen Hex Key
• Manual Override Drill Requirement: Reversible Drill, Minimum 2,000 RPM
• Control Type: Weatherproof Rocker Switch with Keyed Ignition
• Pump Cover Material: Steel
• Wire Harness Protection: PVC High-Temperature Nylon Braid
• Mounting Type: Bolt-On, Gooseneck Center Tube
• Mounting Brackets: Universal, Included
• Hydraulic Fluid Type: Dexron III ATF, Not Included
• Battery Performance Requirement: Minimum 150 Amperes at 10.5 VDC for at Least 30 Seconds
• Compatible Trailer Types: Gooseneck Horse Trailers, Motorsports Trailers, Cargo Trailers
• Recommended Living Quarters Size: Up to 11-Foot Short Wall
• Optional Wireless Remote: Part #7823, Sold Separately
• Replacement Hydraulic Cylinder: Part #2505EQ
• Mounting Bolts: Not Included
• Assembly Required: Yes
• Recommended Maintenance Interval: Every 12 Months
