6 Point Fifth Wheel EQ Smart-Level Hydraulic Leveling System
Description
The EQ Smart-Level 6 Point Hydraulic Leveling System is a complete, automatic leveling solution engineered specifically for fifth wheel trailers. It replaces both the electric front jacks and rear manual stabilizer jacks with a fully integrated hydraulic system, giving you precise, effortless leveling at the push of a single button. Designed to fit virtually every model of fifth wheel trailer, this system levels your rig to within half a degree in less than two minutes - no manual guesswork required.
This is the same commercial-grade leveling system trusted by leading RV manufacturers, now offered as an installer-friendly kit for dealers and service centers. Whether you're a full-time RVer, a seasonal camper, or managing a fleet, the EQ Smart-Level delivers the reliability, accuracy, and convenience that transforms the setup experience at every campsite.
Key Features
- One-Touch Auto Leveling: Automatically levels the trailer in less than two minutes with a single button press - no manual adjustments needed.
- 6-Point Hydraulic System: Two front jacks and four rear jacks provide full, stable support across the entire length of the fifth wheel.
- Bluetooth Connectivity: Compatible with iPhone and Android via the EQ Systems app, allowing wireless leveling control from your phone.
- Front Jack Independent Operation: The two front jacks can operate together or independently, making it easy to lift the trailer off the truck for hitching and unhitching.
- Level Accuracy to 1/2 Degree: Field-adjustable null point lets you set the exact level position you want, with the system maintaining accuracy to within half a degree.
- Commercial-Grade Pump with Manual Override: The four-function pump is heavy-duty commercial grade and includes a manual override in case of power failure.
- Weatherproof Wiring: All harnesses are protected by PVC-coated nylon braid with waterproof connectors for long-lasting, worry-free performance in any conditions.
- Auto All Retract: Automatically stows all rear jacks; front jacks retract independently after coupling to the truck for a streamlined departure routine.
- Audible and Visual Alerts: Built-in prompts notify you when leveling is in progress and when the process is complete.
- Sequential Leveling Process: Levels the trailer as low to the ground as possible, maximizing stability throughout the length of the vehicle.

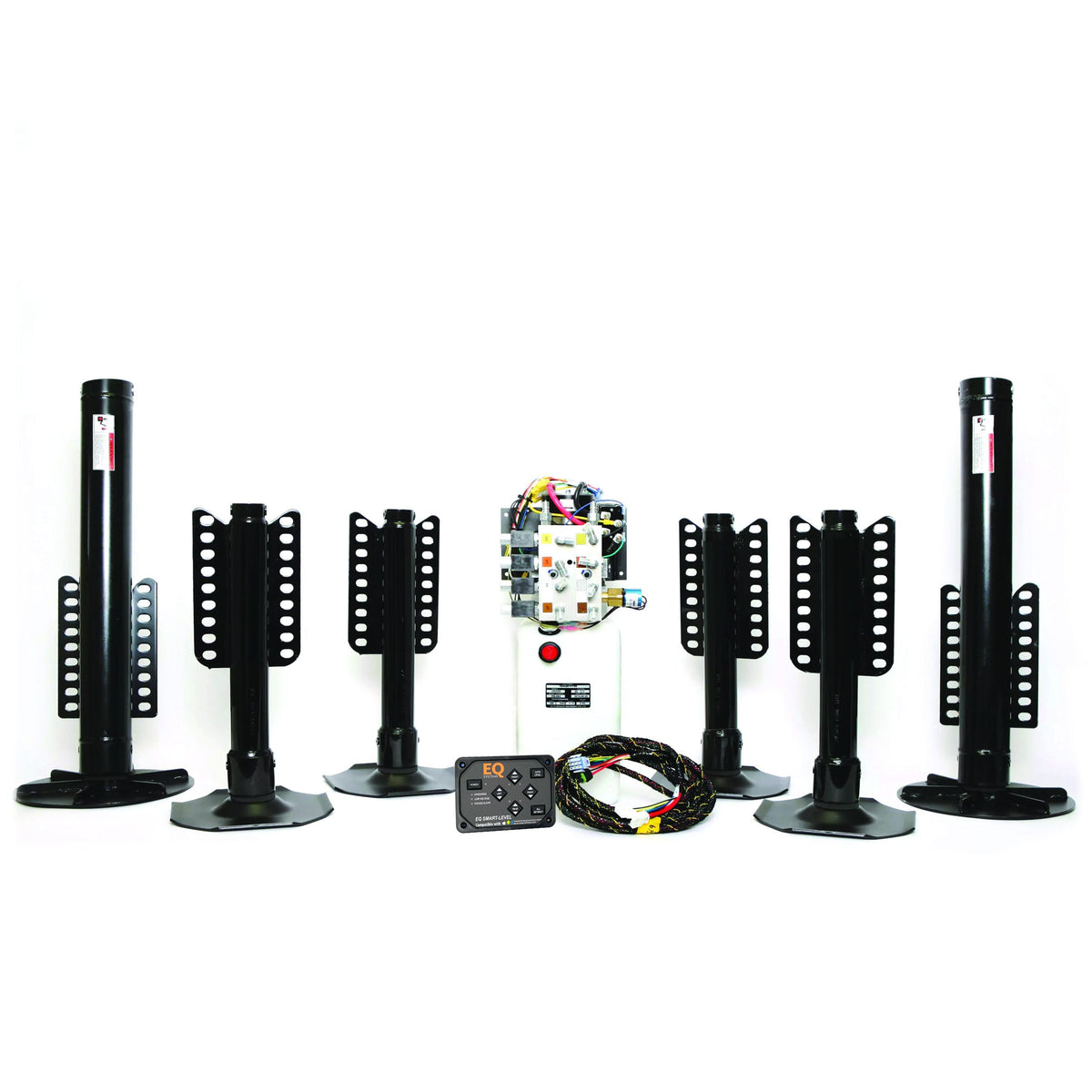

What's Included
- EQ Smart-Level control unit
- Two-switch manual control for front jacks
- Two 30-inch front jacks with 24-inch stroke and large foot pads
- Four 21-inch rear jacks with 16-inch stroke and large foot pads
- Four-function commercial pump with manual override
- Mounting bolts and brackets
- Main pump and control harness
- Four 10 ft hoses
- Eight 12 ft hoses
- Two 28 ft hoses
- Two 32 ft hoses
Why You'll Love It
The EQ Smart-Level system is trusted by top RV manufacturers for a reason - it's built to perform day in and day out, season after season, without compromise. The Bluetooth app control and one-touch automation mean you spend less time wrestling with leveling and more time enjoying your destination. The commercial-grade pump, waterproof wiring, and robust hydraulic jacks are engineered for years of dependable use, even under demanding conditions.
Manufactured by EQ Systems out of Cassopolis, Michigan, this is an American-made product backed by real engineering expertise and a dedicated support team. Whether installed by your local RV dealer or at the EQ Systems factory, you'll have confidence knowing this system fits virtually any fifth wheel on the market. It's the leveling upgrade that pays for itself in convenience, stability, and peace of mind every single time you set up camp.
Product Specifications
View Product Specs
| SKU | 8678UPS |
|---|---|
| System Type | 6-Point Hydraulic Leveling |
| Compatible Trailers | Fifth Wheel Trailers |
| Front Jacks | Two 30-inch jacks with 24-inch stroke and large foot pads |
| Rear Jacks | Four 21-inch jacks with 16-inch stroke and large foot pads |
| Pump Type | Four-function commercial grade with manual override |
| Level Accuracy | Within 1/2 degree of set null point |
| Wireless Connectivity | Bluetooth - compatible with iPhone and Android (EQ Systems app) |
| Fluid Type | Dexron or multipurpose automatic transmission fluid |
| Fluid Capacity | 10 to 16 quarts (full system) |
| Recommended Battery | Minimum Group 24 RV/Marine deep cycle, 100 min reserve capacity, 500 CCA |
| Low Voltage Warning | Below 10.5 volts |
| Wiring Protection | PVC-coated nylon braid with waterproof connectors |
| Manufacturer Location | Cassopolis, Michigan, USA |
| Installation | Professional installation recommended (RV dealer, service center, or EQ Systems factory) |
FAQ
Will this system fit my fifth wheel trailer?
The EQ Smart-Level 6 Point system is designed to work on just about every model of fifth wheel trailer. It replaces the electric front jacks and rear manual stabilizer jacks that come standard on most fifth wheels. If you're unsure about fitment for your specific rig, contact EQ Systems directly at 1-800-846-9659 and their team can confirm compatibility.
Can I still level manually if the automatic system fails?
Yes. The EQ Smart-Level control allows for full manual adjustment at any time. Additionally, the commercial-grade pump includes a manual override feature specifically designed for use in the event of a power failure, so you're never left stranded without the ability to manage your jacks.
What type of battery do I need to power this system?
EQ Systems recommends a minimum Group 24 RV or marine deep cycle battery rated at least 100 minutes reserve capacity and 500 cold cranking amps. Flooded lead acid, gel, and AGM battery types are all compatible. Note that some lithium batteries may not be able to deliver the running amperage these pumps require - check with your lithium battery manufacturer before connecting.
How long does automatic leveling take?
The system levels your fifth wheel trailer in less than two minutes with a single button press. Audible and visual prompts alert you when leveling is in progress and when the process is complete, so you always know exactly where things stand.
Can I control the system from my phone?
Yes - the EQ Smart-Level system features built-in Bluetooth connectivity and is compatible with the EQ Systems app on both iPhone and Android devices. This allows you to level your trailer wirelessly from your phone. Note that the previous EQ Systems app is no longer supported; make sure to download the current version of the app for full functionality.
Who can install this system?
Installation can be performed by most RV dealers or service centers. EQ Systems also offers factory installation at their facility in Cassopolis, Michigan, for those who prefer a factory-direct setup. The kit is designed to be installation-friendly and comes with all necessary mounting hardware, brackets, hoses, and harnesses.
