4 Point Fifth Wheel EQ Smart-Level Hydraulic Leveling System
Description
The EQ Smart-Level 4 Point Hydraulic Leveling System is a complete, automatic leveling solution engineered specifically for fifth wheel trailers. Replacing both your electric front jacks and rear manual stabilizer jacks, this system delivers a seamless, one-button leveling experience that gets your trailer perfectly level in a matter of minutes. The front two jacks operate together or independently, making it easy to lift the trailer off the truck for quick hitching and unhitching - no extra tools or manual effort required.
Built to the same standard used by leading RV manufacturers, the EQ Smart-Level kit is installation-friendly and compatible with virtually every fifth wheel model on the market. Bluetooth connectivity lets you level the coach directly from your smartphone, and the field-adjustable null point means the system levels to exactly the position you want, every time. Whether you're a weekend camper or a full-time RVer, this system brings professional-grade convenience and precision to your setup routine.
Key Features
- One-Touch Automatic Leveling: A single button press levels the entire trailer in minutes, using a sequential leveling process for maximum precision and stability.
- Bluetooth Connectivity: Level your coach remotely from your iPhone or Android phone using the EQ Systems app - no need to be at the control panel.
- Front Jack Independence: The two front jacks operate together or independently of the leveling system, allowing easy truck hookup and unhooking without disrupting your level.
- Auto All Retract: Automatically stows the rear jacks with a single command; front jacks retract independently after coupling to the truck.
- Field-Adjustable Null Point: Set the system to level at the exact position you prefer, with accuracy to within 1/2 degree of the set null.
- Commercial-Grade Pump with Manual Override: The heavy-duty four-function pump powers all four legs from a single unit, with manual override capability in case of power failure.
- Audible and Visual Prompts: The control panel provides real-time feedback during leveling and alerts you when the process is complete.
- Low Voltage Warning: Built-in low voltage alert activates below 10.5 volts to protect your battery and system.
- PVC-Coated Nylon Braid Harnesses: All wiring is protected by a durable PVC-coated nylon braid with waterproof connectors for long-term outdoor reliability.
- Universal Fifth Wheel Compatibility: Works with virtually every fifth wheel trailer model, replacing both electric front jacks and rear manual stabilizer jacks.

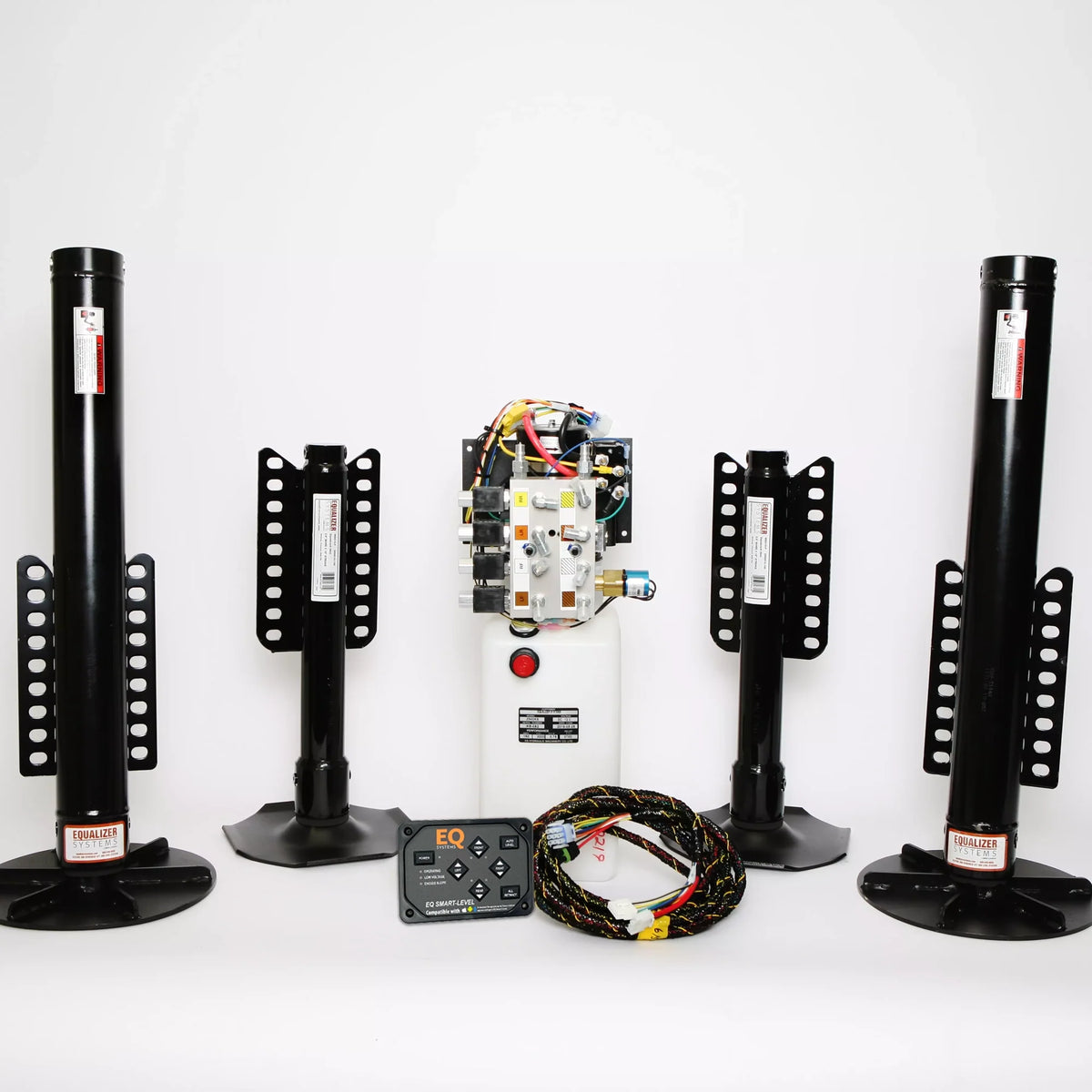

What's Included
- EQ Smart-Level control unit
- Two-switch manual control for front jacks
- Two 30-inch front jacks with 24-inch stroke and large foot pads
- Two 21-inch rear jacks with 16-inch stroke and large foot pads
- Four-function commercial pump with manual override
- Main pump and control harness
- Four 10-foot hoses
- Four 22-foot hoses
- Mounting bolts and brackets
Why You'll Love It
The EQ Smart-Level system is the same leveling technology trusted by leading RV manufacturers - now available as a dealer- and service-center-friendly installation kit. Its sequential leveling process keeps your fifth wheel as low to the ground as possible while achieving a more precise level throughout the vehicle's entire length, dramatically improving stability at your campsite. The Bluetooth app control and one-touch operation mean you spend less time wrestling with jacks and more time enjoying your destination.
Assembled and supported by EQ Systems out of Cassopolis, Michigan, this system is backed by American engineering and a support team reachable by phone for any installation or operational questions. From the waterproof wiring connectors to the heavy-duty commercial pump, every component is built to handle the demands of years of regular use in all conditions. For fifth wheel owners who want a reliable, set-and-forget leveling solution, the EQ Smart-Level is a purchase you'll appreciate every single trip.
Product Specifications
View Product Specs
| SKU | 8657UPS |
|---|---|
| System Type | 4-Point Hydraulic Automatic Leveling |
| Compatible Trailer Type | Fifth Wheel Trailers |
| Front Jack Size | 30 inches with 24-inch stroke |
| Rear Jack Size | 21 inches with 16-inch stroke |
| Hoses Included | Four 10-foot hoses and four 22-foot hoses |
| Pump Type | Four-function commercial pump with manual override |
| Leveling Accuracy | Within 1/2 degree of set null point |
| Bluetooth Compatibility | iPhone and Android via EQ Systems app |
| Low Voltage Warning Threshold | Below 10.5 volts |
| Recommended Battery | Group 24 RV or marine deep cycle, minimum 100 min reserve capacity, 500 CCA |
| Compatible Battery Types | Flooded lead acid, gel, AGM (check lithium compatibility with manufacturer) |
| Hydraulic Fluid | Dexron or multipurpose automatic transmission fluid |
| Fluid Fill Level | 1 to 1-1/2 inches below top of reservoir (jacks retracted) |
| Estimated Fluid Capacity | 10 to 16 quarts (full system) |
| Harness Protection | PVC-coated nylon braid with waterproof connectors |
| Manufacturer Location | Cassopolis, Michigan, USA |
| Installation | Installable by most RV dealers or service centers; factory installation available at EQ Systems facility |
FAQ
Will this system fit my fifth wheel trailer?
The 4 Point EQ Smart-Level system is designed to work with virtually every model of fifth wheel trailer. It replaces your existing electric front jacks and rear manual stabilizer jacks. If you have any questions about compatibility with your specific trailer, EQ Systems' support team is available by phone at 1-800-846-9659.
Can I install this system myself, or do I need a professional?
Installation can be completed by most RV dealers or qualified service centers. EQ Systems also offers factory installation at their facility in Cassopolis, Michigan, if you prefer a factory-done setup. It is not typically a DIY install for the average owner, so professional installation is recommended.
What battery do I need to power the EQ Smart-Level system?
EQ Systems recommends a minimum Group 24 RV or marine deep cycle battery rated at least 100 minutes reserve capacity and 500 cold cranking amps - the higher those numbers the better. Flooded lead acid, gel, and AGM batteries are all compatible. Some lithium batteries may not deliver sufficient running amperage, so check with your battery manufacturer before using one.
What happens if there is a power failure while the jacks are deployed?
The commercial-grade pump included with the EQ Smart-Level system features a built-in manual override capability. In the event of a power failure, you can use the manual override to retract the jacks without electrical power, ensuring you are never stranded with deployed jacks.
How does the Bluetooth leveling feature work?
The EQ Smart-Level system includes Bluetooth connectivity that pairs with the EQ Systems app, available for both iPhone and Android. Once connected, you can monitor and control the leveling process directly from your phone - no need to stand at the control panel. Note that the previous version of the app is no longer supported; download the current EQ Systems app for full functionality.
What type of hydraulic fluid does this system use?
The EQ Smart-Level system runs on Dexron or multipurpose automatic transmission fluid. Fill the reservoir to 1 to 1-1/2 inches below the top with the jacks fully retracted. A full system typically requires 10 to 16 quarts. Keep in mind that the fluid level will rise as the jacks retract, so do not overfill.
