2024-Current Toyota Tacoma Auxiliary Fuel Tank System 18 Gallon
Description

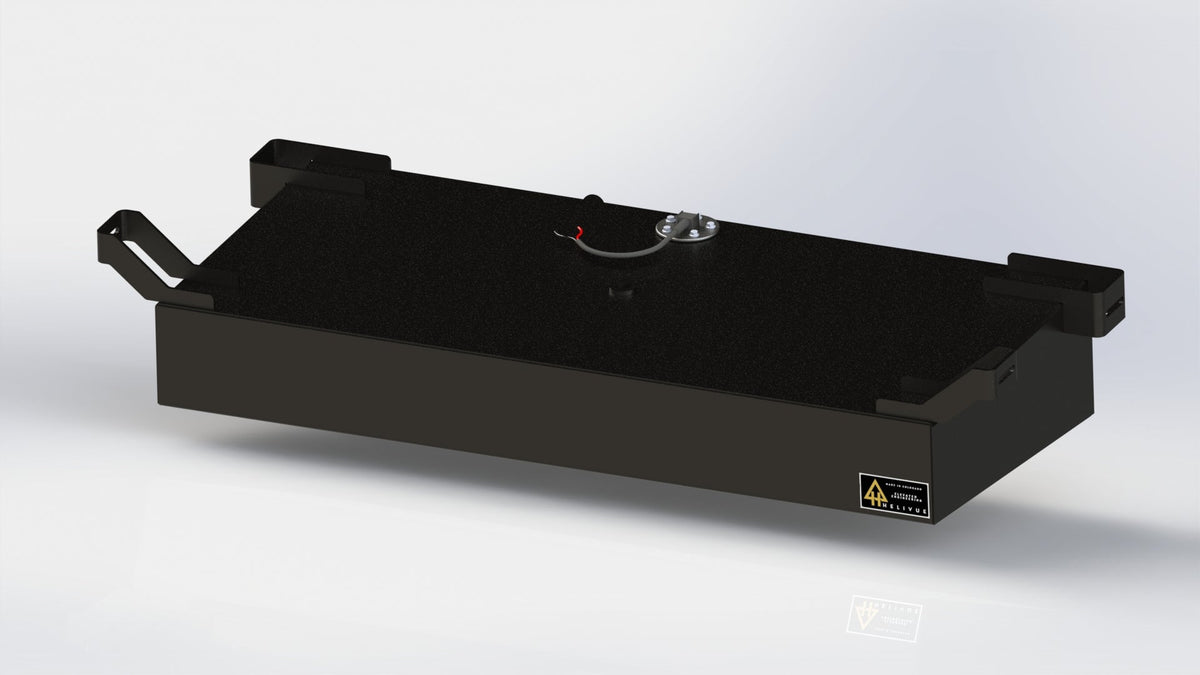

The Helivue Design 18 Gallon Auxiliary Fuel Tank System is a premium, no-compromise range extension solution built specifically for 2024 and newer Toyota Tacoma owners. Designed and manufactured in Colorado from thick 3mm 5052 aluminum, this system is engineered to handle everything from daily commuting to hard-core overlanding at elevation - tested extensively from 5,000 to 13,000 feet without failure. The tank tucks neatly above the bumper line, remaining nearly invisible while preserving your factory KDSS, Air Ride suspension, and Class 4 receiver hitch - no sacrifices required.
Filling is seamless: the auxiliary tank connects through your factory filler neck and fills simultaneously with your main tank, so there is no manual switching at the pump. When you are ready to transfer fuel on the trail or the road, the included programmable fuel transfer switch, quality fuel pump, and stainless steel fuel level sender make the process straightforward. This is an all-inclusive kit - every clamp, stainless steel fastener, and bung you need for installation is in the box.
Key Features
- 18-Gallon Capacity: Adds a full 18 gallons of gasoline range to your 2024+ Tacoma, dramatically extending overland and long-haul capability.
- 3mm 5052 Aluminum Construction: Thicker-than-standard aluminum alloy chosen for superior corrosion resistance and durability under rugged off-road conditions.
- Hammer Finish Powder-Coating: Tough, attractive hammer finish powder-coat provides long-lasting protection against the elements and trail abuse.
- OEM Split Fill Point: Fills through the factory filler neck, simultaneously topping off both tanks at once - no extra steps at the pump.
- Preserves Factory Features: Compatible with KDSS, factory Air Ride suspension, and Class 4 receiver hitch - no compromises to your truck's existing capabilities.
- High-Clearance, Low-Profile Design: Tucks above the bumper line and keeps all factory evap systems in place, staying nearly invisible on the truck.
- Bolt-In Installation: Bolts into existing frame locations with almost no modification required - estimated install time is approximately 5 hours.
- Complete Transfer System Included: Kit includes a programmable fuel transfer switch, fuel level gauge, quality fuel pump, and stainless steel fuel level sender.
- Spare Tire Relocation: Spare tire relocation is accommodated in the installation.
- 100% USA Designed and Built: Entirely designed, manufactured, and tested in Colorado by Helivue Design.
Shipping
Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.
What's Included
- 18-gallon 5052 aluminum auxiliary fuel tank
- Programmable fuel transfer switch with fuel level gauge
- Quality fuel pump
- Stainless steel fuel level sender
- Stainless steel clamps
- Stainless steel hardware
- Bung
Why You'll Love It
If you've ever cut an overland trip short because of range anxiety or spent hours hunting for fuel in remote terrain, the Helivue Design Auxiliary Fuel Tank System is the upgrade that changes everything. Built with the same attention to detail demanded by Colorado's most technical trails, this system has been beaten, bashed, and landed on repeatedly - and it keeps delivering. Every component is sourced and assembled in the USA, giving you the confidence that comes with domestically manufactured quality.
Whether you're a commuter looking to slash fuel stops or an overlander pushing deep into the backcountry, this tank slots into your Tacoma without costing you the features you rely on. The near-invisible profile, factory-compatible fill system, and included transfer hardware mean you get maximum range with minimum hassle. It's a serious piece of kit for serious Tacoma owners who refuse to compromise.
Product Specifications
View Product Specs
| Tank Type | Auxiliary |
|---|---|
| Capacity | 18 Gallons |
| Fuel Type | Gasoline |
| Material | 3mm 5052 Aluminum |
| Finish | Hammer Finish Powder-Coat |
| Weight (Dry) | 25 lbs |
| Weight (Wet) | 133 lbs |
| Fill Point | OEM Split (factory filler neck) |
| Spare Tire Relocation | Yes |
| Recommended Install Time | ~5 hours |
| Compatibility | Toyota Tacoma 2024 - Current |
| Country of Origin | USA (Colorado) |
FAQ
Will this tank fit my 2024 Tacoma if I have KDSS or factory Air Ride?
Yes - this system is specifically designed to preserve your factory KDSS and Air Ride suspension. It was engineered so that Tacoma owners do not have to sacrifice any factory features to gain the extra range.
Do I need to do any major modifications to my truck to install this tank?
Almost none. The tank bolts directly into existing frame locations. The one modification required is removing the rearmost section of the factory exhaust tail pipe - either by replacing it with an aftermarket turndown pipe (such as one from SXTH Element) or by cutting the factory pipe down. Estimated install time is approximately 5 hours.
How does the tank fill up - do I have to do anything differently at the pump?
No extra steps needed. The auxiliary tank fills through your factory filler neck and fills simultaneously with your main tank. Just fill up as you normally would, and both tanks fill at the same time.
How do I transfer fuel from the auxiliary tank to the main tank?
The kit includes a programmable fuel transfer switch with a fuel level gauge, a quality fuel pump, and a stainless steel fuel level sender. When you are ready to transfer fuel, you simply use the transfer switch to pump fuel from the auxiliary tank into the main tank. Everything you need is included in the kit.
When will this product ship?
Delivery is expected to begin August 2026. Please email us at service@omahasportsandgames.com for the most up-to-date shipping timeline or to confirm availability.
Is this tank compatible with the Class 4 receiver hitch?
Yes. The Helivue Design system was specifically engineered to keep your Class 4 receiver hitch fully functional and unobstructed. The tank tucks above the bumper line to stay out of the way of your hitch and factory components.
