2024 - 2025 RZR XP- Long Travel Kit
Description
The L&W Fab Long Travel Kit is the definitive suspension upgrade for your 2024-2025 Polaris RZR XP1000, engineered to transform your machine's stance, stability, and trail capability. By adding 4 inches to each side, this kit stretches your RZR from its stock 64" width to an aggressive 72" width - giving you a planted, confidence-inspiring footprint on any terrain. Every component is purpose-built for high-clearance performance, from the 1.5" DOM steel A-arms to the billet aluminum radius rods, making this a kit that's built to last through the most demanding rides.
Designed as a true bolt-on solution with no drilling required, this kit keeps your factory shock locations intact and is compatible with stock A-arm bushings and ball joints - so you get a dramatic performance upgrade without a complicated install. Whether you're running desert trails, rock crawls, or wide-open dunes, the L&W Fab Long Travel Kit gives your XP1000 the wider stance and high-clearance geometry it was always meant to have. Made in the USA and backed by L&W Fab's commitment to tested and proven parts with a lifetime warranty, this is the upgrade serious RZR owners trust.
Key Features
- +4" Per Side Width Increase: Expands your RZR XP1000 from 64" to 72" total width with stock offset wheels for a dramatically more stable stance.
- Bolt-On Installation: No drilling required - mounts directly to your 2024-2025 RZR XP1000 using existing factory shock locations.
- 1.75" Forward Front A-Arms: Forward offset design improves geometry and handling; upper A-arms are fully adjustable for fine-tuned alignment.
- 1.5" DOM Steel A-Arms: High-clearance construction using drawn-over-mandrel steel tubing for exceptional strength and rigidity under hard use.
- High Clearance Billet Aluminum Radius Rods: Lightweight and strong, with adjustable uppers for precise rear suspension tuning.
- HD Rebuild-able Tie Rods: Set of tie rods with L&W heavy-duty rebuild-able inner joints for long-term serviceability.
- High Clearance Steel HD Trailing Arms: Engineered for maximum ground clearance and durability in rough terrain.
- Factory Compatibility: Works with stock A-arm bushings and stock size ball joints - no need to replace your existing hardware.
- Powder Coated Steel Components: A-arms and trailing arms arrive powder coated; optional powder coating available for radius rods at an additional charge.
- Lifetime Warranty: Backed by L&W Fab's lifetime warranty on the kit - made 100% in the USA.

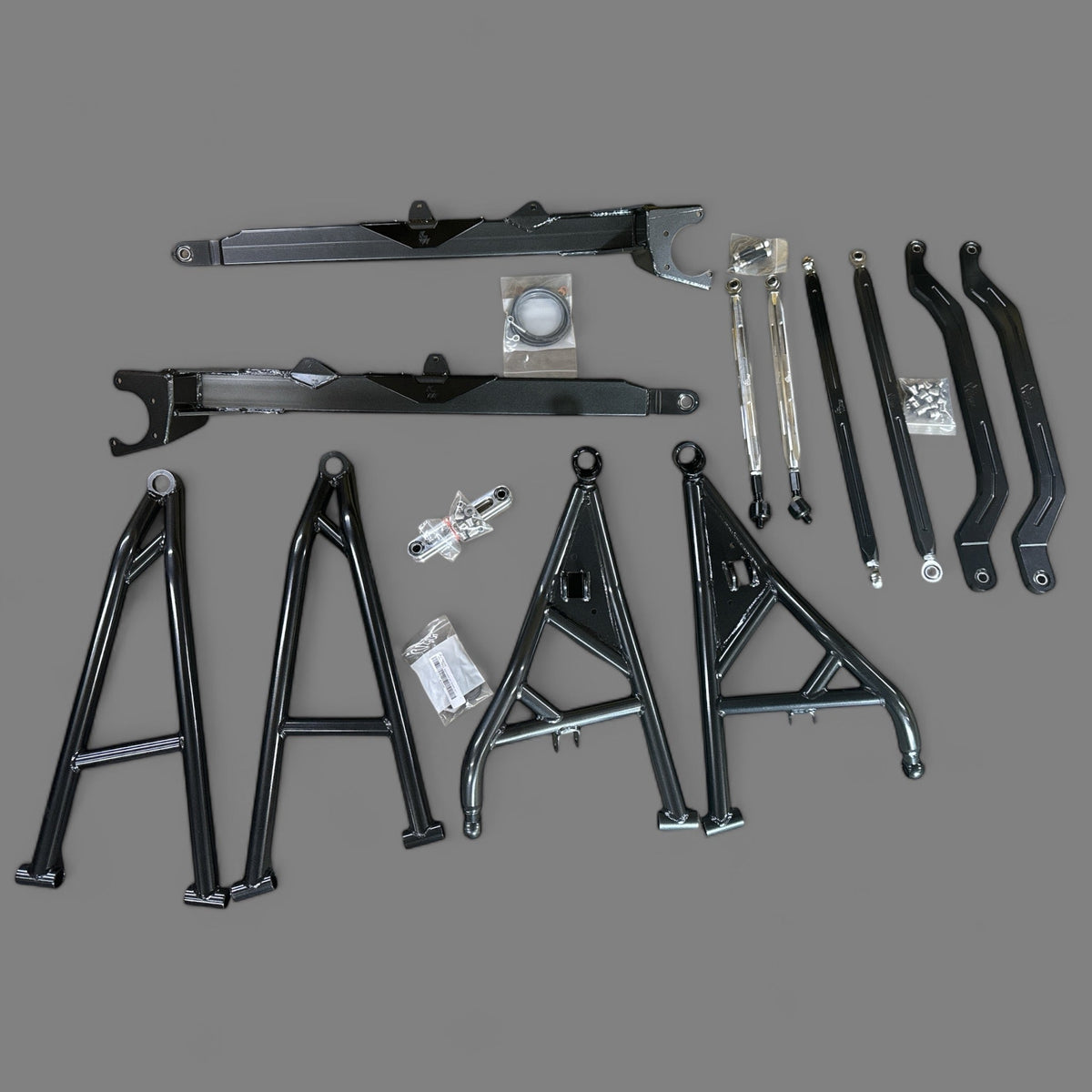

What's Included
- 1.75" Forward Front Upper and Lower A-Arms (uppers are adjustable)
- Set of Tie Rods with L&W HD rebuild-able inner joints
- High Clearance Steel HD Trailing Arms
- High Clearance Billet Aluminum Radius Rods with adjustable uppers
- Rear Sway Bar Links
- (1) Extended brake line for front passenger side
Why You'll Love It
The L&W Fab Long Travel Kit is trusted by RZR enthusiasts who refuse to settle for a stock setup when the trails demand more. Built and tested in the USA, every component in this kit reflects the kind of no-compromise engineering that serious off-road riders expect. The wider stance doesn't just look aggressive - it fundamentally changes how your RZR handles, keeping all four tires planted through ruts, whoops, and side-hills where a stock machine would be pushed to its limits. Because it retains your factory shock locations and works with your existing bushings and ball joints, you're not throwing away what already works - you're building on it. Backed by a lifetime warranty, this is a long-term investment in your machine's performance and your confidence behind the wheel. Whether you're a weekend warrior or putting serious miles on your RZR, this kit is built to go the distance with you.
Product Specifications
View Product Specs
| Fitment | 2024-2025 Polaris RZR XP1000 |
|---|---|
| Width Increase | +4" per side (64" stock to 72" total with stock offset wheels) |
| Front A-Arm Offset | 1.75" forward offset |
| A-Arm Tubing | 1.5" DOM steel, high clearance |
| Radius Rods | High clearance billet aluminum with adjustable uppers |
| Shock Location | Factory (no relocation required) |
| Ball Joint Compatibility | Stock size ball joints only (not compatible with Mega Ball Joints) |
| Required Wheel Size | 15" wheel, OR use a 1" wheel spacer |
| Axles Required (Not Included) | Rhino 2.0 XP Long Travel Axles - SATV Part # AX-1-102-F-LT4-DT |
| Finish | Steel parts (A-arms and trailing arms) powder coated; optional powder coat for radius rods |
| Drilling Required | No |
| Warranty | Lifetime warranty |
| Made In | USA |
FAQ
Do axles come included with this long travel kit?
No - axles are not included with this kit. You will need the Rhino 2.0 XP Long Travel Axles (SuperATV Part # AX-1-102-F-LT4-DT) to complete your setup. These are available separately and are specifically designed to work with this L&W Fab Long Travel Kit.
Will this kit work with my factory shocks?
Yes. This long travel kit is designed to keep your factory shock location, so you do not need to replace or relocate your shocks. It is also compatible with your stock A-arm bushings and stock size ball joints, making for a clean and straightforward upgrade.
What wheel size do I need to run with this kit?
With this long travel kit installed, you will need to run a 15" wheel. Alternatively, you can use a 1" wheel spacer with your existing wheels. Make sure to account for this when planning your build.
Is this kit compatible with Mega Ball Joints?
No - this kit is designed for stock size ball joints only and is not offered for Mega Ball Joints. If you have or plan to run Mega Ball Joints, this kit would not be compatible.
How difficult is it to install the L&W Fab Long Travel Kit?
This kit is designed as a bolt-on installation with no drilling required. That said, suspension modifications on a performance UTV can be involved, and proper alignment after installation is critical. If you are not experienced with UTV suspension work, professional installation is recommended to ensure everything is set up correctly and safely.
Can I get the radius rods powder coated to match the rest of the kit?
Yes - the steel components (A-arms and trailing arms) come powder coated as standard. Powder coating for the billet aluminum radius rods is available as an add-on for an additional charge. Check available options at the time of purchase.
