HyperJam 60" & 72" Wall Mount Hoop Installation Guide
Everything you need to safely install your HyperJam Adjustable Wall Mount Basketball Hoop. The installation process is identical for both the 60" and 72" models — only the backboard size differs.
Download Installation Manual (PDF)Installation Video
Watch the full installation walkthrough (coming soon)
Safety Information
Failure to follow these instructions may result in serious injury, death, or property damage.
- Do not install or use this system without carefully reading all instructions.
- Consulting a licensed contractor or structural engineer prior to installation is highly recommended.
- Minimum three people required for installation.
- Do not hang or climb on the rim or backboard.
- Inspect system before each use.
Before You Begin
We strongly recommend consulting a licensed contractor or structural professional to determine the appropriate anchoring system for your specific wall construction. Improper installation or mounting to an inadequate structure may result in system failure, which could cause property damage, serious injury, or death. The manufacturer assumes no responsibility for damage or injury resulting from improper installation or insufficient structural support.
Installation Requires
- 3 capable adults
- Ability to safely lift components weighing up to 106 lbs (48 kg)
- Estimated installation time: 2-3 hours
Tools Required (Not Included)
- Hammer drill (for concrete or masonry installations)
- Appropriate drill bits (based on wall type)
- 4 ft level
- Tape measure
- Socket set and wrench set
- Torque wrench
- Ladder
- Safety glasses
Improper mounting can result in serious wall damage, severe personal injury, or death. The bracket must be anchored to a structural wall backing capable of supporting the full dynamic load of play.
The mounting surface behind your wall finish must be able to support the full dynamic load of play. Verify your wall type before purchasing fasteners.
Suitable Backing
- Solid concrete (min. 4" thick)
- Reinforced concrete masonry units (CMU / cinder block)
- Solid brick (structural, not veneer)
- Wood framing with 2×6 or larger studs, 16" or 24" on center
- Steel I-beam or structural steel column
Not Suitable
- Drywall or plaster alone (no structural framing behind)
- Brick veneer without solid backing behind it
- Paneling, siding, or stucco without structural substrate
- Hollow-core or non-load-bearing walls
- Metal stud framing (consult a licensed contractor)
Structural Mounting Requirements
This system must be installed into a structurally sound wall capable of supporting dynamic loads generated during play (minimum 1,000 pounds of downforce.) The installer is solely responsible for verifying:
- Wall structural integrity
- Proper anchor selection
- Compliance with local building codes
Wall Backing Specifications
Detailed requirements by wall type — 1,000 lbs downward force capacity minimum
Stud Spacing & Backing Zone
Minimum Backing Thickness
Proper Wall Backing for Sheetrock Walls
During framing: Have a carpenter install backing inside the designated stud cavities before sheetrock is finished.
Retrofit (finished room): If backing is missing behind existing sheetrock, install 2"x10" or 2"x12" clear lumber horizontally on the outside of the wall. Boards must be doubled to allow sufficient anchor engagement and cut long enough to fasten into 3 studs. LVL (laminated veneer lumber) is also permitted.
- Locate the center of the wall that the hoop is going on.
- From the floor, measure 88" and 120" and fill this entire area with 2"x10" or 2"x12" clear lumber that is defect free from knots, cracks, warping, or cuts.
- Backing must fill the entire stud cavity from front to back and be a minimum 3 inches thick.
- Make sure all backing is installed horizontally and properly secured to a stud.
- The basketball bracket is 17 3/4" wide. Make sure there is proper backing in all stud cavities that are in this area.
- The backing must be able to withstand 1,000 lbs of downward force. Consult a structural engineer for assistance.
- If there is a ledge on the wall where the hoop will be installed, the wall must have a box build-up from the ledge to reach the required backing height. The bracket must be flush on the wall.
Proper Wall Backing for Concrete Walls
- Concrete walls that are solid 8 inches thick and built at the correct height of the hoop do not need additional backing. If concrete walls are not 8" thick, consult a structural engineer.
- If the concrete wall does not go up all the way to meet the required backing height specifications, proper backing must be added above the concrete to reach the backing specifications.
- The backing must be able to withstand 1,000 lbs of downward force. Consult a structural engineer for assistance.
Hollow or Cinderblock Walls
Consult a structural engineer before installing any portion of this product.

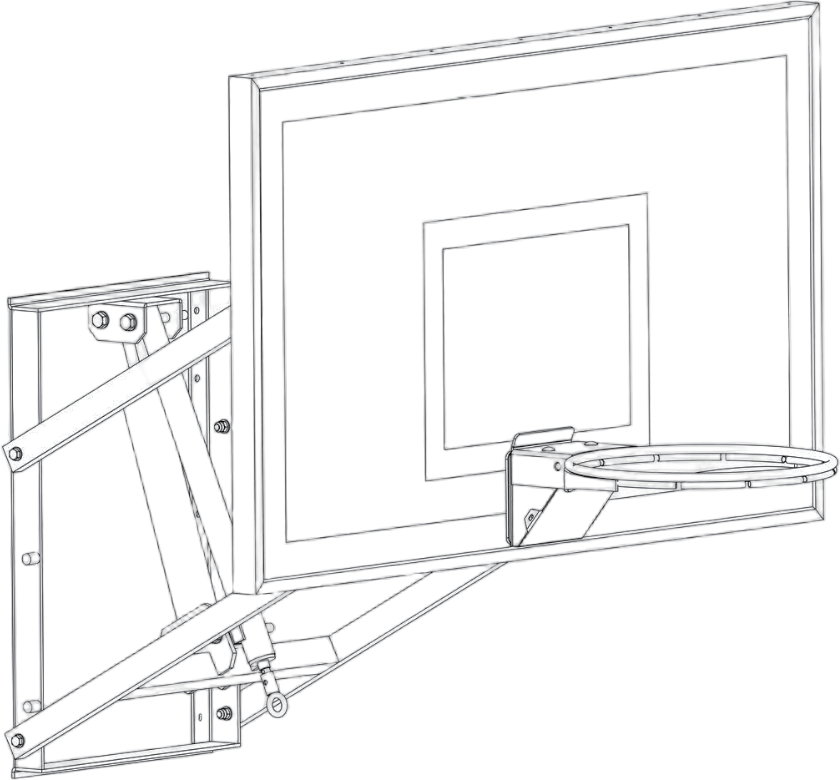

Assembly Parts List
| NO. | Description | Qty |
|---|---|---|
| A | Wall Frame | 1 |
| B | Upper Extension Arm | 1 |
| C | Lower Extension Arm | 1 |
| D | Spring-Assist Cartridge | 1 |
| E | Height Actuator | 1 |
| F | Backboard (60" x 36" or 72" x 42") | 1 |
| G | Rim | 1 |
| H | Height Sticker | 1 |
Technical Specifications
| Model | Backboard Size | Height Range (A) | Overhang at 10' (B) | Overhang at 7.6' (B) | Bottom of Frame Height (C) |
|---|---|---|---|---|---|
| W-72 | 72" x 42" | 7.5' ~ 10' | 39" | 43" | 94-1/4" |
| W-60 | 60" x 36" | 7.5' ~ 10' | 39" | 43" | 94-1/4" |
Dimensional reference: (A) adjustable height range, (B) overhang from wall, (C) bottom of frame height from playing surface
Installation Instructions
Mount Wall Frame
- Determine where to place the frame on your wall.
- Measure 83.5" from the playing surface and mark a horizontal reference line.
- Position Wall Frame (A) with bottom aligned to mark, using a level to ensure frame is perfectly vertical and horizontal.
- Mark anchor hole locations with a marker.
- Set Wall Frame (A) down, and drill holes into wall, then insert wall anchors (#1) into the holes.
- Place Wall Frame (A) on the wall, securing with 12 sets of (#2), (#3), and (#4) washers and bolts.
Wall Frame Mounting Diagram
Install Extension Arms
- Attach Upper Arms (B) and Lower Arm (C) to Wall Frame (A) using specified hardware shown.
- Attach Upper Arms (B) to Wall Frame (A) using specified hardware shown.
- DO NOT fully tighten yet for adjustment.
- Attach Lower Arm (C) to Wall Frame (A) using specified hardware shown.
- Tighten all fasteners, but make sure free movement is maintained at pivot points.
Upper & Lower Extension Arm Installation
Hardware Guide for Arm Installation
Install Height Actuator & Spring Assist
- *IMPORTANT* - DO NOT REMOVE THE SPREADER TUBE ON THE SPRING ASSIST UNTIL THE ENTIRE HOOP, INCLUDING BACKBOARD, IS FULLY INSTALLED. Attach Spring Assist (D) to Wall Frame (A) and Lower Extension Arm (C) using two sets of #11, #7, #8, #8, #7, #9, as shown.
- Attach Height Actuator (E) to Wall Frame (A) and Lower Extension Arm (C) using two sets of #11, #7, #8, #8, #7, #9, as shown.
Height Actuator & Spring Assist Diagram
Install Triangle Brackets on Backboard
- Remove Backboard (F) from box.
- Attach 4 triangle brackets to the backboard using twelve M8×40 bolts, four flat washers, and 12 locknuts, as shown in FIG 6.
FIG 6 — Triangle Bracket Installation
Attach Backboard
- IMPORTANT: Minimum three people are required for this step.
- Crank Extension Arm (C) as low as possible.
- Attach Backboard (F) to Lower Extension Arm (C) using hardware shown.
- Attach Backboard (F) to Upper Extension Arms (B) using hardware shown.
Backboard Attachment Diagram
Rim Assembly
- Mount Rim (G) to the mounting bracket on backboard using four sets of hardware #13, #2, #3, and #4, as shown.
- NOTE: Put the rubber gasket between the rim and backboard.
- Attach the spring box cover to the rim with two sets of #14 and #15 as shown.
- Fix the net on the rim by twisting net loops 90 degrees clockwise and inserting through assigned rim attachments and cover hooks on the underside of the rim.
Rim Assembly & Net Installation
Height Sticker
- To apply the sticker (H) first use a tape measure to crank the rim to exactly 10 ft from the playing surface.
- Use a pencil to make a mark on the Height Actuator (E) where the bottom of the height indicator stops. Then peel and apply the Height Sticker on the Height Actuator, lining up the pencil mark with the 10 ft mark.
Height Sticker Placement
Final Inspection
Before using the system for the first time, perform the following checks. Do not use the system if any components appear loose, damaged, or improperly installed.
- Verify that all nuts, bolts, and fasteners are fully tightened.
- Confirm that the wall frame is securely anchored and does not move when force is applied.
- Ensure all pivot points move freely without binding.
- Raise and lower the system through the full height range to confirm smooth operation.
- Confirm that the rim and backboard are level and properly aligned.
Routine Maintenance
Environmental conditions, usage frequency, and exposure to elements can affect the performance and lifespan of your basketball system. Factors such as moisture, salt, fertilizers, pesticides, and general wear may contribute to corrosion or component fatigue. To ensure safe operation, inspect the system regularly and perform the following maintenance checks.
Hardware Inspection
- Periodically inspect all nuts, bolts, and mounting hardware.
- Tighten any loose fasteners.
- Inspect threads and replace any damaged hardware.
Structural Inspection
- Inspect all frame components, arms, and mounting brackets for signs of excessive wear, bending, or damage.
- Replace any damaged or excessively worn components immediately.
Rust and Paint Protection
- Inspect all metal components for rust, corrosion, chipped paint, or exposed metal.
- If corrosion or paint damage is present, clean the affected area and apply rust protection and touch-up paint as needed.
- If rust or corrosion has penetrated any structural component, discontinue use immediately and replace the affected parts.
Replacement Parts
- Use only manufacturer-approved replacement parts.
- Use of non-approved components may cause system failure, resulting in serious injury or property damage, and will void the product warranty.
- For replacement parts or assistance, contact customer support.
