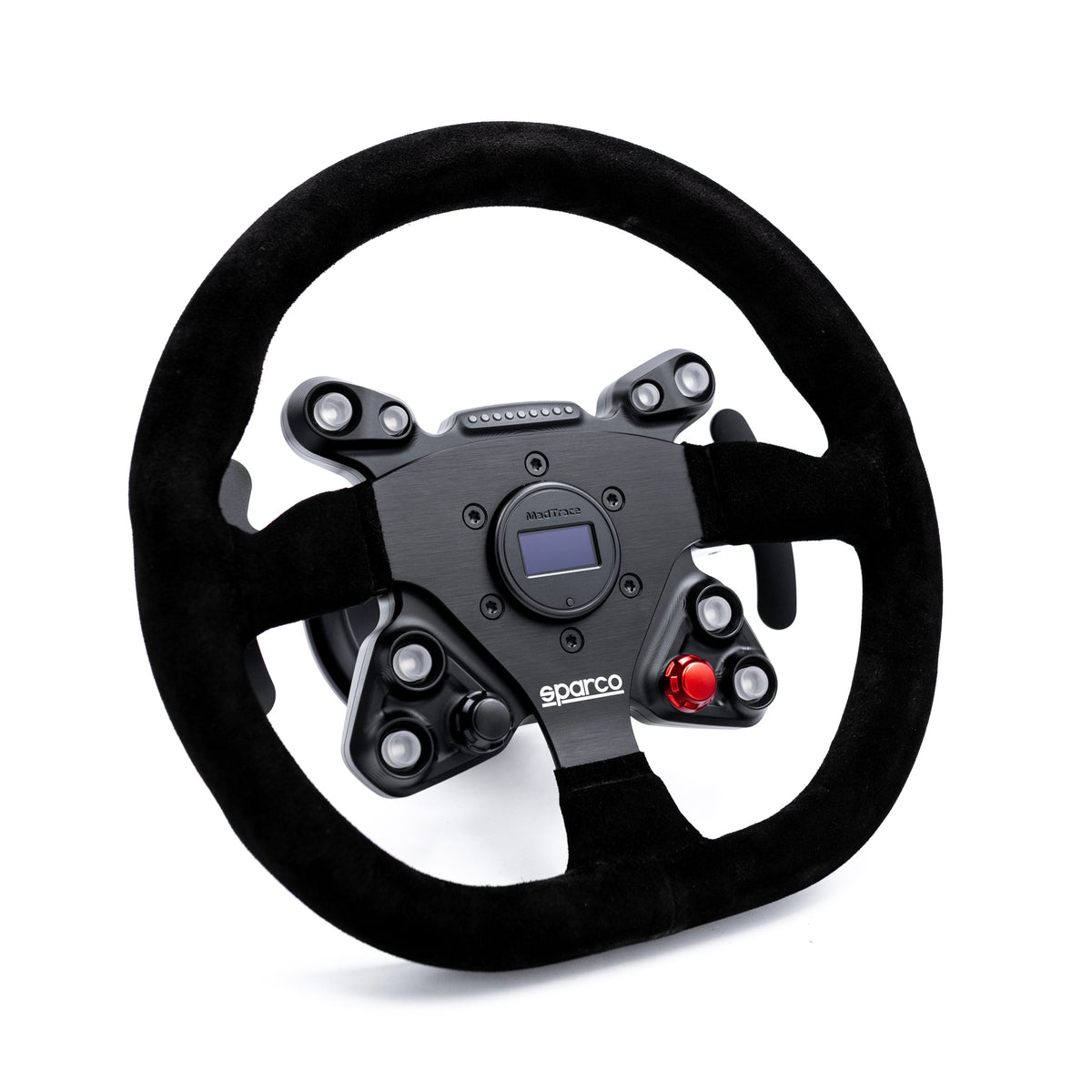

Madtrace® GEN2 PODIUM LINE Racing Steering Wheel System For TOYOTA SUPRA A90 Chassis
Description
The Madtrace® GEN2 PODIUM LINE Racing Steering Wheel System is a precision-engineered motorsport hub system purpose-built for the Toyota Supra A90/A91 chassis. As the first system in the industry to combine both CAN bus and LIN bus technologies in a single hub, it delivers flawless communication with your factory electronics - no splicing, no wiring, just true plug-and-play functionality. Whether you're attacking a track day, competing in a time trial, or running a full race season, the PODIUM LINE puts every critical vehicle function right at your fingertips on the wheel.
Machined from 6061-T6 billet aluminum using 5-axis CNC technology and finished in black anodizing, every component of this system is built to the same exacting standard. The hub, quick release, and adapter are all matched in material and finish for a cohesive, premium look and feel. With fully customizable button mapping, multi-profile storage, RGB backlighting, RevLEDs CAN bus shift lights, and optional OLED Driver Information Display, the PODIUM LINE is the most capable and driver-focused steering wheel system available for the A90 Supra platform.
Key Features
- Dual-Bus Integration (CAN + LIN): The first steering wheel hub system to combine both CAN bus and LIN bus in a single unit - ensuring complete, seamless factory electronics communication on the A90 Supra.
- Over 20 OEM CAN Bus Functions: Access high beam flash, wipers, turn signals, TC adjustment, center console functions, advanced race control, and much more - all from the wheel.
- 6061-T6 Billet Aluminum Construction: Hub, quick release, and adapter hub are all precision CNC machined from 6061-T6 aluminum and finished in black anodizing for strength and durability.
- 5-Axis CNC Machining: Precision 5-axis machining ensures exact tolerances, a perfect fit, and a premium look and feel throughout the entire system.
- 8 Front-Facing Programmable Buttons + Dual Joystick Knobs: Every button and knob is fully remappable via MadtraceLAB software or the optional OLED DID, giving drivers complete layout control.
- 3 Onboard Profile Slots: Store up to three fully customizable button map and LED lighting profiles in the hub's internal memory - switchable on the fly with a single press of the rear-mounted switch.
- RevLEDs CAN Bus Shift Lights: Zero-delay shift lights pull RPM data directly from the CAN bus; all LEDs flash red at redline for instant, accurate shifting cues.
- MadtraceLAB Software + USB-C Port: Configure button layouts, update firmware, and expand features via MadtraceLAB. The discreet USB-C port future-proofs the hub for ongoing updates.
- Optional OLED Driver Information Display (DID): Replaces the standard horn cap to show real-time speed, allow on-the-fly profile switching, and let drivers customize RGB button colors and display brightness - no computer needed.
- Optional Motorsport-Grade Dual Paddle Shifters: Billet 6061-T6 aluminum dual paddles (all four fully programmable) support both AT and MT Supra variants - the first dual-paddle system of its kind for OEM road cars.
- Track and Competition Use Only: Designed exclusively for off-road, track, racing, and competition use. Requires removal of the factory airbag - a 6-point racing harness and roll bar are strongly required.
Market & Transmission Options - Which to Choose
- North America 8AT (SKU: RSWGEN2PDA90ATNA): For North American market Toyota Supra A90 models equipped with the 8-speed automatic transmission. The base kit does not include paddle shifters; single or dual magnetic paddles can be added.
- North America 6MT (SKU: RSWGEN2PDA90MTNA): For North American market Toyota Supra A90 models equipped with the 6-speed manual transmission. Paddle shifters can be added to enable additional programmable functions beyond shifting.
- Rest of World 8AT (SKU: RSWGEN2PDA90ATROW): For international market A90 Supra with the 8-speed automatic transmission. Same full feature set as the NA variant, tuned for ROW vehicle electronics.
- Rest of World 6MT (SKU: RSWGEN2PDA90MTROW): For international market A90 Supra with the 6-speed manual transmission. Supports all paddle add-on options and full programmable function mapping.
What's Included
- 1x PODIUM Line Control Hub Unit
- 1x Quick Release Base with Integrated Chassis PCB
- 1x CAN Bus Integration Module
- 1x Harness Kit
- 1x Resistor
- 1x Adapter Hub
- 1x Adapter Hub Locking Wrench
- 1x Trim Removal Tool
- 1x Hardware Kit
- 1x Allen Key
- 1x Button Stickers
- 1x JQ Werks / Madtrace Stickers
Why You'll Love It
The Madtrace® GEN2 PODIUM LINE is the definitive steering wheel system for Toyota Supra A90 drivers who demand the best from their track build. The true plug-and-play installation means no cutting, no splicing, and no guesswork - just a clean, professional fit that preserves your car's factory wiring integrity. With three storable driver profiles and instant on-the-fly switching, the system adapts as fast as you do, whether you're tuning for a wet morning session or a dry afternoon qualifying run. The optional OLED DID brings real-time telemetry and full system control to the center of the wheel, eliminating the need to ever leave the cockpit to make adjustments. Trusted by serious track drivers and motorsport competitors, the PODIUM LINE is engineered to perform at the highest level session after session. If you're building a focused, capable A90 Supra track car, this is the system that ties it all together.
Product Specifications
View Product Specs
| Brand | Madtrace (JQ Werks) |
|---|---|
| Generation | GEN2 |
| Vehicle Fitment | Toyota Supra A90 / A91 Chassis |
| Transmission Variants | 8-Speed Automatic (8AT) / 6-Speed Manual (6MT) |
| Market Variants | North America / Rest of World |
| Hub Material | 6061-T6 Billet Aluminum |
| Machining | 5-Axis CNC Precision Machined |
| Hub Finish | Black Anodized |
| Bus Technology | CAN Bus + LIN Bus (dual-bus integration) |
| Programmable Buttons | 8 Front-Facing Buttons + Dual Joystick Knobs |
| Onboard Profiles | 3 Fully Customizable Profiles |
| Shift Lights | RevLEDs CAN Bus Shift Lights (zero-delay, red flash at redline) |
| Connectivity | USB-C Port (firmware updates, MadtraceLAB configuration) |
| Software | MadtraceLAB |
| Display (Optional) | OLED Driver Information Display (DID) |
| Paddle Material (Optional) | 6061-T6 Billet Aluminum |
| Intended Use | Track, Off-Road, Racing, and Competition Only - Not for Street Use |
FAQ
Is this system legal for street use?
No. The Madtrace® GEN2 PODIUM LINE Racing Steering Wheel System is designed exclusively for off-road, track, racing, and competition use. It is not intended for any type of street use and cannot be guaranteed to comply with local government laws and regulations regarding required vehicle safety equipment. It is strictly prohibited to install this system on any motor vehicle subject to state safety inspection.
What happens to the factory airbag?
Installing this system requires removal of the factory airbag, which poses a significant safety risk if standard 3-point seat belts are used. Madtrace strongly requires customers to use a 6-point racing harness with a racing roll bar when running this system. This is a track-only build component - please plan your safety equipment accordingly.
Do I need to cut or splice any wiring?
No. The PODIUM LINE is a true plug-and-play system. The CAN bus integration module and harness kit connect directly to your factory electronics with no splicing or wiring modifications required. This makes installation cleaner, more reliable, and fully reversible.
What is the difference between the North America and Rest of World variants?
The NA and ROW variants are tuned for the specific vehicle electronics of their respective market Toyota Supra A90 models. While the features are identical, choosing the correct variant ensures full CAN bus and LIN bus compatibility with your specific car's factory systems. Always select the variant that matches your vehicle's market of origin.
Can I add paddle shifters to a manual transmission Supra?
Yes. Paddle shifters can be added to MT (manual transmission) vehicles to enable additional programmable functions. All four paddles on the dual paddle setup are fully programmable - for example, upper paddles can be mapped to turn signals while lower paddles handle gear shifting. This is a first-of-its-kind feature for OEM-based racing wheel systems.
What steering wheels are compatible with this hub system?
The PODIUM LINE hub is compatible with a range of aftermarket steering wheels. Optional add-ons include a MOMO Original Horn Cap Adapter (6x70mm) and a Nardi Type Steering Wheel Adapter (6x74mm). Sparco and MOMO wheels in various sizes and materials are also available as bundle options at checkout.
What does the optional OLED Driver Information Display (DID) do?
The optional OLED DID replaces the standard horn cap and adds a display that shows real-time telemetry data such as vehicle speed via CAN bus integration. It also allows on-the-fly button layout mapping and profile switching without needing to connect to a computer, and lets you adjust display brightness and RGB button colors directly from the cockpit.
