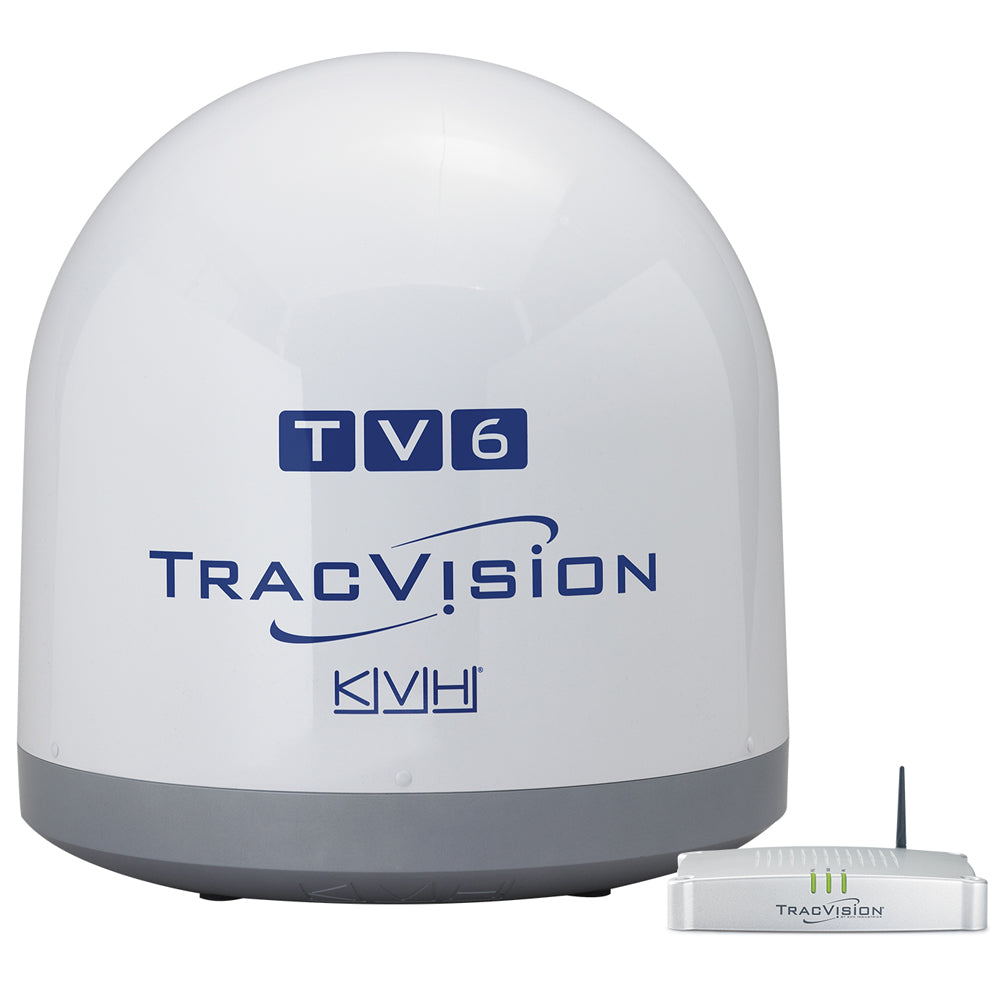

KVH TracVision TV6 Marine Satellite TV Antenna with IP-Enabled TV-Hub & Linear Universal Quad-Output LNB with Autoskew & GPS
Description
The KVH TracVision TV6 is a premium 60cm (24") marine satellite television antenna system engineered to deliver crystal-clear TV entertainment wherever your voyage takes you. Built around KVH's exclusive RingFire technology and an IP-enabled TracVision TV-Hub, this system provides access to DIRECTV U.S., DIRECTV Latin America, DISH Network, Bell TV, and circular and linear Ku-band services worldwide - making it one of the most versatile marine satellite systems available. The Linear Universal Quad-Output LNB with built-in autoskew and GPS takes the guesswork out of satellite acquisition, allowing you to get on air faster and stay locked on even in challenging offshore conditions.
Designed for extended offshore coverage and multi-room installations, the TracVision TV6 supports multiple receivers simultaneously so every passenger onboard can watch their preferred programming. The single-coaxial-cable architecture simplifies installation and retrofits, while the DVB-S2 compatible system and advanced inertial-based stabilized search ensure a stable, high-quality picture even in heavy seas. With 20 years of marine satellite leadership behind it, KVH has packed the TV6 with the technology serious boaters trust.
Key Features
- RingFire Antenna Technology: KVH's proprietary RingFire design fuses tuned parabolic dish antennas with custom dual-mode feed tubes and modified LNBs for signal strengths comparable to larger competitors' antennas - delivering wider coverage and better reception even in extreme weather.
- 60cm (24") Antenna Diameter: Ultra high-efficiency antenna provides extended geographic coverage, ideal for boats heading offshore for short or long voyages.
- Multi-Service Compatibility: Supports DIRECTV U.S., DIRECTV Latin America, DISH Network, Bell TV, and circular and linear Ku-band services worldwide for true global satellite access.
- IP-Enabled TracVision TV-Hub: Sleek belowdecks control unit with Ethernet and built-in Wi-Fi lets you monitor and manage system information from any smartphone, tablet, smart TV, or computer.
- Linear Universal Quad-Output LNB with Autoskew & GPS: Built-in GPS and autoskew ensure the fastest possible satellite acquisition and seamless tracking across different orbital positions.
- Integrated SWM-8 Multiswitch: The built-in Single Wire Multiswitch supports up to 8 DIRECTV receivers from a single coaxial cable run - ideal for large vessels with multiple viewing areas.
- DVB-S2 Compatible: Supports the latest satellite broadcast standards for access to HD and advanced programming services worldwide.
- Single-Cable Installation: One coaxial cable carries power, data, and video - dramatically simplifying installation and retrofits on existing vessels.
- HDTV Compatible: Full HDTV support on Ku-band services for a premium viewing experience onboard.
- Advanced Stabilized Tracking: Inertial-based stabilized search with high-performance tracking algorithms maintains a clear picture in heavy seas and rough weather.
- NMEA 0183/2000 Input: Accepts heading and GPS data to further accelerate satellite acquisition and optimize tracking performance.
- Built-In Worldwide Satellite Library: Pre-loaded satellite database makes switching between services and regions effortless during international voyages.
Shipping
Ships free! Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.
What's Included
- KVH TracVision TV6 60cm (24") Satellite Antenna Dome
- IP-Enabled TracVision TV-Hub (belowdecks unit)
- Linear Universal Quad-Output LNB with Autoskew and GPS
Why You'll Love It
The TracVision TV6 is trusted by offshore sailors and power boaters who refuse to sacrifice entertainment for adventure - and for good reason. KVH has spent over two decades refining marine satellite technology, and the TV6 represents the culmination of that expertise in a compact, powerful, and easy-to-use package. Whether you're anchored in a remote bay or cruising international waters, the TV6's RingFire technology ensures you stay connected to the programming you love. The IP-enabled TV-Hub puts full system control at your fingertips from any Wi-Fi device, so managing your satellite service is as intuitive as it gets. With robust multi-receiver support, HDTV capability, and world-class warranty coverage, the TracVision TV6 is the system serious mariners choose when they want the best in onboard entertainment - without compromise.
Product Specifications
View Product Specs
| Antenna Dish Diameter | 24" (60cm) |
|---|---|
| Dome Weight | 55 lbs |
| Box Dimensions | 31"H x 35"W x 36"L |
| Box Weight | 102 lbs |
| Voltage Input Range | 10-30 VDC |
| LNB Type | Linear Universal Quad-Output with Autoskew and GPS |
| Compatible Services | DIRECTV U.S., DIRECTV Latin America, DISH Network, Bell TV, Ku-band worldwide |
| Multiswitch | Integrated SWM-8 (supports up to 8 DIRECTV receivers) |
| Satellite Standard | DVB-S2 compatible |
| HDTV Compatible | Yes (Ku-band services only) |
| Network Interface | Ethernet and built-in Wi-Fi (TV-Hub) |
| NMEA Input | NMEA 0183/2000 |
| Service Coverage Note | LNB Kit Pack 72-0825 required for SKY Mexico service |
| UPC | 028327011851 |
Manuals & Guides
View All Documents
FAQ
What satellite services does the TracVision TV6 support?
The TracVision TV6 supports DIRECTV U.S., DIRECTV Latin America, DISH Network, Bell TV, and circular and linear Ku-band services worldwide. Note that SKY Mexico service requires an additional LNB Kit Pack (72-0825), sold separately.
How many TV receivers can this system support simultaneously?
The TracVision TV6's integrated Single Wire Multiswitch (SWM-8), built into the belowdecks TV-Hub, supports up to 8 DIRECTV receivers from a single coaxial cable. Additional output ports also support legacy receivers and expansion of SWM capability.
Can I monitor and control the system from my phone or tablet?
Yes. The IP-enabled TracVision TV-Hub features built-in Wi-Fi and an Ethernet connection, allowing you to access system status and controls from any smartphone, tablet, smart TV, or computer connected to the same network.
Does the TV6 work in rough seas?
Absolutely. The TracVision TV6 features advanced inertial-based stabilized search and high-performance tracking algorithms specifically designed to maintain a clear, stable satellite signal even in heavy seas and challenging weather conditions.
Is this system difficult to install?
The TracVision TV6 is designed for straightforward installation using a single coaxial cable that carries power, data, and video simultaneously. This single-cable architecture makes both new installations and retrofits on existing vessels significantly simpler compared to multi-cable systems. Professional marine electronics installation is still recommended for best results.
What is the warranty on the KVH TracVision TV6?
KVH provides world-class warranty coverage and support for the TracVision TV6. As an authorized KVH dealer, Omaha Sports and Games ensures your purchase is backed by the full manufacturer warranty. Contact us for specific warranty terms and duration details.
