KVH TracVision TV6 Marine Satellite TV Antenna - DirecTV Latin America
Description

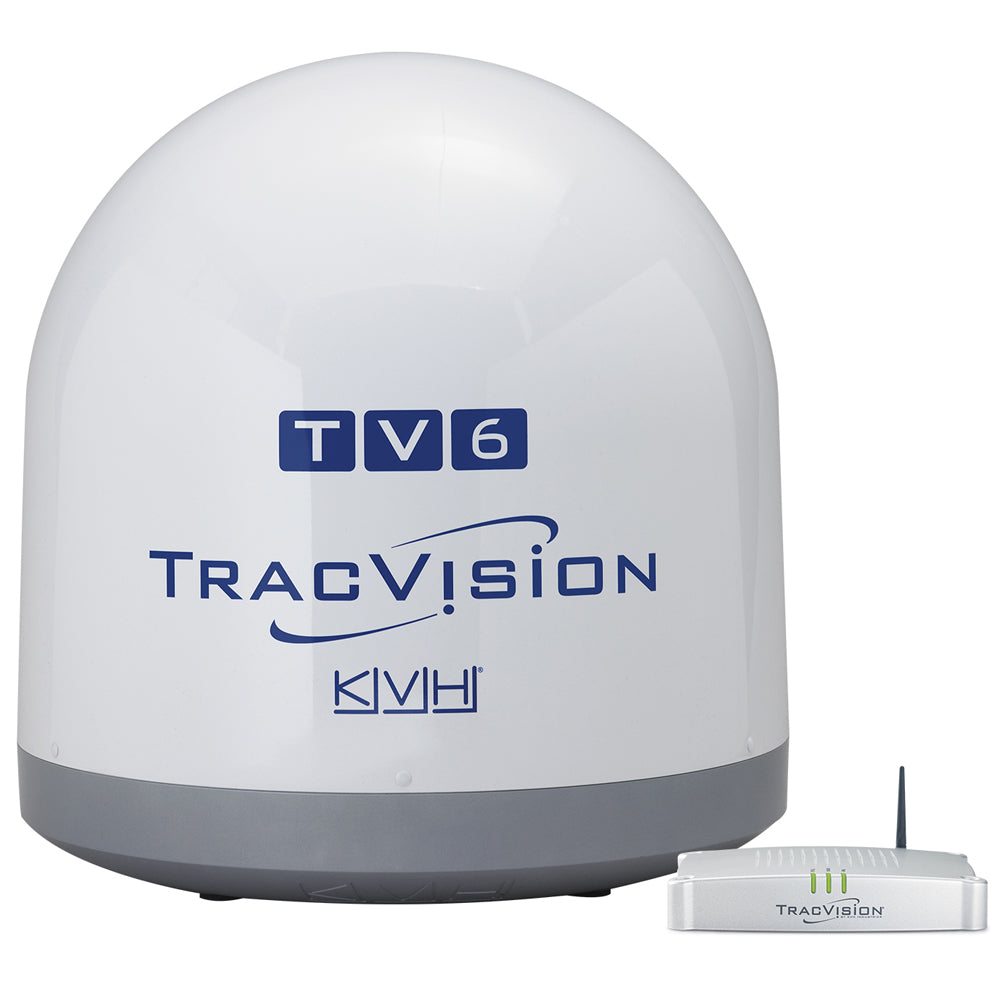

The KVH TracVision TV6 is a premium 60cm (24") marine satellite television antenna engineered to keep you connected to your favorite programming no matter where your voyages take you. Configured for DirecTV Latin America service, this system is the ideal choice for boaters cruising throughout Central and South America and the Caribbean. At the heart of the system is the IP-enabled TracVision TV-Hub - a sleek belowdecks control unit that makes setup, monitoring, and operation simple from any smartphone, tablet, or computer over Wi-Fi.
KVH has led the marine satellite TV industry for over 20 years, and the TracVision TV6 represents their most advanced technology in a mid-size dome. With exclusive RingFire antenna technology, DVB-S2 compatibility, and support for multiple onboard receivers, this system is purpose-built for offshore voyagers who refuse to sacrifice entertainment at sea.
Key Features
- 60cm (24") RingFire Antenna: Proprietary RingFire technology delivers signal strengths comparable to larger competing antennas, providing wider geographic coverage and better reception even in extreme weather.
- DirecTV Latin America Configuration: Pre-configured for DirecTV Latin America service - ideal for boats cruising the Caribbean, Central America, and South America.
- Tri-Americas LNB Option: Enables seamless TV reception throughout the Americas with a single system.
- IP-Enabled TracVision TV-Hub: Sleek belowdecks unit with Ethernet and built-in Wi-Fi lets you monitor and control the system from any smartphone, tablet, smart TV, or computer.
- Supports Up to 8 DIRECTV Receivers: Integrated Single Wire Multiswitch (SWM-8) built into the TV-Hub allows multiple receivers so everyone onboard watches what they want.
- Single Coaxial Cable Installation: One cable carries power, data, and video for simple installations and easy retrofits on existing vessels.
- DVB-S2 Compatible: Supports the latest satellite broadcast standard for high-quality HDTV reception (Ku-band services).
- Advanced Inertial-Based Stabilized Search: Fast satellite acquisition and high-performance tracking algorithms maintain a crystal-clear picture even in heavy seas.
- NMEA 0183/2000 Input: Accepts heading and GPS data for the fastest possible satellite acquisition.
- Built-In Worldwide Satellite Library: Automatic satellite switching makes it easy to access programming and local channels as you travel.
- Dome Weight: 55 lbs - robust yet manageable for most offshore vessel installations.
Shipping
Ships free! Please email us at service@omahasportsandgames.com for a delivery ETA or to confirm shipping details.
What's Included
- KVH TracVision TV6 antenna dome (DirecTV Latin America configuration)
- IP-enabled TracVision TV-Hub belowdecks unit
- Associated mounting and installation hardware
Why You'll Love It
The TracVision TV6 is trusted by sailors and cruisers who demand reliable satellite entertainment on extended offshore passages. KVH's 20-year leadership in marine satellite TV means you're investing in a system engineered with proven, field-tested technology that holds up to the rigors of life at sea. The RingFire antenna technology punches well above its weight class, giving you coverage that typically requires a much larger dome - a real advantage when deck space and weight matter. The intuitive TV-Hub puts full system control in the palm of your hand over Wi-Fi, eliminating the frustration of complicated setup procedures. Whether you're anchored off a remote coast or running offshore passages through Latin American waters, the TracVision TV6 keeps your crew entertained and connected. Backed by KVH's world-class warranty and support, this is an investment that will perform voyage after voyage.
Product Specifications
View Product Specs
| Antenna Dish Diameter | 24" (60cm) |
|---|---|
| Dome Weight | 55 lbs |
| Input Voltage Range | 10-30V DC |
| Service Coverage | DirecTV Latin America |
| LNB Type | Linear Universal Quad LNB with built-in GPS and autoskew |
| Supported Services | DIRECTV Latin America, DIRECTV U.S., DISH Network, Bell TV, circular and linear Ku-band worldwide |
| DVB-S2 Compatible | Yes |
| HDTV Compatible | Yes (Ku-band services only) |
| Max DIRECTV Receivers Supported | Up to 8 (via integrated SWM-8) |
| Connectivity | Ethernet, built-in Wi-Fi, NMEA 0183/2000 |
| Installation Cable | Single coaxial cable (power, data, and video) |
Manuals & Guides
View All Documents
FAQ
Is this system compatible with DirecTV service in the United States?
Yes. While this unit is configured for DirecTV Latin America, KVH notes that the TracVision TV6 also supports DIRECTV U.S., DISH Network, Bell TV, and circular and linear Ku-band services worldwide. The integrated TV-Hub handles automatic satellite switching as you travel between service coverage areas.
How many TVs can I connect to the TracVision TV6?
The TV-Hub includes an integrated Single Wire Multiswitch (SWM-8) that supports up to 8 DIRECTV receivers simultaneously. Two output ports also provide flexibility for legacy receivers and expanded SWM capability, making this system ideal for larger vessels with multiple cabins.
Do I need professional installation?
KVH designed the TracVision TV6 with simplified installation in mind - a single coaxial cable carries power, data, and video between the dome and the TV-Hub belowdecks. While many experienced boaters can manage the installation themselves, professional installation is recommended to ensure proper dome placement, cable routing, and system configuration for optimal performance.
How does the system perform in rough seas or bad weather?
The TracVision TV6 uses advanced inertial-based stabilized search and high-performance tracking algorithms specifically designed to maintain satellite lock in heavy seas. KVH's proprietary RingFire technology also provides stronger signals and better reception than competing antennas of similar size, helping maintain picture quality even in challenging weather conditions.
What is the warranty on this product?
KVH offers world-class warranty coverage and support on the TracVision TV6. For specific warranty terms and duration, please contact us at service@omahasportsandgames.com or refer to the included documentation. As an authorized KVH dealer, all purchases are backed by full manufacturer warranty support.
